M5Stack Timer Camera Fisheye (OV3660)
- High-Resolution Image Sensor: Equipped with an OV3660 image sensor, supporting up to 3MP resolution for clear image capture.
- Wide-Angle Fisheye Lens: Integrated fisheye lens provides a wide field of view, ideal for surveillance, videography, and creative projects.
- Timer Capture Function: Supports timer-based shooting and time-lapse photography for automatic image capture.
- 8MB PSRAM Support: Features 8MB of PSRAM, enhancing image processing capabilities for real-time image processing and efficient operation.
€27,90
Shipping Policy
Thank you for choosing SharingWin! We’re committed to offering you a smooth and reliable shopping experience. Please review the following policy to understand how we handle order processing, shipping, and support.
📍 Shipping Zones
We provide worldwide shipping, with a focus on Europe, North America, Asia, and Australia.
Please note: We do not ship to P.O. boxes or APO/FPO addresses.
🚚 Shipping Carriers
All orders are shipped from our fulfillment center in Shenzhen, China, using trusted carriers such as YunExpress, DHL, and 4PX, ensuring secure and timely delivery.
💰 Shipping Costs
We offer free worldwide shipping on all orders over €99.
🏷️ Tax & Customs Duties
For personal orders, customs duties are prepaid by our logistics partner—no extra payment required upon delivery.
For business customers needing VAT invoices, please contact us at info@sharingwin.com before placing your order. We do not cover customs duties for VAT-invoiced orders, but will offer special discounts — get in touch for more details.
🕒 Order Processing Time
Orders are processed, verified, and packed within 2-5 business days (excluding weekends and holidays).
During peak seasons or sales events, processing may take up to 7 business days. We’ll notify you via email if a significant delay occurs.
⏱️ Estimated Delivery Time (After Processing)
| Region | Estimated Delivery (Business Days) |
|---|---|
| Asia | 2–5 |
| Western EU | 7–10 |
| Eastern EU | 7–10 |
| North America | 5–8 |
| South America | 7–15 |
| Australia | 5–8 |
| Africa | 5–15 |
📦 Order Tracking & Support
A shipping confirmation email with a tracking number will be sent once your order has been shipped.
You can track your order through the provided link or in your account dashboard.
For any inquiries or assistance, feel free to reach out to our support team:
📧 Email: info@sharingwin.com
Thank you for shopping at SharingWin — delivering smart electronics to your doorstep, wherever you are! 🌍
For Engineers Who Love Open Source Hardware
Hello, fellow geeks!
I’m an embedded systems engineer with a degree in IoT Engineering, and I’ve been deeply involved in AIoT product development for years. I’ve participated in several B2B projects from the ground up — covering open-source hardware, system architecture, hardware selection, and solution implementation.
Through this journey, I’ve come across all kinds of AIoT products.
Some are smart, efficient, and elegantly designed; others are overcomplicated, packed with features that don’t solve real problems.
Over time, I’ve started focusing on one simple but important question:
Does this product truly solve the user’s core need?
Not just whether it’s ‘cool’ or uses the latest tech.
I firmly believe that great products don’t have to be complex or expensive — they just need to solve problems clearly and effectively, at a reasonable cost.
That’s why I created this site:
A space where engineers can connect, share, and learn from each other.
Here, I share great products and smart solutions I’ve encountered during projects — and try to explain why they’re good.
This isn’t about marketing. It’s about real experience, honest judgment, and technical clarity.
This platform is called sharingwin, because I believe in shared success.
You’ll find high-value, practical tools and products here — to help you save time on selection, avoid unnecessary trial and error, and focus on what works.
As for me, I hope to use this space to connect with like-minded engineers, exchange ideas, and — to be honest — maybe earn a little on the side too. That’s part of the fun. 😄
To all the makers and creators who’ve supported me along the way — thank you.
Due to some heavy personal projects recently, I haven’t been able to update or engage as frequently as I’d like — and for that, I apologize.
Moving forward, I’ll continue to optimize product content and be more active in sharing useful insights.
Your trust and support mean everything.
You’re the reason I believe this platform matters.
If you have any great products or ideas you think deserve more visibility, feel free to reach out.
I’m happy to help with sourcing, connect to the right supply chain, or feature it here so more engineers can see its value.
A single person has limited power —
but co-creation multiplies value.
If you believe in that too, let’s build something useful and meaningful — together.

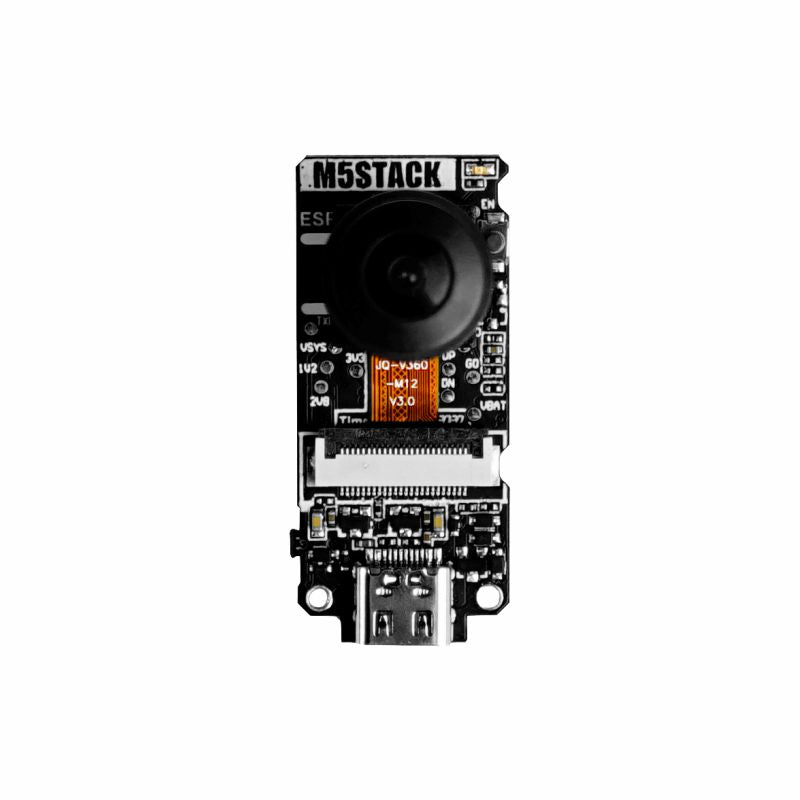

The M5Stack Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0 megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048×1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled. The module supports Wi-Fi image transfer and USB port debugging, and the HY2.0-4P output on the bottom can be used to expand other peripherals. The on-board LED status indicator and reset button facilitate program development and debugging. In terms of application, M5Stack provides a number of simple and efficient application development methods and interfaces for the TimerCAM series, making it easy for users to use and develop their applications. (including PC/Mobile photo shooting APP, cloud image HTTP interface for timer shooting, cloud AI recognition interface (not online yet), etc.)
Features
- Design based on esp32
- Wi-Fi image transmission
- Timed sleep wake up
- Status indicator
- Ultra low power design
- Built-in 270mAh battery
- Programming platform:ESP-IDF/Arduino/UIFlow
Applications
- Take pictures regularly
- Remote video monitoring
Video
Learn
Examples
Arduino
ESP-IDF
Firmware
You can download and burn firmware with M5Burner
Tutorial
- Camera-Tool
- UIFlow – Media Trans
- UIFlow – UART/TIMER
- Arduino IDE
- TimerFolderPusher
- Timer Amazon S3 FolderPusher
The low-power power management solution adopted by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the Reset button on the PCB.When using external power supply, the device will remain powered on.
Driver Installation
TimerCAM may not work without drive in some systems. Users can manually install FTDI Driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).
FISH EYE LENS Comparison Normal LENS
Specification
| Resources | Parameter |
|---|---|
| PSRAM | 8MB |
| Flash | 4M |
| Battery | 270mAh |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | 8-/10-Bit RAW, RGB and YCbCr output, compression. |
| DFOV | 120° |
| Net weight | 21g |
| Gross weight | 44g |
| Product Size | 48*24*22.6mm |
| Package Size | 75*45*30mm |

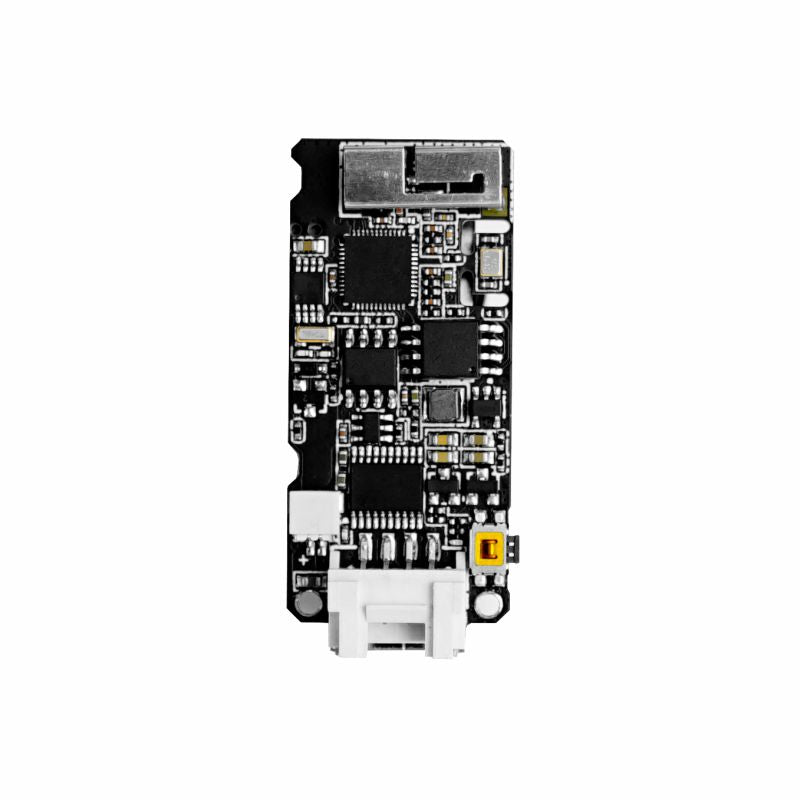

Hardware Overview
PinMap
Camera Interface PinMap
| Interface | Camera Pin | TimerCamera |
|---|---|---|
| SCCB Clock | SIOC | IO23 |
| SCCB Data | SIOD | IO25 |
| System Clock | XCLK | IO27 |
| Vertical Sync | VSYNC | IO22 |
| Horizontal Reference | HREF | IO26 |
| Pixel Clock | PCLK | IO21 |
| Pixel Data Bit 0 | D0 | IO32 |
| Pixel Data Bit 1 | D1 | IO35 |
| Pixel Data Bit 2 | D2 | IO34 |
| Pixel Data Bit 3 | D3 | IO5 |
| Pixel Data Bit 4 | D4 | IO39 |
| Pixel Data Bit 5 | D5 | IO18 |
| Pixel Data Bit 6 | D6 | IO36 |
| Pixel Data Bit 7 | D7 | IO19 |
| Camera Reset | RESET | IO15 |
| Camera Power Down | PWDN | -1 |
| Power Supply 3.3V | 3V3 | 3V3 |
| Ground | GND | GND |
HY2.0-4P
| HY2.0-4P | TimerCamera |
|---|---|
| SCL | G13 |
| SDA | G4 |
| 5V | 5V |
| GND | GND |
LED
| LED | TimerCamera |
|---|---|
| LED_Pin | G2 |
BUTTON
| BUTTON | TimerCamera |
|---|---|
| BUTTON | G37 |
BM8563
| BM8563 | TimerCamera |
|---|---|
| SCL | G14 |
| SDA | G12 |
BAT
| BAT | TimerCamera |
|---|---|
| BAT_ADC_Pin | G38 |
| BAT_HOLD_Pin | G33 |

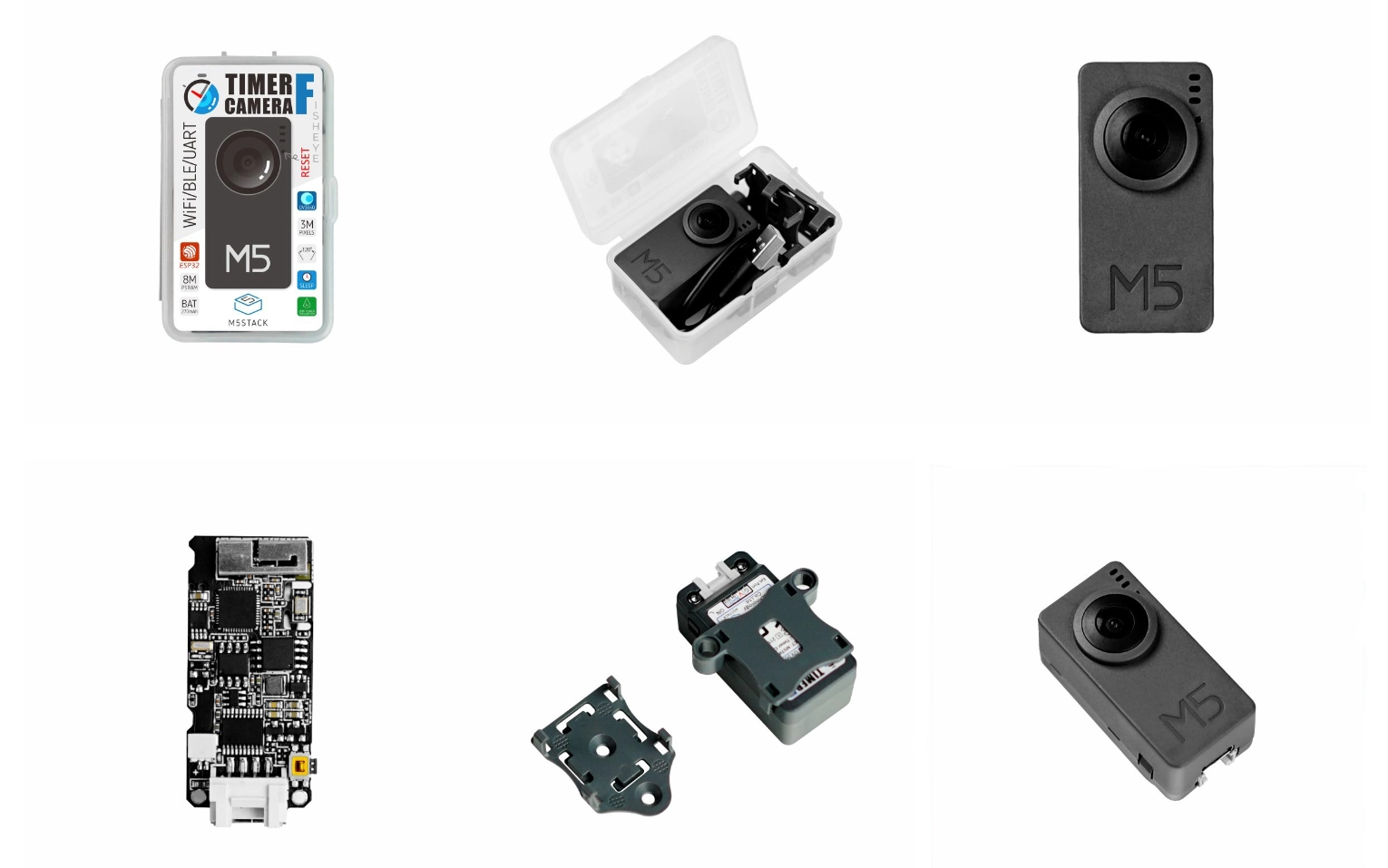

Include
- 1x Timer Camera F
- 1x LEGO Adapter
- 1x Wall-1515
- 1x Type-C USB(20cm)
