M5Stack CameraX Module (OV2640)

SKU: MCW-005
  • ESP32 Chip: Powered by the ESP32 processor, supporting Wi-Fi and Bluetooth, ideal for remote monitoring and IoT applications.
  • High-Definition Camera Module: Equipped with a high-resolution camera, capable of capturing clear images and video.
  • Wi-Fi Image Transmission: Supports real-time image and video transmission via Wi-Fi, ideal for remote monitoring and data transfer.
  • Low-Power Design: Features deep sleep mode to reduce power consumption, ideal for long-term monitoring projects.

17,90

Thank you for choosing SharingWin! We’re committed to offering you a smooth and reliable shopping experience. Please review the following policy to understand how we handle order processing, shipping, and support.



📍 Shipping Zones

We provide worldwide shipping, with a focus on Europe, North America, Asia, and Australia.

Please note: We do not ship to P.O. boxes or APO/FPO addresses.

🚚 Shipping Carriers

All orders are shipped from our fulfillment center in Shenzhen, China, using trusted carriers such as YunExpressDHL,  and 4PX, ensuring secure and timely delivery.



💰 Shipping Costs

We offer free worldwide shipping on all orders over €99.



🏷️ Tax & Customs Duties

  • For personal orders, customs duties are prepaid by our logistics partner—no extra payment required upon delivery.

  • For business customers needing VAT invoices, please contact us at info@sharingwin.com before placing your order. We do not cover customs duties for VAT-invoiced orders, but will offer special discounts — get in touch for more details.



🕒 Order Processing Time

Orders are processed, verified, and packed within 2-5 business days (excluding weekends and holidays).
During peak seasons or sales events, processing may take up to 7 business days. We’ll notify you via email if a significant delay occurs.



⏱️ Estimated Delivery Time (After Processing)

RegionEstimated Delivery (Business Days)
Asia2–5
Western EU7–10
Eastern EU7–10
North America5–8
South America7–15
Australia5–8
Africa5–15



📦 Order Tracking & Support

  • shipping confirmation email with a tracking number will be sent once your order has been shipped.

  • You can track your order through the provided link or in your account dashboard.

  • For any inquiries or assistance, feel free to reach out to our support team:

📧 Email: info@sharingwin.com

Thank you for shopping at SharingWin — delivering smart electronics to your doorstep, wherever you are! 🌍

Hello, fellow geeks!

I’m an embedded systems engineer with a degree in IoT Engineering, and I’ve been deeply involved in AIoT product development for years. I’ve participated in several B2B projects from the ground up — covering open-source hardwaresystem architecturehardware selection, and solution implementation.

Through this journey, I’ve come across all kinds of AIoT products.
Some are smart, efficient, and elegantly designed; others are overcomplicated, packed with features that don’t solve real problems.
Over time, I’ve started focusing on one simple but important question:

Does this product truly solve the user’s core need?
Not just whether it’s ‘cool’ or uses the latest tech.

I firmly believe that great products don’t have to be complex or expensive — they just need to solve problems clearly and effectively, at a reasonable cost.

That’s why I created this site:
A space where engineers can connect, share, and learn from each other.

Here, I share great products and smart solutions I’ve encountered during projects — and try to explain why they’re good.
This isn’t about marketing. It’s about real experiencehonest judgment, and technical clarity.

This platform is called sharingwin, because I believe in shared success.

You’ll find high-value, practical tools and products here — to help you save time on selectionavoid unnecessary trial and error, and focus on what works.

As for me, I hope to use this space to connect with like-minded engineersexchange ideas, and — to be honest — maybe earn a little on the side too. That’s part of the fun. 😄



To all the makers and creators who’ve supported me along the way — thank you.
Due to some heavy personal projects recently, I haven’t been able to update or engage as frequently as I’d like — and for that, I apologize.
Moving forward, I’ll continue to optimize product content and be more active in sharing useful insights.

Your trust and support mean everything.
You’re the reason I believe this platform matters.



If you have any great products or ideas you think deserve more visibility, feel free to reach out.
I’m happy to help with sourcingconnect to the right supply chain, or feature it here so more engineers can see its value.

A single person has limited power —
but co-creation multiplies value.

If you believe in that too, let’s build something useful and meaningful — together.

M5Stack CameraX is a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640).M5Camera offers plenty of storage, with an extra 4 Mbyte PSRAM. It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image is size 600*800, since it’s 2MP, you sure can optimize the software to output the maximum size of photos.

what this software can do?

  • Power the board via USB type-C or GROVE
  • Use your phone to Wi-Fi scan an AP name start with ‘m5stack-‘ and click to connect this AP.
  • Open up web browser on your phone and visit 192.168.4.1
  • Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

  • CP2104 USB-to-TTL converter
  • ESP32-WROVER (PCB Antenna)
  • WIFI image transmission
  • OV2640 sensor

Learn

Examples

Firmware

Arduino

Code

Source Code

Specification

Resources Parameter
RAM 4MB
Flash 4M
Image Sensor OV2640
Maximum resolution 2M pixel
Output format YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data
FOV 65°
CCD Size 1/4 inch
Net weight 14g
Gross weight 38g
Product Size 24*48*13mm
Package Size 75*45*30mm

Hardware Overview

PinMap

Camera Interface PinMap

*Interface* *Camera Pin* *M5Camera(B model)*
SCCB Clock SIOC IO23
SCCB Data SIOD IO22
System Clock XCLK IO27
Vertical Sync VSYNC IO25
Horizontal Reference HREF IO26
Pixel Clock PCLK IO21
Pixel Data Bit 0 D2 IO32
Pixel Data Bit 1 D3 IO35
Pixel Data Bit 2 D4 IO34
Pixel Data Bit 3 D5 IO5
Pixel Data Bit 4 D6 IO39
Pixel Data Bit 5 D7 IO18
Pixel Data Bit 6 D8 IO36
Pixel Data Bit 7 D9 IO19
Camera Reset RESET IO15
Camera Power Down PWDN *see Note 1*
Power Supply 3.3V 3V3 3V3
Ground GND GND

GROVE Interface

*Grove* *M5Camera*
SCL IO13
SDA IO4
5V 5V
GND GND

LED Interface

LED *M5Camera*
LED_Pin IO14

The following tables are Reserved Chip Interfaces

BME280 Interface

*It’s I2C address is 0x76.*

*BME280* *M5Camera*
SCL IO23
SDA IO22

MPU6050 Interface

*It’s I2C address is 0x68.*

*MPU6050* *M5Camera*
SCL IO23
SDA IO22

MIC(SPM1423) Interface

*MIC(SPM1423)* *M5Camera*
SCL IO2
SDA IO4

NOTE:

  1. Camera Power Down pin does not need to be connected to ESP32 GPIO. Instead it may be pulled down to ground with 10 kOhm resistor.

View M5 camera series/product differences

Include

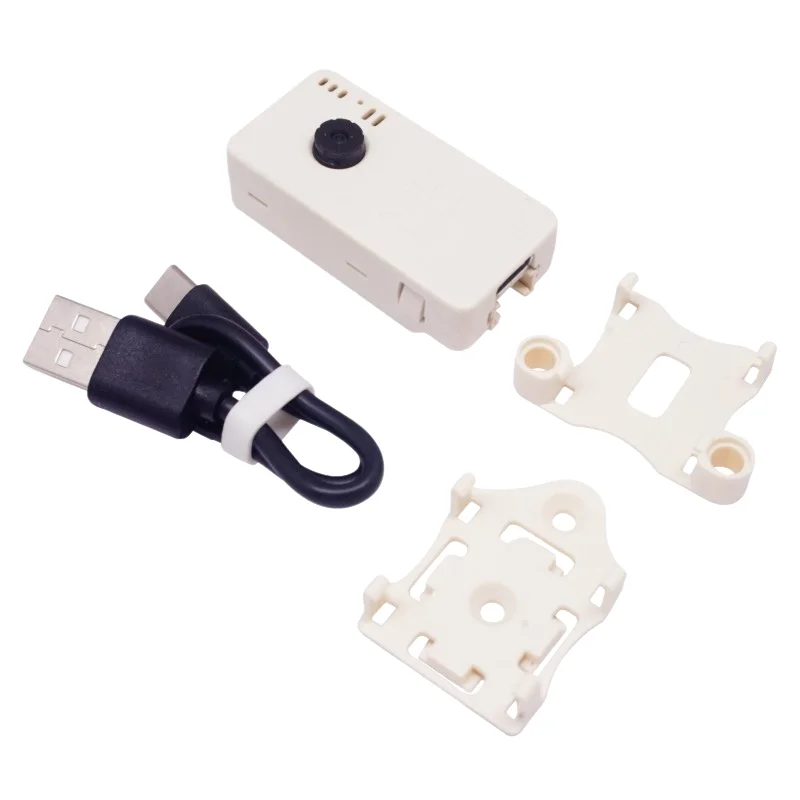

  • 1x M5CameraX
  • 1x LEGO Adapter
  • 1x Wall-1515
  • 1x Type-C USB(20cm)

Documents

EasyLoader

download EasyLoader

Schematic

Power circuit

Chip peripheral circuit

USB to serial port part of the circuit
