This Buck Converter DC-DC step-down power supply module is designed for efficient voltage regulation with a wide input voltage range and multiple output channels. It offers high conversion efficiency and precise output voltage adjustments, making it ideal for various applications where stable and adjustable DC power is required. The module is equipped with reverse polarity protection (in the dual-channel version) and is designed to operate within a broad temperature range, ensuring reliable performance in diverse environmental conditions.

Features:

• Wide Input Range: DC 5.0-32V input voltage for versatility across different power sources.
• Adjustable Output Voltage: DC 0.8-30V, with precise voltage control via a potentiometer.
• High Output Current: 5A maximum output per channel, ensuring sufficient power for demanding loads.
• High Efficiency: Conversion efficiency greater than 90%, minimizing energy loss.
• Dual and Four Channel Options: Available in dual-channel or four-channel configurations to power multiple devices.
• Reverse Polarity Protection (Dual-channel only): Safeguards against incorrect power connection.

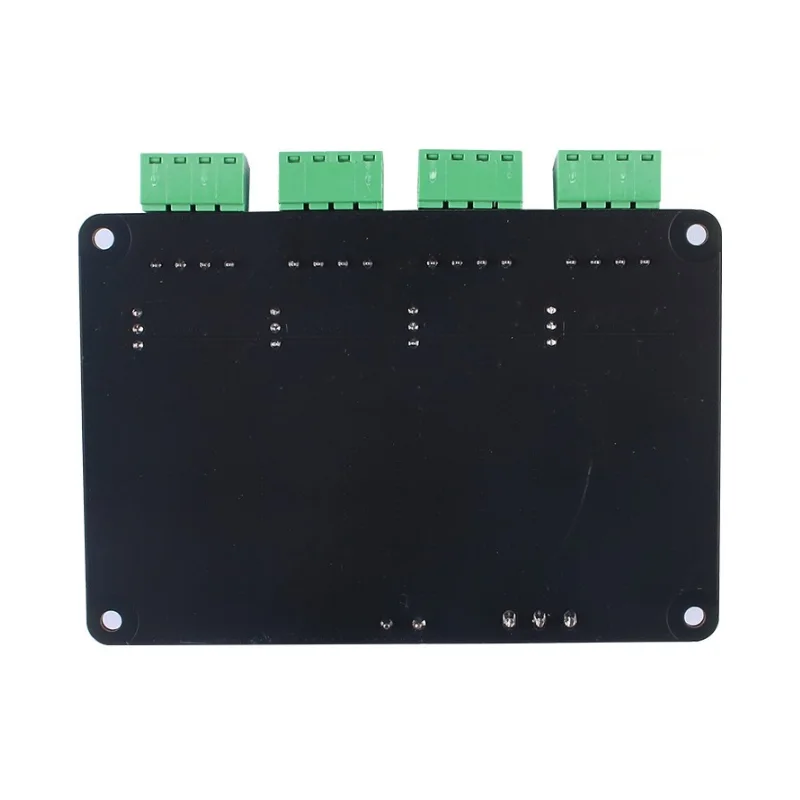

• Compact Design: Dual-channel size: 60x60x12mm; Four-channel size: 100x68x12.5mm.
• Wide Temperature Range: Operational range from -25°C to +85°C, suitable for various environments.

Applications:

• Embedded Systems: Ideal for powering embedded development projects requiring multiple voltage rails.
• Robotics: Suitable for providing power to various subsystems in robotics applications.
• Power Supply for Sensors: Powers sensors, microcontrollers, and other electronic devices in scientific and industrial applications.
• Battery Charging Systems: Can be used in charging circuits requiring precise and adjustable voltage regulation.

Notes:

• The potentiometer adjusts the output voltage by turning clockwise to increase and counterclockwise to decrease the voltage.
• Since the potentiometer is a multi-turn precision potentiometer, it is recommended to turn it counterclockwise several times during the first use; otherwise, the adjustment effect will not be noticeable, and the output voltage may not change!
• The module is a step-down power supply, so the input voltage must be higher than the output voltage by at least 1.2V!
• The maximum output current per channel is 5A. It is recommended to keep the continuous current around 3A or add auxiliary heat dissipation measures.
