What Can You Build with the M5Stack AtomS3R AI Chatbot Kit?
Are you looking for a compact yet powerful voice development platform for your next smart home or AI project? The M5Stack AtomS3R AI Chatbot Kit might be exactly what you need. In this guide, we’ll walk you through what this kit offers, how to get started step-by-step, and why it’s one of the most accessible tools for voice AI development in 2025.
Â
Â
What is the M5Stack AtomS3R AI Chatbot Kit?

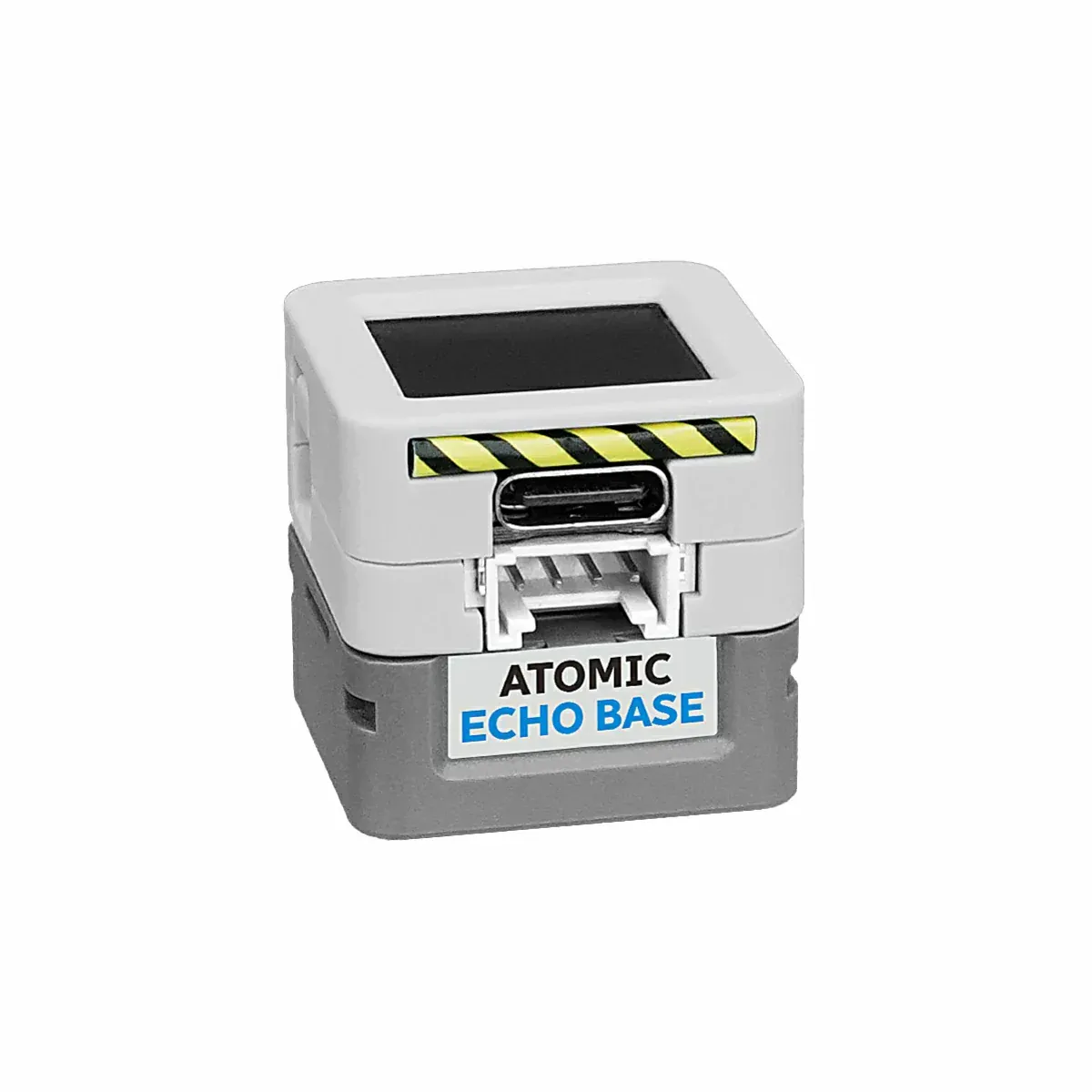

The M5Stack AtomS3R AI Chatbot Kit is a complete voice interaction development platform powered by the ESP32-S3 chip. It combines a compact AtomS3R controller with the Atomic Echo Base, enabling real-time voice recognition, AI chatbot interaction, and cloud-edge collaboration. Whether you’re building a voice assistant, smart home interface, or AI-controlled IoT device, this kit delivers performance with ease.
Key Features
- ESP32-S3-based controller with 8MB Flash and 8MB PSRAM
- Full-duplex I2S audio with 24-bit codec
- MEMS digital microphone and Class D speaker amplifier
- 9-axis IMU sensor (BMI270 + BMM150)
- Infrared emission capability
- Support for XiaoZhi, OpenAI, and Volcengine voice assistants
- Edge AI inference and model deployment
- GPIO expansion for sensors or actuators
- Supported platforms: ESP-IDF, PlatformIO, Arduino, UiFlow2
How to Get Started with the M5Stack AtomS3R AI Chatbot Kit
Step 1: Hardware Assembly
- Unbox the kit, which includes:
- 1 × AtomS3R controller
- 1 × Atomic Echo Base
- Align the AtomS3R with the connector slot on the Echo Base.
- Press it in firmly but gently — no soldering is required. The magnetic base ensures secure attachment.
- Connect the module to your PC using a USB-C data cable.
Step 2: Install the Development Environment
Depending on your coding experience, choose from:
- For Beginners:
- Install UiFlow2 from docs.m5stack.com. It’s a block-based graphical tool perfect for learning.
- Flash UiFlow2 firmware to AtomS3R using M5Burner.
- For Advanced Users:
- Install Arduino IDE or PlatformIO.
- Install the ESP32 Board Support Package.
- Add M5Stack libraries (
M5Unified,M5AtomS3, etc.). - Select the board as ‘ESP32S3 Dev Module’.
- For Professionals:
- Set up ESP-IDF with the S3 toolchain for full control and performance.
Step 3: Load a Demo or Start Coding
- UiFlow2 Approach (Recommended for Starters):
- Open UiFlow2 Web IDE.
- Connect to your device via COM port.
- Drag in blocks like:
- ‘Audio > Wake word’
- ‘AI > Text response’
- ‘Device > IR send’
- Click ‘Run’ to deploy.
- Arduino Example:
- Try the ‘Echo Example’ to test mic and speaker.
- Add cloud API like OpenAI to build an AI chatbot.
- Use
Serial.print()for debugging.
Step 4: Voice Assistant Integration
- XiaoZhi: Great for Chinese voice command processing.
- OpenAI Voice Assistant: Call ChatGPT APIs via Wi-Fi for interactive conversations.
- Volcengine: Offers natural speech understanding and wake word features.
You can customize wake words, trigger commands, or sync with cloud NLP models. Use Wi-Fi for hybrid edge-cloud voice processing.
Step 5: Expand Functionality (Optional)
- Connect sensors like temperature, PIR, or light via Grove/expansion pins.
- Use infrared features to control AC or TV.
- Deploy models trained in TensorFlow Lite for microcontrollers directly on the AtomS3R.
Why Choose the AtomS3R AI Chatbot Kit?
- Compact and All-in-One A small form factor with full AI audio processing, sensors, and connectivity.
- Voice + IR Control Combo Perfect for smart home automation — uses voice to trigger IR signals.
- Modular Ecosystem Compatible with M5Stack’s modules and add-ons, making it easy to scale.
Applications and Use Cases
- Smart home voice control hubs
- AI-powered vending/kiosk systems
- Voice-controlled robotics
- Educational AI projects
- Voice chatbots in embedded systems
Â
Where to Buy the M5Stack AtomS3R AI Chatbot Kit?
Get your original M5Stack AtomS3R AI Chatbot Kit from SharingWin: 👉 https://sharingwin.com/product/m5stack-atoms3r-ai-chatbot-kit/
Â
The M5Stack AtomS3R AI Chatbot Kit is not just a piece of hardware — it’s an AI voice development gateway. Whether you’re a hobbyist, educator, or engineer, it offers a fast, powerful, and scalable solution for bringing intelligent voice interfaces to your projects.
