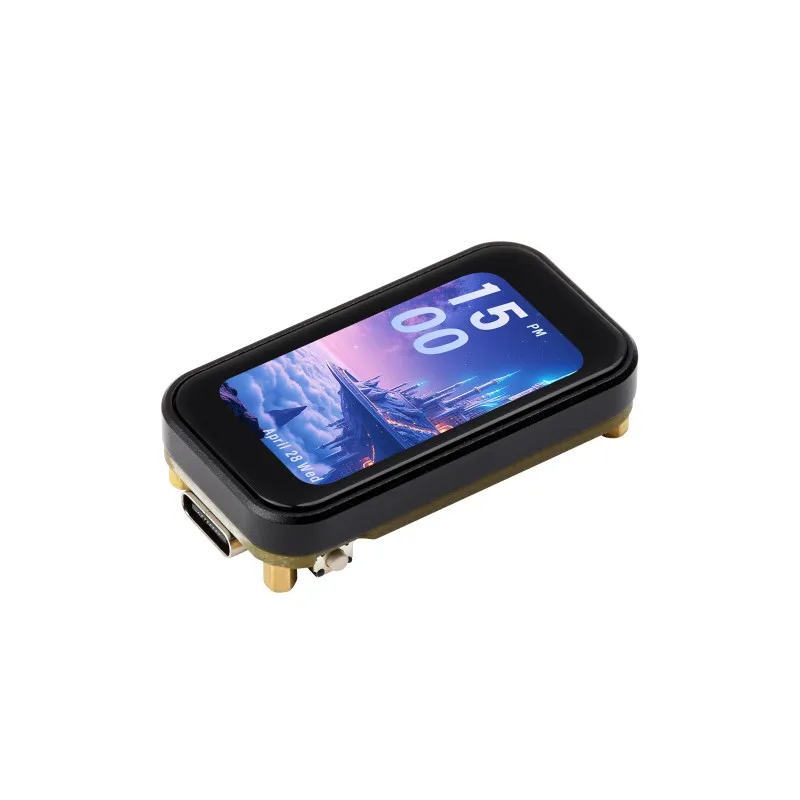

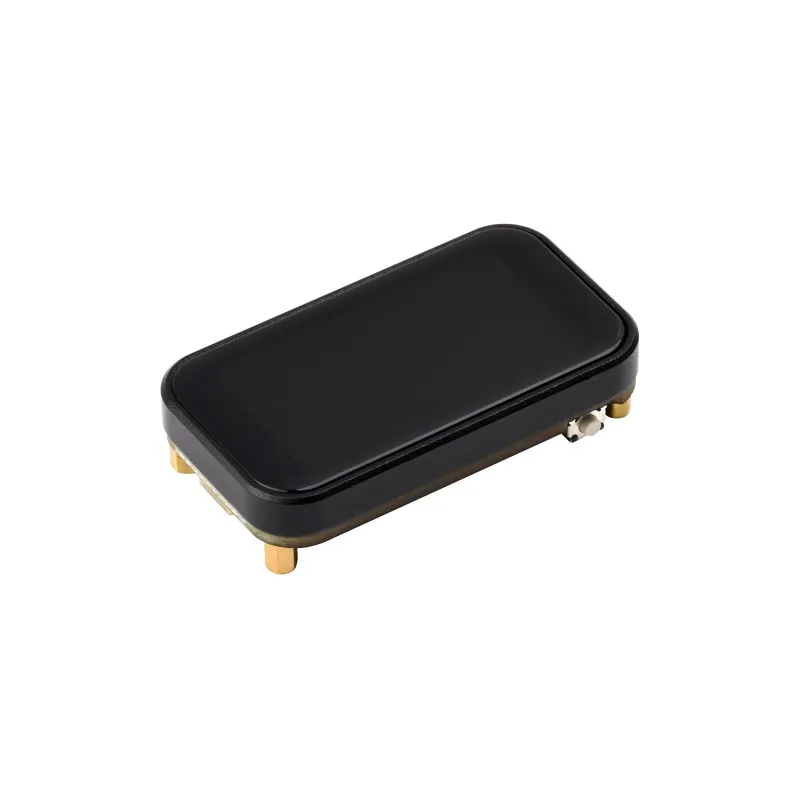

Waveshare ESP32-C6 1.47-inch Touch Display Dev Board, 172×320 Resolution, 262K Display Color
-
Advanced Wireless Connectivity: Supports 2.4GHz Wi-Fi 6 and Bluetooth 5 (BLE + Mesh), ideal for high-performance, low-latency IoT applications.
-
Powerful Dual-Core RISC-V Processor: Combines a high-speed core (up to 160 MHz) with a low-power core for efficient AIoT and HMI tasks.
-

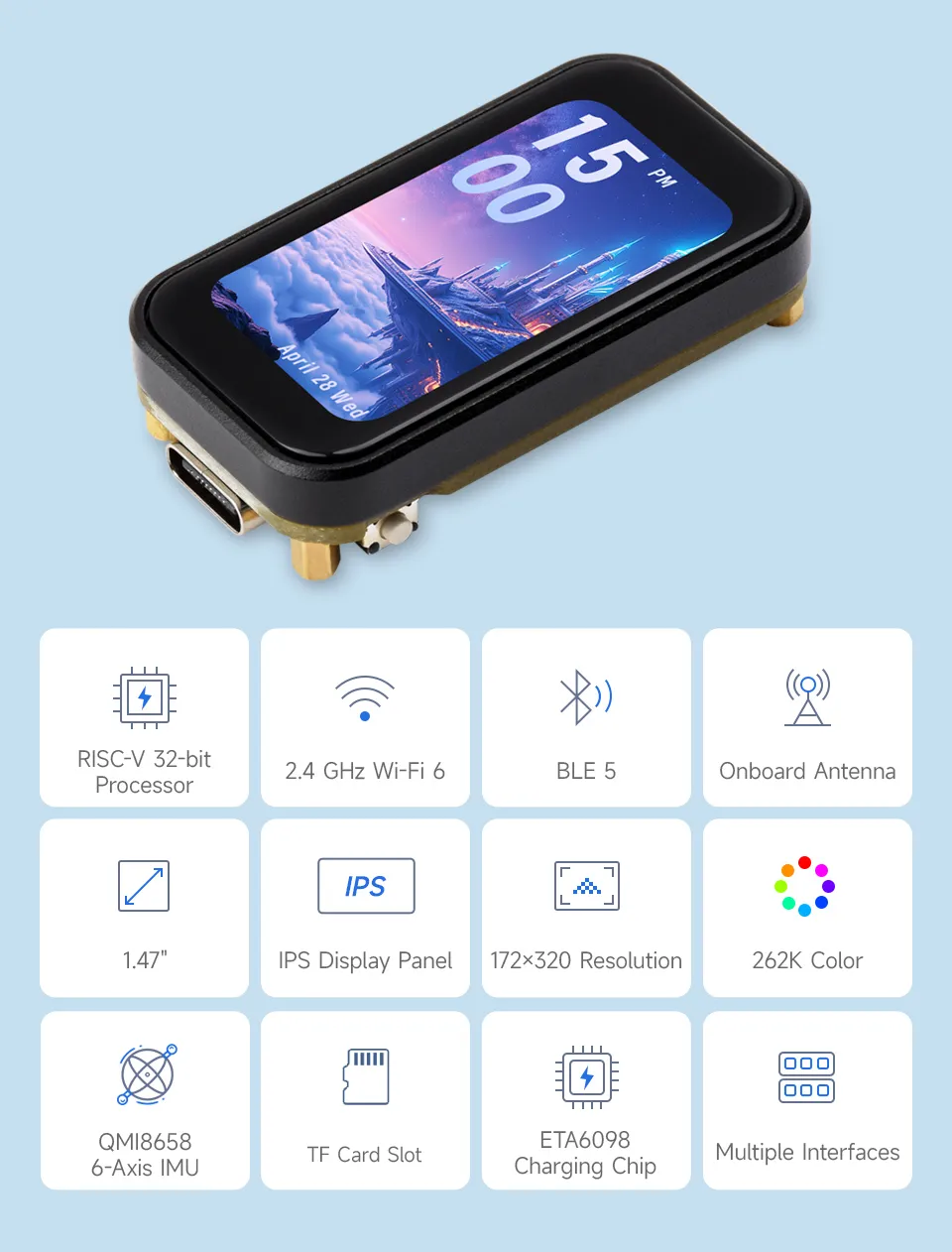

High-Resolution Touch Display: Features a 1.47-inch capacitive LCD (172×320 resolution, 262K colors), perfect for interactive GUI development using LVGL.
€24,00 – €25,00
Shipping Policy
Thank you for choosing SharingWin! We’re committed to offering you a smooth and reliable shopping experience. Please review the following policy to understand how we handle order processing, shipping, and support.
📍 Shipping Zones
We provide worldwide shipping, with a focus on Europe, North America, Asia, and Australia.
Please note: We do not ship to P.O. boxes or APO/FPO addresses.
🚚 Shipping Carriers
All orders are shipped from our fulfillment center in Shenzhen, China, using trusted carriers such as YunExpress, DHL, and 4PX, ensuring secure and timely delivery.
💰 Shipping Costs
We offer free worldwide shipping on all orders over €99.
🏷️ Tax & Customs Duties
For personal orders, customs duties are prepaid by our logistics partner—no extra payment required upon delivery.
For business customers needing VAT invoices, please contact us at info@sharingwin.com before placing your order. We do not cover customs duties for VAT-invoiced orders, but will offer special discounts — get in touch for more details.
🕒 Order Processing Time
Orders are processed, verified, and packed within 2-5 business days (excluding weekends and holidays).
During peak seasons or sales events, processing may take up to 7 business days. We’ll notify you via email if a significant delay occurs.
⏱️ Estimated Delivery Time (After Processing)
| Region | Estimated Delivery (Business Days) |
|---|---|
| Asia | 2–5 |
| Western EU | 7–10 |
| Eastern EU | 7–10 |
| North America | 5–8 |
| South America | 7–15 |
| Australia | 5–8 |
| Africa | 5–15 |
📦 Order Tracking & Support
A shipping confirmation email with a tracking number will be sent once your order has been shipped.
You can track your order through the provided link or in your account dashboard.
For any inquiries or assistance, feel free to reach out to our support team:
📧 Email: info@sharingwin.com
Thank you for shopping at SharingWin — delivering smart electronics to your doorstep, wherever you are! 🌍
For Engineers Who Love Open Source Hardware
Hello, fellow geeks!
I’m an embedded systems engineer with a degree in IoT Engineering, and I’ve been deeply involved in AIoT product development for years. I’ve participated in several B2B projects from the ground up — covering open-source hardware, system architecture, hardware selection, and solution implementation.
Through this journey, I’ve come across all kinds of AIoT products.
Some are smart, efficient, and elegantly designed; others are overcomplicated, packed with features that don’t solve real problems.
Over time, I’ve started focusing on one simple but important question:
Does this product truly solve the user’s core need?
Not just whether it’s ‘cool’ or uses the latest tech.
I firmly believe that great products don’t have to be complex or expensive — they just need to solve problems clearly and effectively, at a reasonable cost.
That’s why I created this site:
A space where engineers can connect, share, and learn from each other.
Here, I share great products and smart solutions I’ve encountered during projects — and try to explain why they’re good.
This isn’t about marketing. It’s about real experience, honest judgment, and technical clarity.
This platform is called sharingwin, because I believe in shared success.
You’ll find high-value, practical tools and products here — to help you save time on selection, avoid unnecessary trial and error, and focus on what works.
As for me, I hope to use this space to connect with like-minded engineers, exchange ideas, and — to be honest — maybe earn a little on the side too. That’s part of the fun. 😄
To all the makers and creators who’ve supported me along the way — thank you.
Due to some heavy personal projects recently, I haven’t been able to update or engage as frequently as I’d like — and for that, I apologize.
Moving forward, I’ll continue to optimize product content and be more active in sharing useful insights.
Your trust and support mean everything.
You’re the reason I believe this platform matters.
If you have any great products or ideas you think deserve more visibility, feel free to reach out.
I’m happy to help with sourcing, connect to the right supply chain, or feature it here so more engineers can see its value.
A single person has limited power —
but co-creation multiplies value.
If you believe in that too, let’s build something useful and meaningful — together.
The Waveshare ESP32-C6 1.47-inch Touch Display Dev Board Touch Display Dev Board is a compact and powerful development board featuring the ESP32-C6FH8 chip. With integrated 2.4GHz Wi-Fi 6 and Bluetooth 5 LE, this board is ideal for high-performance IoT and HMI (Human-Machine Interface) applications. It boasts a vivid 1.47-inch 172×320 capacitive IPS touchscreen, supports LVGL GUI frameworks, and includes 8MB Flash, TF card slot, and multiple I/O interfaces. Powered by dual RISC-V processors, it offers flexible clock control and ultra-low power modes—perfect for smart devices, embedded UI displays, and interactive projects.
High-Performance Microcontroller Core
Powered by the ESP32-C6FH8 chip with a dual-core 32-bit RISC-V processor—a high-performance core running at up to 160MHz and a low-power core at 20MHz—this board is ideal for balancing power efficiency and computational capability.
High-Resolution Capacitive Touch Display
Features a 1.47-inch capacitive LCD screen with 172×320 resolution and 262K display color, perfect for running LVGL and other GUI applications. Ideal for HMI panels, smart control interfaces, and compact visual devices.
Next-Gen Wireless Connectivity

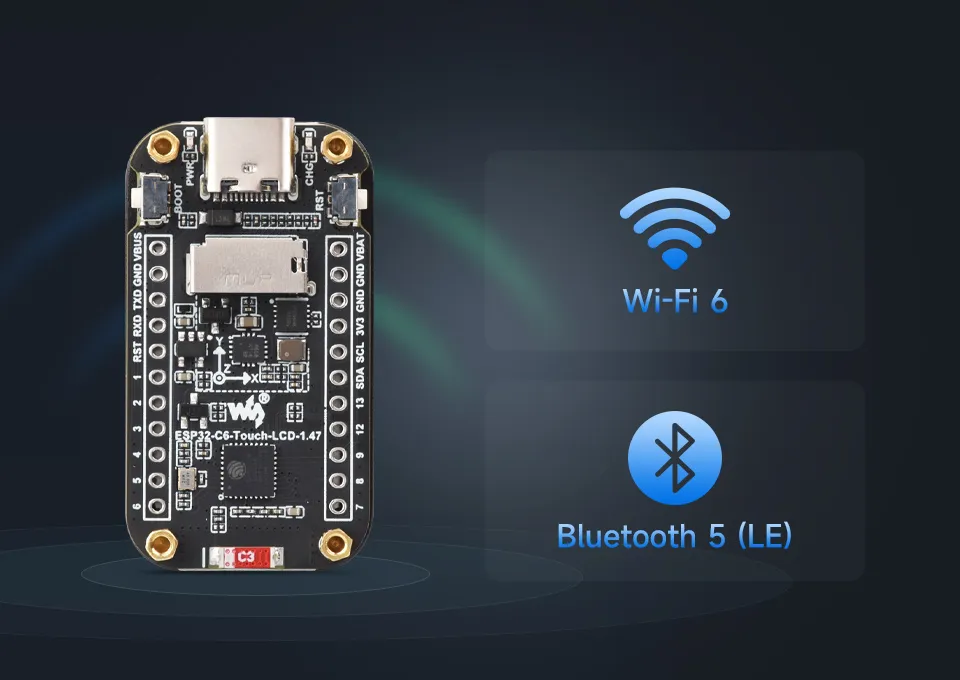

Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (BLE) with an onboard antenna for high-speed, reliable data transmission.
Versatile Hardware Resources
Includes 8MB Flash, 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM. Equipped with full-speed USB interface, Micro SD card slot, and multiple GPIO pins for peripheral expansion and flexible development.
Power-Efficient Design
Supports multiple clock sources and low-power modes, making it perfect for remote control terminals, wearables, and IoT projects requiring optimized energy consumption.
Display Specifications
| DISPLAY SIZE | 1.47inch | Resolution | 172 × 320 pixels |
|---|---|---|---|
| Display Driver | JD9853 | Touch Driver | AXS5106L |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| DISPLAY PANEL | IPS | Touch Type | Capacitive |
The Waveshare ESP32-C6 1.47-inch Touch Display Dev Board is a powerful, compact solution tailored for modern AIoT applications. Powered by the ESP32-C6FH8, this board features a dual-core 32-bit RISC-V processor, combining high performance (up to 160 MHz) and energy-efficient low-power operation—perfect for intelligent edge computing.
With support for 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE) with Mesh networking, the Waveshare ESP32-C6 1.47inch Touch Display Dev Board ensures fast, reliable wireless connectivity for your IoT and smart device projects. It comes with 8MB Flash, 320KB ROM, 512KB high-performance SRAM, and a vivid 1.47-inch capacitive touch display featuring a 172×320 resolution and 262K colors, enabling smooth UI development with tools like LVGL.
This development board also includes full-speed USB support, GPIO access, a microSD card slot, and flexible clock/power management features—making it a robust, low-power HMI platform for rapid prototyping and production-ready designs.

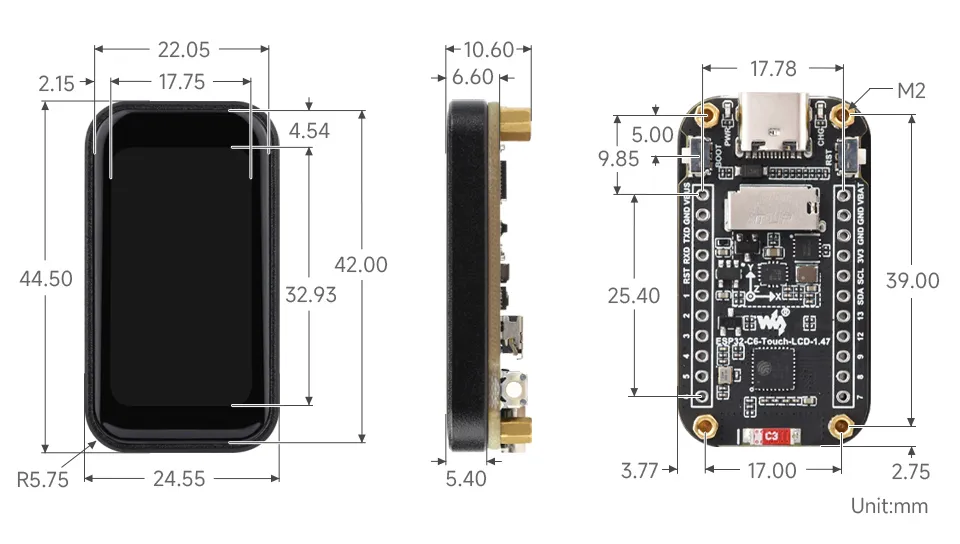

Outline dimensions

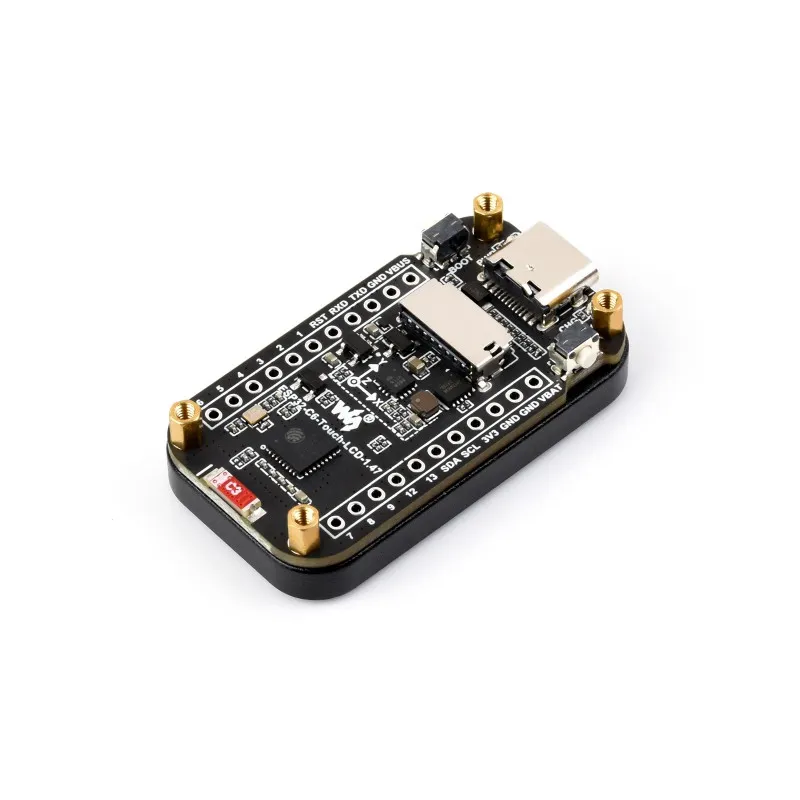

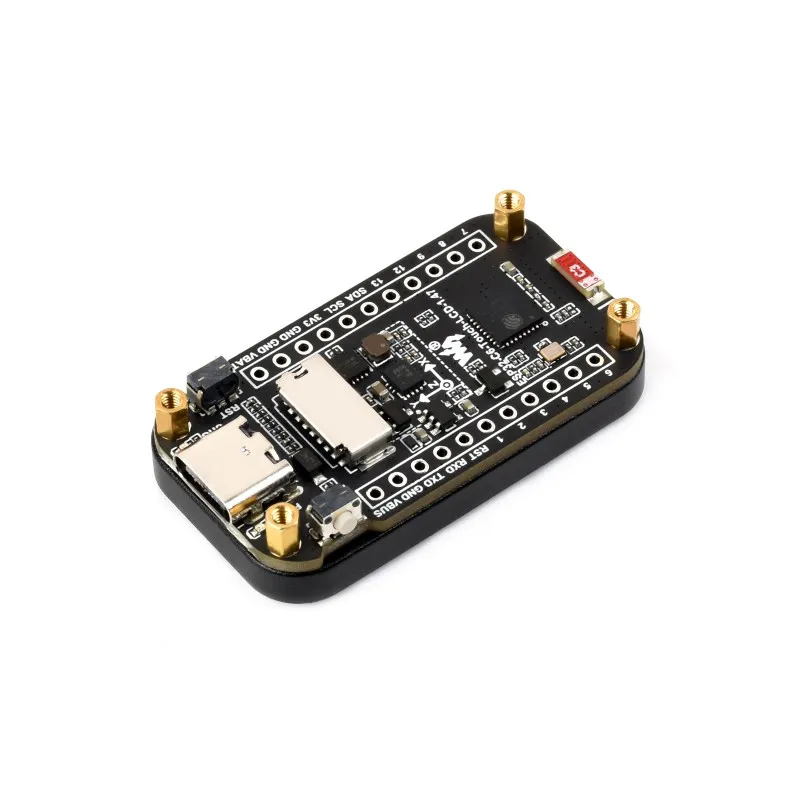

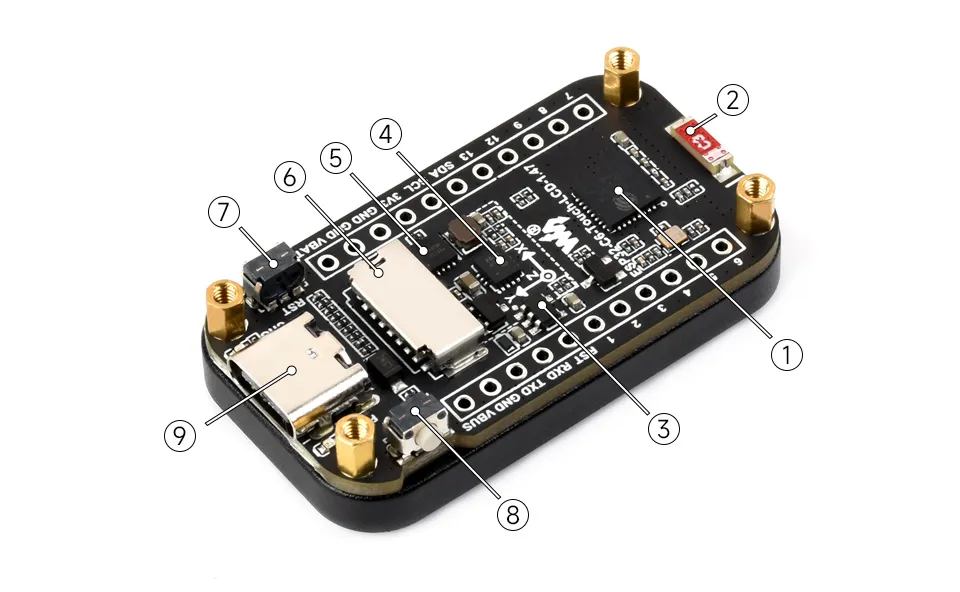

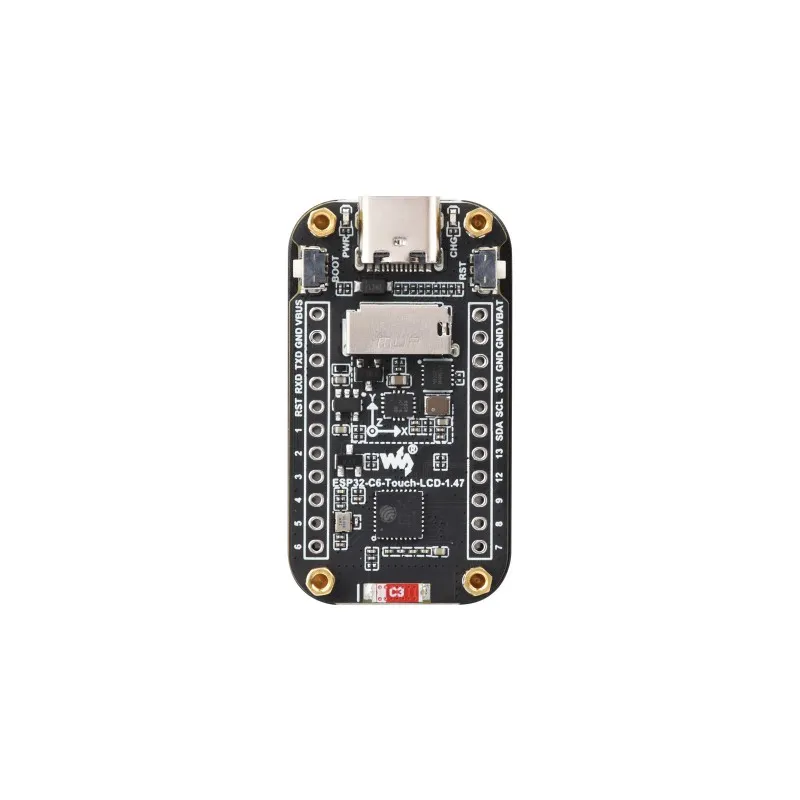

What’s On Board
1. ESP32-C6FH8
2. Onboard ceramic antenna
3. ME6217C33M5G: Low dropout regulator, 800mA output (Max.)
4. QMI8658: 6-Axis IMU
5. ETA6098
6. TF card slot
7. RESET button
8. BOOT button
9. Type-C interface

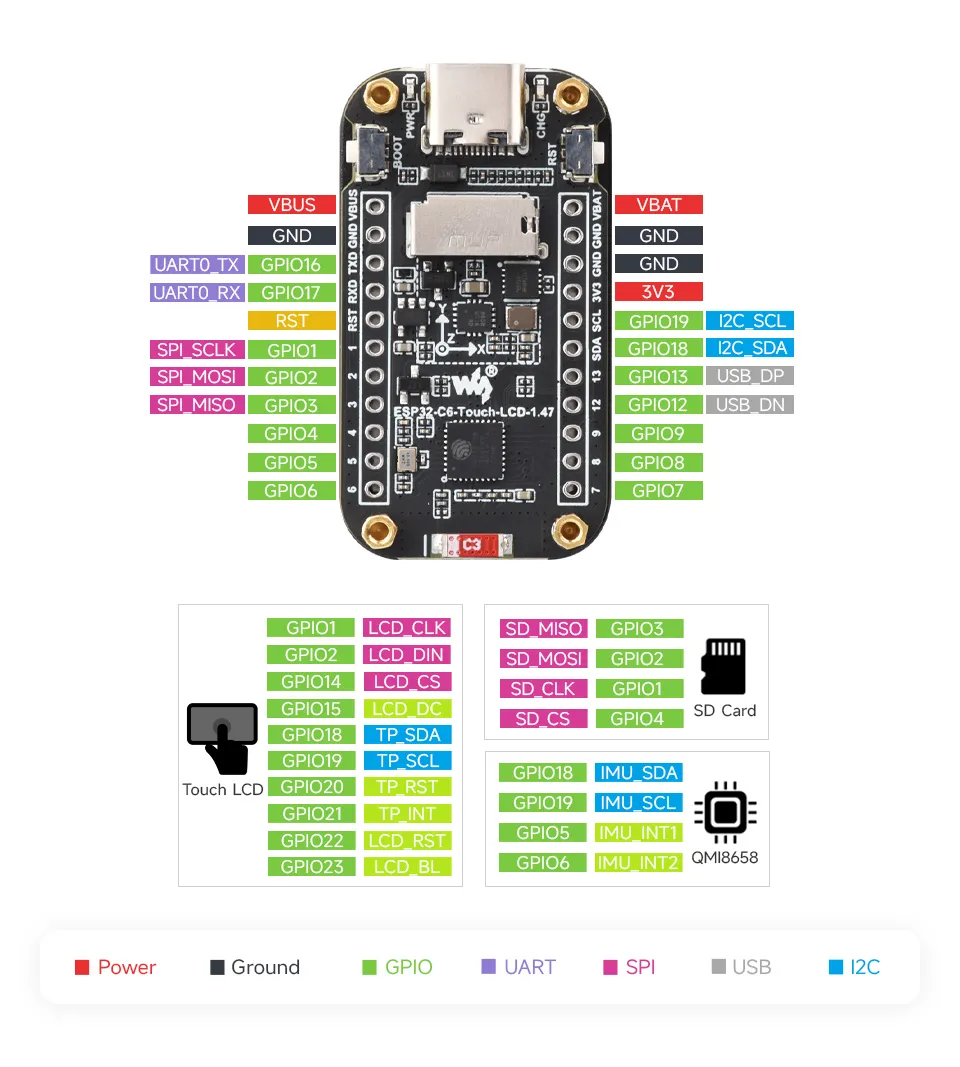

Pin Definition of Waveshare ESP32-C6 1.47-inch Touch Display
Supports the expansion of multiple peripherals via the GPIO header

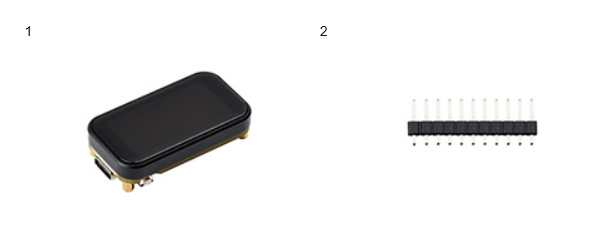

Icludes
Standard Ver.
- ESP32-C6-Touch-LCD-1.47 × 1
- Black header × 2

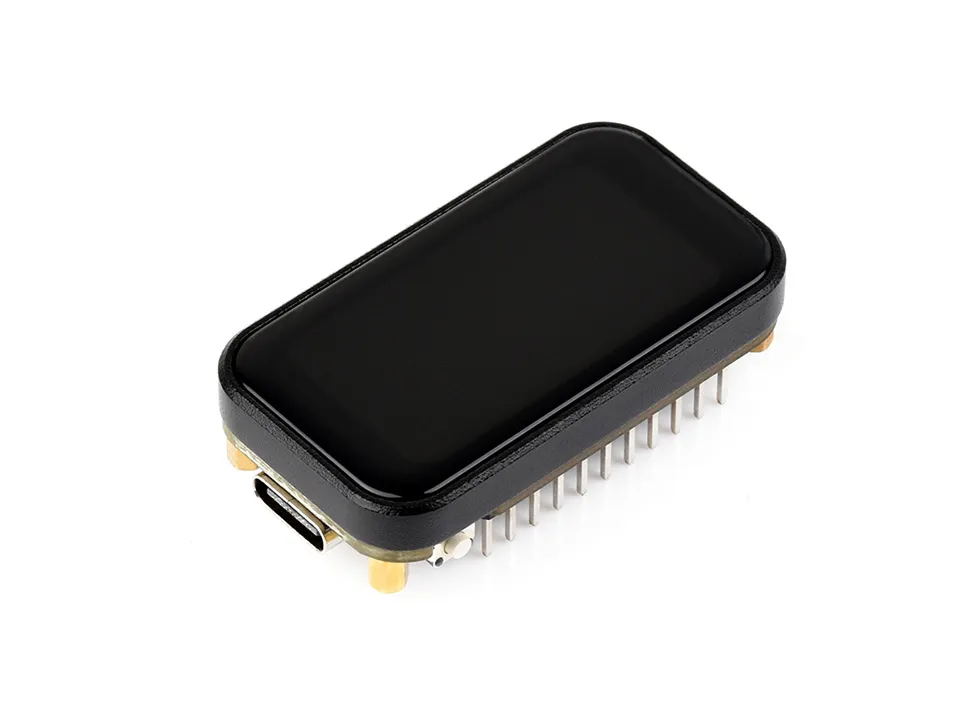

Standard Ver. with pinheader
ESP32-C6-Touch-LCD-1.47 with pre-soldered header × 1
