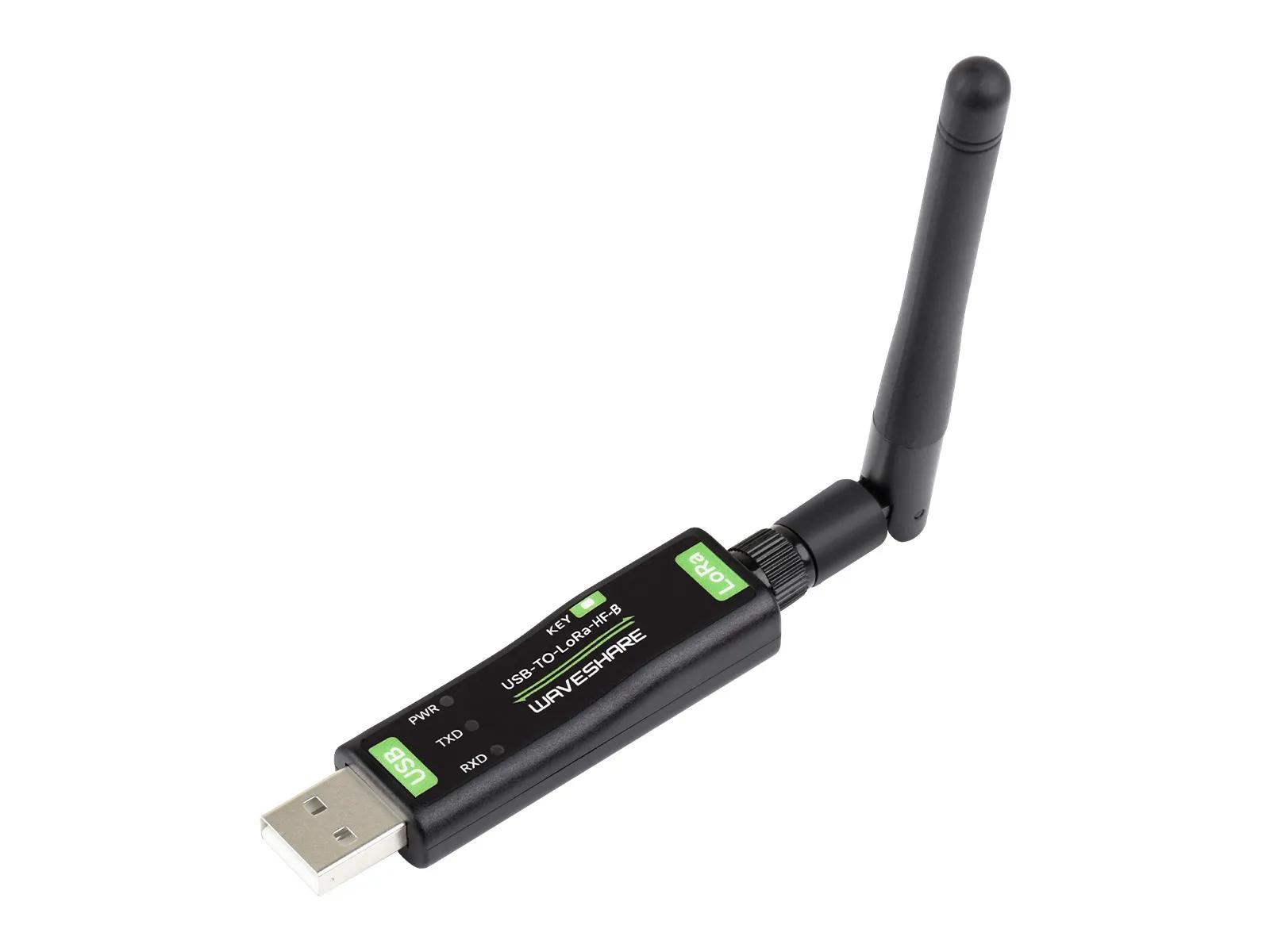

The USB to LoRa Data Transfer Module is based on the SX1262 chip, offering a driver-free, multi-system compatible solution for wireless communication. It supports various operating modes and is portable and easy to use. Ideal for industrial and agricultural data acquisition, it operates on sub-GHz frequencies with high sensitivity and reliable long-range communication up to 5 km. Available in HF (850–930 MHz) and LF (410–510 MHz) versions to comply with local regulations.
Version Options

The HF version is 850~930MHz frequency for Europe, America and Oceania, and the LF version is 410~510MHz frequency for Asia and Europe, please select the frequency version according to the local radio regulations before placing order.

The USB-TO-LoRa-xF-B uses XTAL crystal oscillator and is recommended to be used in 0~50℃ temperature, while USB-TO-LoRa-xF uses TCXO crystal oscillator and is recommended to be use in 0~85℃ temperature.

Features

• Based on original SX1262 chip with -148 dBm sensitivity and +22 dBm transmit power
• Modulation technology for anti-interference and long-distance communication
• Supports point-to-point, point-to-multipoint, and multi-level relay networking
• AES128 encryption ensures secure data transmission
• Supports CRC, automatic packetization, and 960-byte cache
• AT command configuration with RSSI output and LBT sending
• Firmware upgradeable with customization options for batch orders
• Compact ABS enclosure (56.4 × 18.4 × 12.5 mm)
• USB Type A interface and SMA female antenna connector
• Supports baud rates from 1200 to 115200 bps, parity options, and 8-9 data bits
• Operating temperature: TCXO version (085°C), XTAL version (050°C)

Application

• Wireless data acquisition in industrial environments
• Agricultural sensor data collection and monitoring
• Remote device control and automation
• Long-range communication in IoT systems
• Suitable for point-to-point or multi-point wireless networks
