M5Stack M5GO IoT Starter Kit V2.7
M5Stack M5GO IoT Starter Kit V2.7 - Image 2
M5Stack M5GO IoT Starter Kit V2.7 - Image 3

M5Stack M5GO IoT Starter Kit V2.7

SKU: MCC-009
  • All-in-One Design
    Integrates multiple sensor modules, including a gyroscope, light sensor, microphone, and more, for diverse IoT project development.
  • ESP32 Processor
    Powered by a dual-core ESP32 processor with Wi-Fi and Bluetooth support, offering efficient wireless communication.
  • Education-Friendly
    Simple design with extensive development resources and tutorials, making it suitable for IoT and programming education.
  • Modular Expansion
    Compatible with other M5Stack modules, providing flexibility and expandability for enhanced development.

€89,90

The M5Stack M5GO IoT Starter Kit v2.7 is a cost effective IoT starter development kit. The kit contains Core Controller M5GO + 6 expansion units with different functions (sensors/actuators/splitters). The core controller M5GO adopts Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of 240MHz. With 16M FLASH memory for larger program size. Besides its powerful , the MCU also supports Wi-Fi, which can be used to build smart wearable devices, smart home and other applications.

Product Features

  • Based on ESP32 development
  • 16M FLASH
  • Integrated HD IPS display panel with various hardware peripherals
  • Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability
  • The base is compatible with 8mm size LEGO blocks, the structures just so interesting!
  • Microsoft Azure authentication device
  • Compatible with multi-platform development:

M5GO IoT controller

  • Low code development:
    • Supports UIFlow graphical programming platform, scripting-free, cloud push
    • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
    • FreeRTOS support, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
  • High integration.

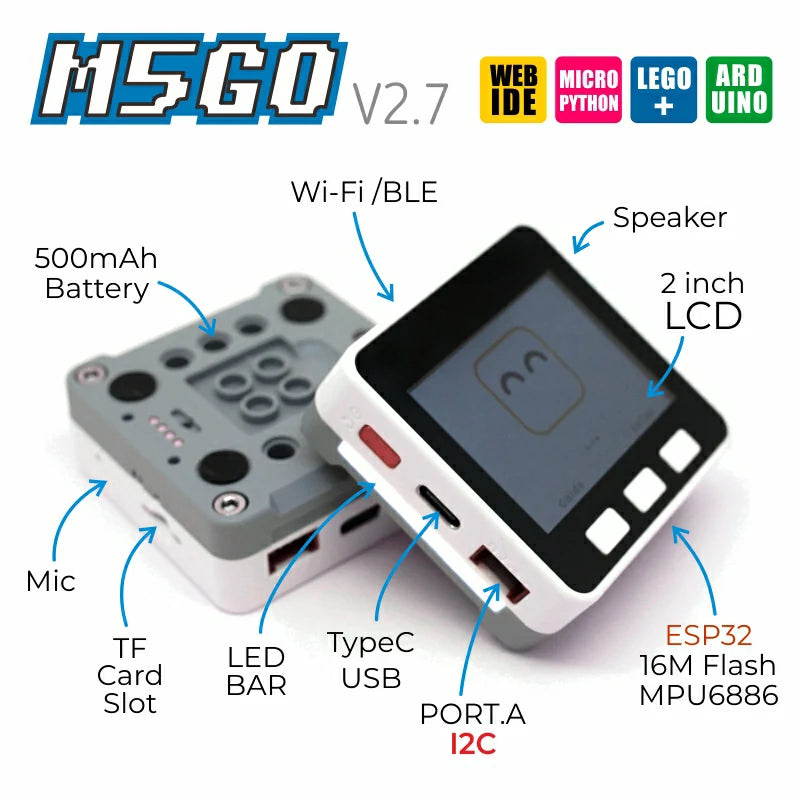

    • 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3

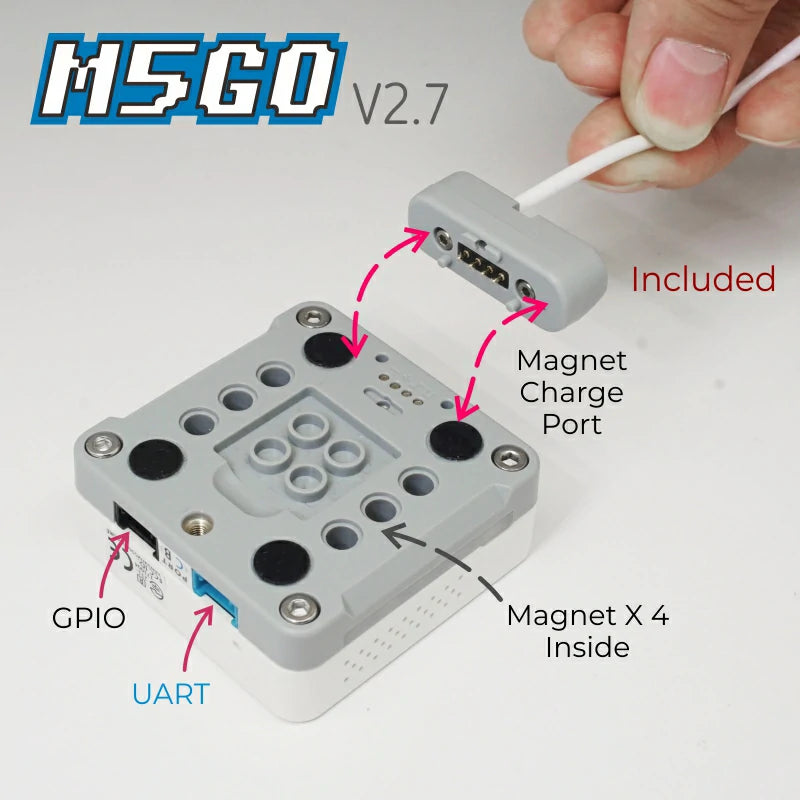

    • Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply
    • Finely tuned RF circuitry for stable and reliable wireless communication
  • Strong expandability.
    • GROVE expansion ports x3 (I2C, GPIO, UART)
    • Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion

6x expansion units

  • ENV UNIT III: Temperature, humidity, and atmospheric pressure sensors, with I2C communication interface for rapid acquisition of environmental information.
  • PIR UNIT: Body sensor, passive pyroelectric for human body sensing, digital signal output status.
  • ANGLE UNIT: Knob Potentiometer, analog signal input for music/lighting adjustment
  • IR UNIT: Integrated infrared transmitter, receiver. Free coding, infrared transceiver.
  • RGB UNIT: 3x Programmable RGB LED, support programming to control any color display
  • HUB UNIT: I2C device splitter, expand single I2C bus to 3 channels, can access different I2C address devices

Applications

  • STEM Education
  • IoT Controller
  • Smart Home
  • Smart Weather Station

Video

Learn

Examples

Arduino

  • Click here to see the Arduino example

Specification

SpecificationsParameters
ESP32-D0WDQ6-V3240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash16MB
Input Voltage5V @ 500mA
Host InterfaceTypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
IPS Screen2 inch, 320×240 Colorful TFT LCD, ILI9342C, 853nit max brightness
KeysCustom Keys x 3
Speaker1W-0928
MicrophoneAnalog BSE3729 Microphone
IMU6-axis MPU6886
USB ChipCH9102F
LEDSK6812 RGB LED x 10
Antenna2.4G 3D antenna
Battery500 mAh @ 3.7V
Operating Temperature0°C to 40°C
Net Weight56.4g
Gross Weight228g
Product Dimensions54 x 54 x 21 mm
Package Size147 x 90 x 40 mm
Cover MaterialPlastic ( PC )

Hardware Overview

Pin Mapping

LCD screen & TF card

LCD Pixel: 320×240 TF card support up to 16GB

ESP32 ChipGPIO23GPIO19GPIO18GPIO14GPIO27GPIO33GPIO32GPIO4
ILI9342CMOSI/MISO/CLKCSDCRSTBL
TF卡MOSIMISOCLKCS

Button & Speaker

ESP32 ChipGPIO39GPIO38GPIO37GPIO25
Button PinsBUTTON ABUTTON BBUTTON C
SpeakersSpeaker Pin

GROVE Interface A & IP5306

The power management chip (IP5306) is a custom I2C version, and its I2C address is 0x75. Click here to view the IP5306’s register manual.

ESP32 ChipGPIO22GPIO215VGND
GROVE ASCLSDA5VGND
IP5306SCLSDA5VGND

IP5306 charge/discharge, voltage parameters

ChargingDischarging
0.00 ~ 3.40V -> 0%4.20 ~ 4.07V -> 100%
3.40 ~ 3.61V -> 25%4.07 ~ 3.81V -> 75%
3.61 ~ 3.88V -> 50%3.81 ~ 3.55V -> 50%
3.88 ~ 4.12V -> 75%3.55 ~ 3.33V -> 25%
4.12 ~ / -> 100%3.33 ~ 0.00V -> 0%

MPU6886 3-axis accelerometer + 3-axis gyroscope

MPU6886 I2C address 0x68

ESP32 ChipGPIO22GPIO215VGND
MPU6886SCLSDA5VGND

M5GO Base Pins

GROVE Interface B

ESP32 ChipGPIO36GPIO265VGND
GROVE BGPIO36GPIO265VGND

GROVE Interface C

ESP32 ChipGPIO16GPIO175VGND
GROVE CRXDTXD5VGND

LED strip & microphone & speaker

ESP32 ChipGPIO15GPIO34GPIO25
hardwareSIG PinMIC PinSpeaker Pin

M5 Port Description

PORTPINNote:
PORT-A(red)G21/22I2C
PORT-B(black)G26/36DAC/ADC
PORT-C(blue)G16/17UART

ESP32 ADC/DAC

ADC1ADC2DAC1DAC2
8 Channel10 Channel2 Channel2 Channel
G32-39G0/2/4/12-15/25-27G25G26

M-BUS

M_BUS

When use the RGB LEDs of GPIO15, we recommend initialize the pins Mode(15, OUTPUT_OPEN_DRAIN); For more info about pin assignment and pin remapping, please refer to ESP32 datasheet

Include

  • 1x M5GO
  • 6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)
  • 4x LEGO Blocks
  • 12x LEGO Connections
  • 4x GROVE cable
  • 1x Type-C USB (20cm)
  • 1x Quick Start Guide

Documents

Schematic
