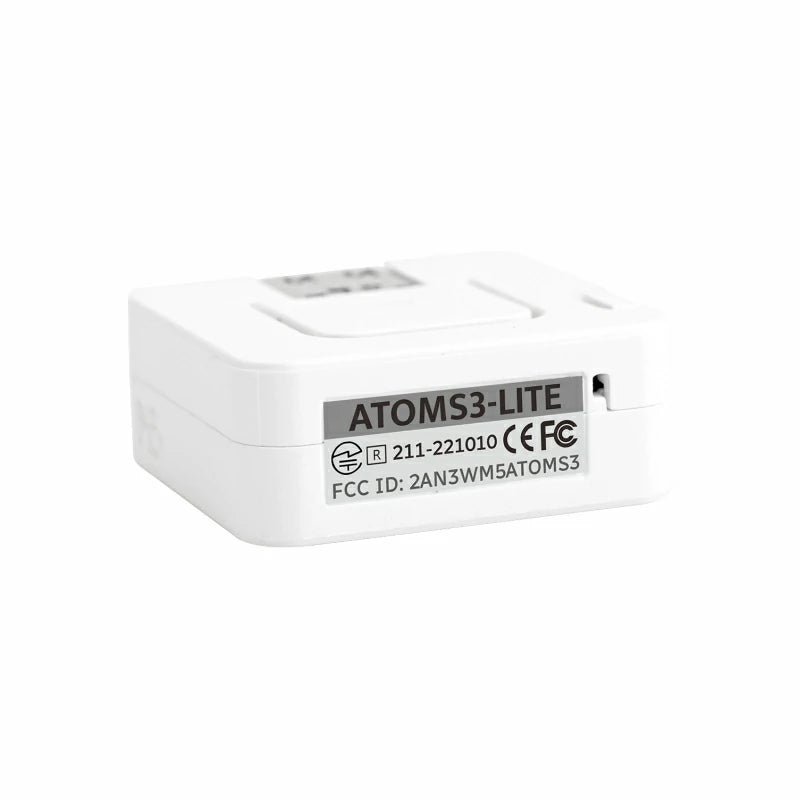

M5Stack AtomS3 Lite ESP32S3 Dev Kit
SKU: MCA-006
- ESP32-S3 Chip: Powered by the ESP32-S3 chip, supporting Wi-Fi 6 and Bluetooth 5.0, with AI acceleration capabilities.
- Lightweight Design: Lighter and more energy-efficient compared to the AtomS3, ideal for simpler IoT applications.
- Basic I/O Interfaces: Offers GPIO, I2C, and UART interfaces suitable for basic peripheral connections.
- Low Power Consumption: Designed for low-power operation, perfect for long-running devices.
€9,90

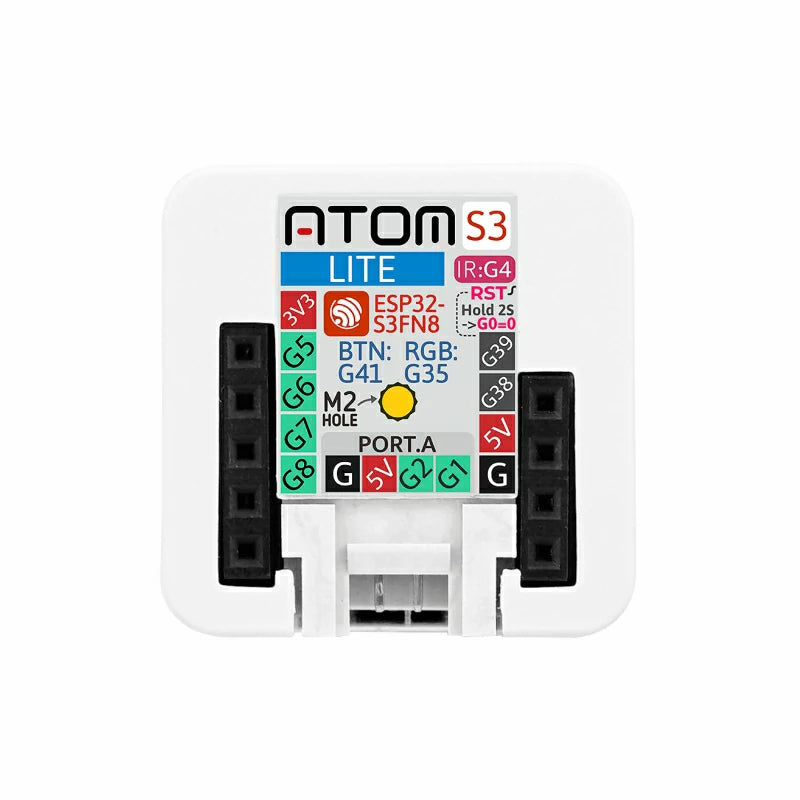

M5Stack AtomS3 Liteis anAtom Series Programmable Controller in the M5Stack Development Kit series usingESP32-S3as the main control, its size is only 24*24*9.5mm, the main control adopts theESP32-S3FN8scheme, with 8MB SPI flash memory , integrated Wi-Fifunction, built-in 3D antenna, 5V to 3.3Vpower circuit, providing infrared emitting light, RGBStatus Indicators, Button and GROVE/HY2.0-4Pinterfaces. The bottom of the product is equipped with apower supply and 6 GPIO headersto facilitate expansion applications. The on-board Type-C interfacecan realize program download and serial port communication functions. An M2 screw holeis provided on the back for fixing. Suitable for all kinds of embedded smart device applications.
Download Mode
press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.
Features
- Developed based on ESP32-S3FN8
- Comes with USB download function
- Programmable button
- Infrared emission function
- Expandable pins and interfaces
- Development platform: Arduino, UIFlow
Includes
- 1x AtomS3 Lite
Applications
- IoT node
- Microcontroller
- Wearables
Video
Learn
Examples
Arduino
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| FLASH | 8MB |
| RGB | WS2812C-2020 |
| DCDC | SY8089 |
| Operating temperature | 0°C ~ 40°C |
| Supply voltage | 5V |
| Power supply mode | TYPE C |
| Output voltage | 3.3V |
| IO interface × 6 | G5/G6/G7/G8/G38/G39 |
| Product Size | 24mm × 24mm ×9.5mm |
| Package Size | 65mm × 44.5mm × 14mm |
| Product Weight | 5.3g |
| Package Weight | 9.5g |
Hardware Overview
Include
- 1x AtomS3 Lite
