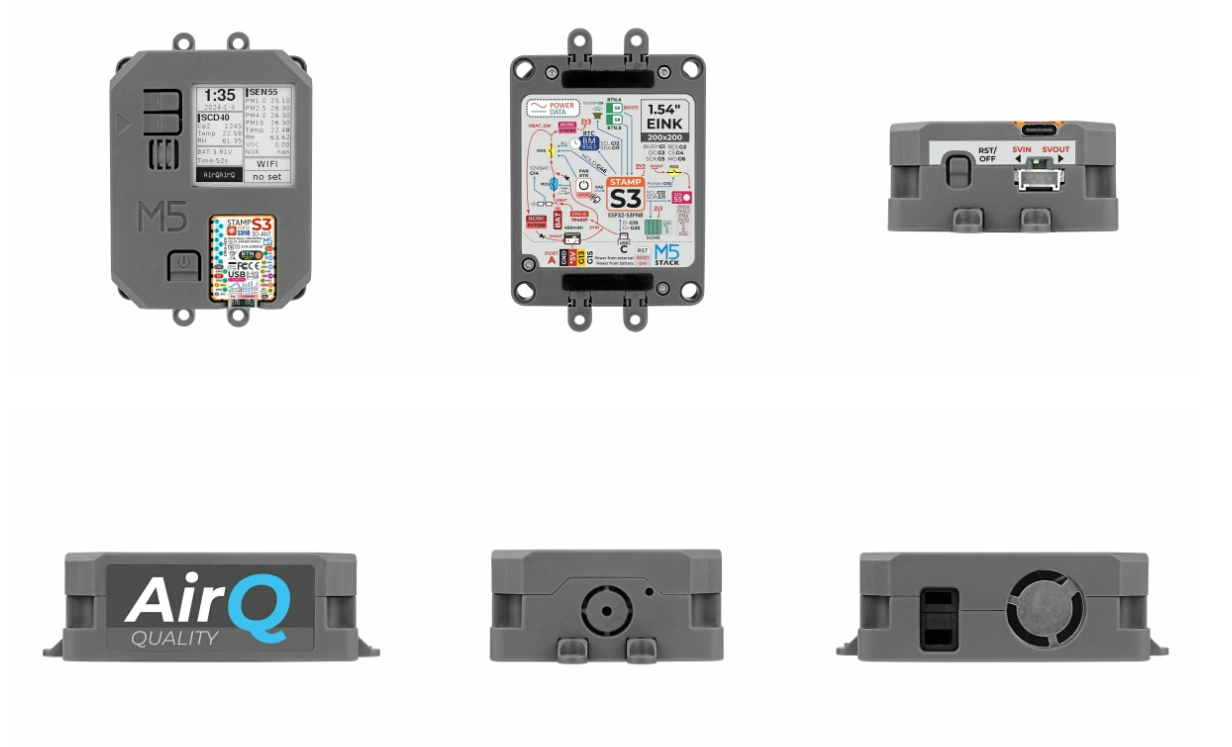

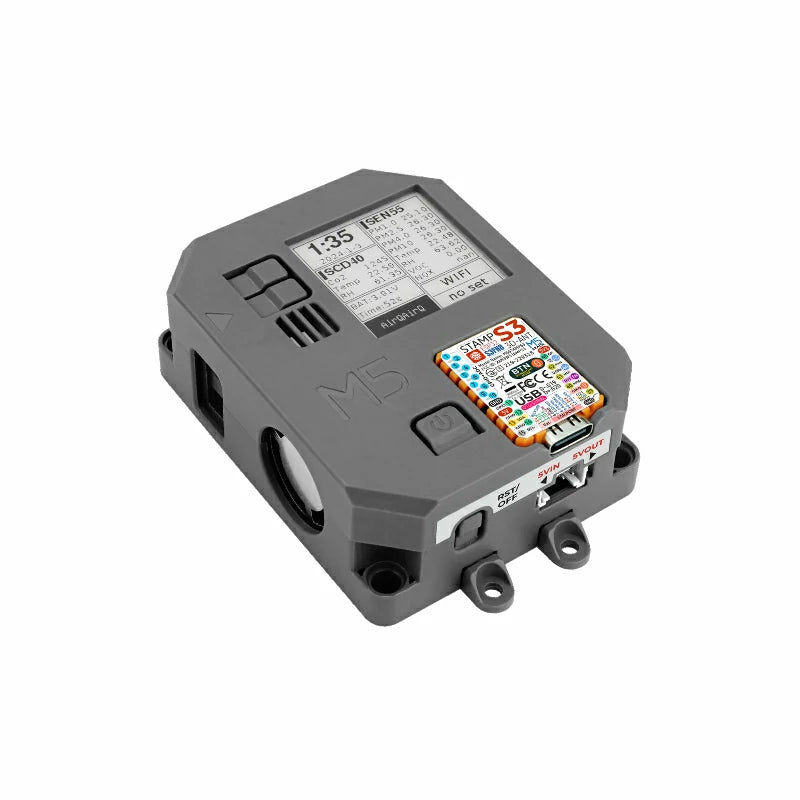

M5Stack Air Quality Kit is an integrated, low-power air quality monitoring device designed to provide comprehensive air quality monitoring solutions. It features multiple components, including the SEN55 air quality sensor and the SCD40 CO2 sensor, enabling the monitoring of PM1.0, PM2.5, PM4, PM10 particles, temperature, humidity, VOC, and CO2 concentrations. Powered by the StampS3 main controller and equipped with 8M Flash memory, AirQ ensures efficient data processing and storage capabilities.

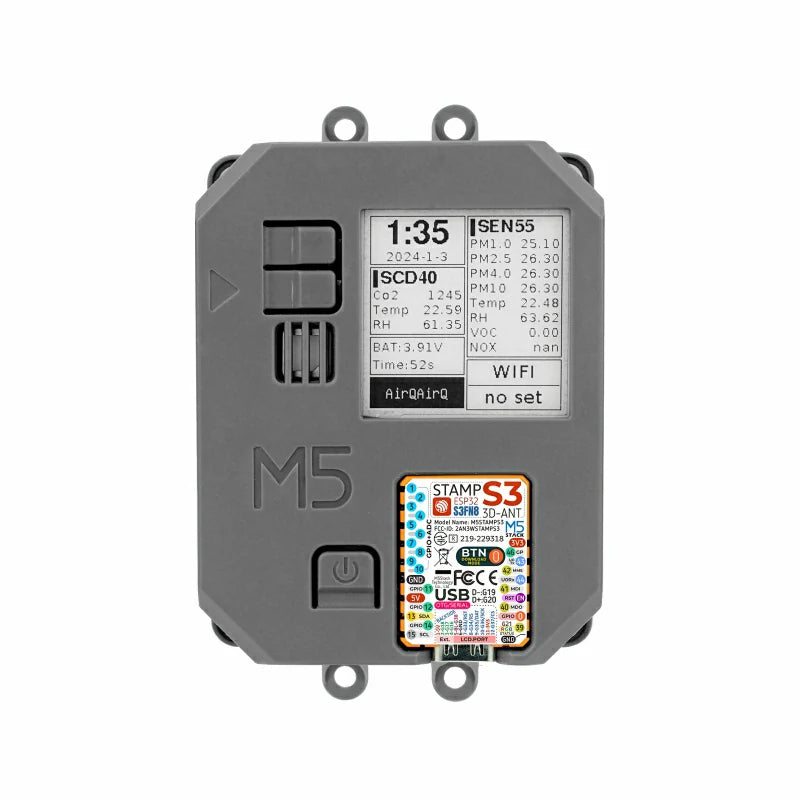

The device comes with a 1.54-inch e-ink display with a resolution of 200×200, providing a clear visual representation of the data. Even in the event of a power outage, the final data screen will remain visible, ensuring continuous visualization. To extend monitoring capabilities, AirQ is equipped with a 450mAh battery and an RTC low-power power management circuit. This allows the device to enter sleep mode and be awakened on a scheduled basis, conserving energy and prolonging battery life.

Out of the box, AirQ’s firmware is preconfigured to upload data to M5’s EZDATA cloud platform, which automatically generates monitoring pages, providing users with convenient remote access and data management. Users can monitor air quality data anytime, anywhere through the cloud-based access.

For versatile installation options, AirQ features LEGO mounting holes, adhesive magnets, and four detachable mounting ears. This allows for flexible and secure installation in various settings, including homes, schools, industrial facilities, and hospitals, enabling long-term online air quality monitoring.
