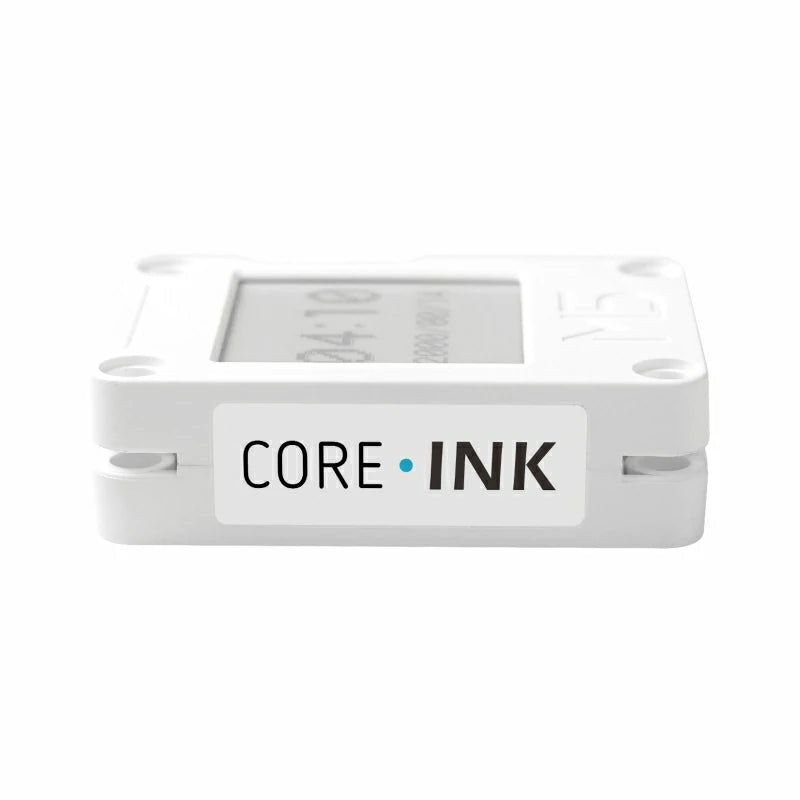

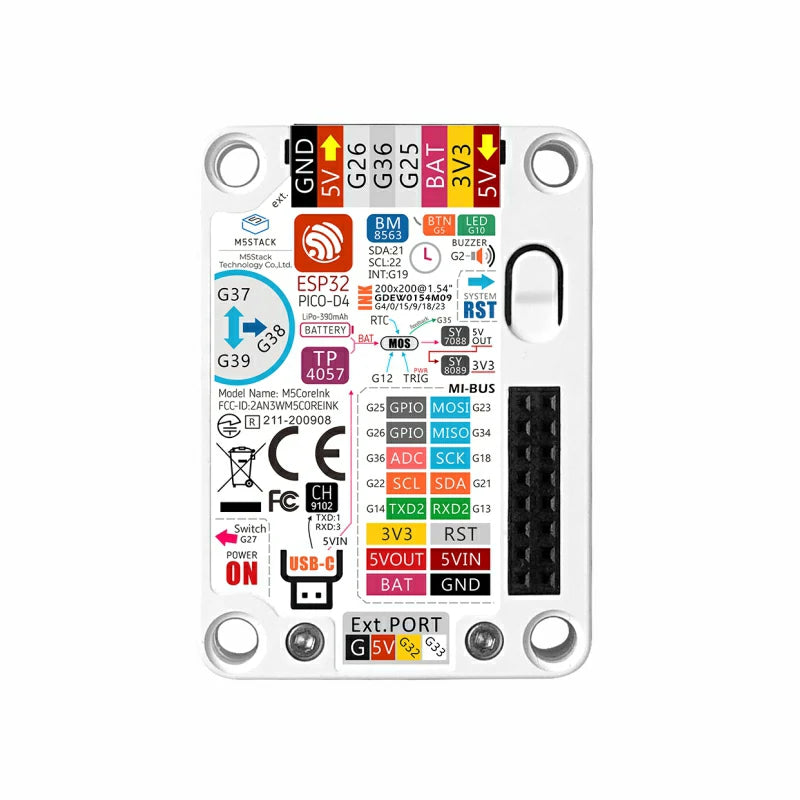

M5Stack ESP32 Core Ink is a brand new E-ink display in the M5Stack cores range. Controlled by the ESP32-PICO-D4 This new device includes a 200×200 1.54″ Black and White E-ink Display. Compared to a regular LCD,E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are the low power consumption and the ability to retain the image even if power to the display is terminated。For control the CoreInk integrates an multi-function button,A physical button, integrated status LED and buzzer.The device also includes a 390mAh lithium polymer battery,RTC(BM8563)for controlling accurate timing and deep sleep functionality. CoreInk features independent reset and power buttons,expansion ports(HY2.0-4P,M-BUS,HAT expansion)for attaching external sensors to expand functionality,for unlimited possibilities。
Precautions |Please avoid long-time high-frequency refresh when using it. The recommended refresh interval is (15s/time). Do not expose to ultraviolet rays for a long time, otherwise it may cause irreversible damage to the ink screen. The low-power power management solution adopted by CoreInk is different from that of CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the reset button on the back.
Features
- ESP32 Standard wireless functions Wi-Fi
- Internal 4M Flash
- Low Power Display
- 180 degree viewing angle
- Expansion ports
- Built-in Magnet
- Internal Battery
- Expandable
Application
- IoT Terminal
- E-Book
- Industrial Control Panel
- Electronic Tag
Video
Learn
Examples
Arduino
- Github
- Arduino API
