The T-Touch Bar is an advanced ESP32-S3 development board equipped with a 2-inch touch control strip and 0.99-inch RGB LCD display. Powered by the Xtensa LX7 dual-core processor, it offers seamless integration for IoT projects, wearables, and interactive applications. With support for Wi-Fi, Bluetooth 5.0, and Bluetooth Mesh, this development board ensures efficient communication for real-time and connected devices.
Key Features of T-Touch Bar
1. ESP32-S3 Chip for High Performance
- MCU: ESP32-S3R8, featuring a 32-bit dual-core LX7 processor for powerful performance in IoT and embedded system applications.
- Memory: 16MB Flash and 8MB PSRAM, providing ample storage and fast processing capabilities for complex tasks and real-time data handling.
- Wireless Connectivity: Supports Wi-Fi 2.4GHz, Bluetooth 5.0, and Bluetooth Mesh, enabling flexible and efficient communication for various devices.
2. Touch Control Strip & Display
- Touch Strip: 2-inch touch bar with the FT6336 touch chip, enabling intuitive touch controls for interactive applications.
- LCD Display: 0.99-inch GC9D01N LCD with 160 x 160 resolution, offering vibrant colors and clear visuals for user interfaces and status displays.
3. Additional Features for Enhanced Functionality
- Battery Support: Includes an MX1.25 2P lithium battery interface, supporting battery charging and discharging circuits for portable applications.
- USB Connectivity: Magnetic round USB connector for easy power supply and data transfer.
- Buttons: Reset and Boot buttons for quick configuration and system resets.
- Battery Detection: Onboard battery detection pin (IO02) for monitoring battery status and ensuring efficient power management.
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

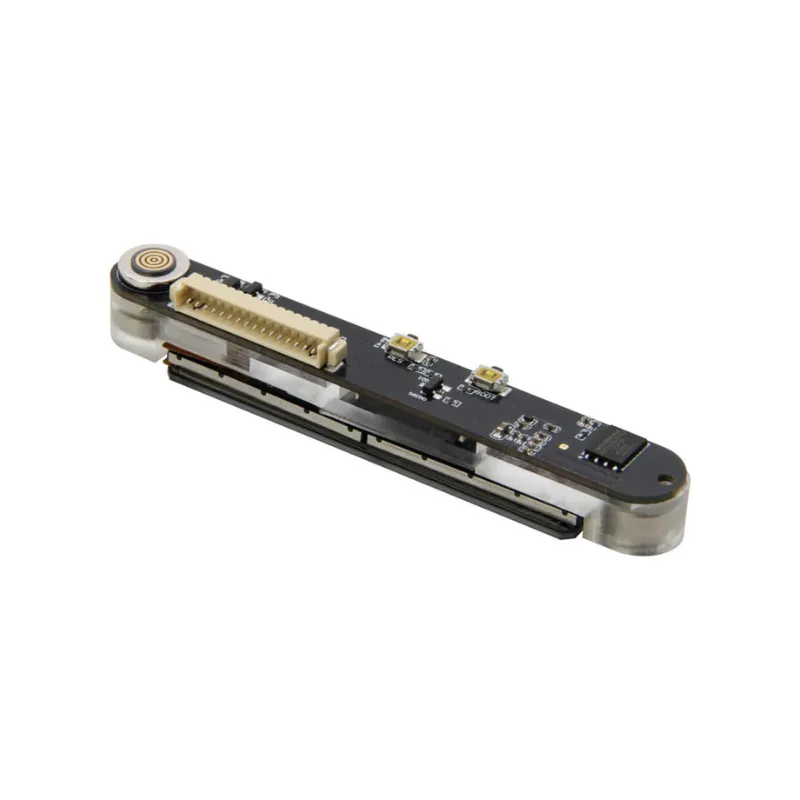

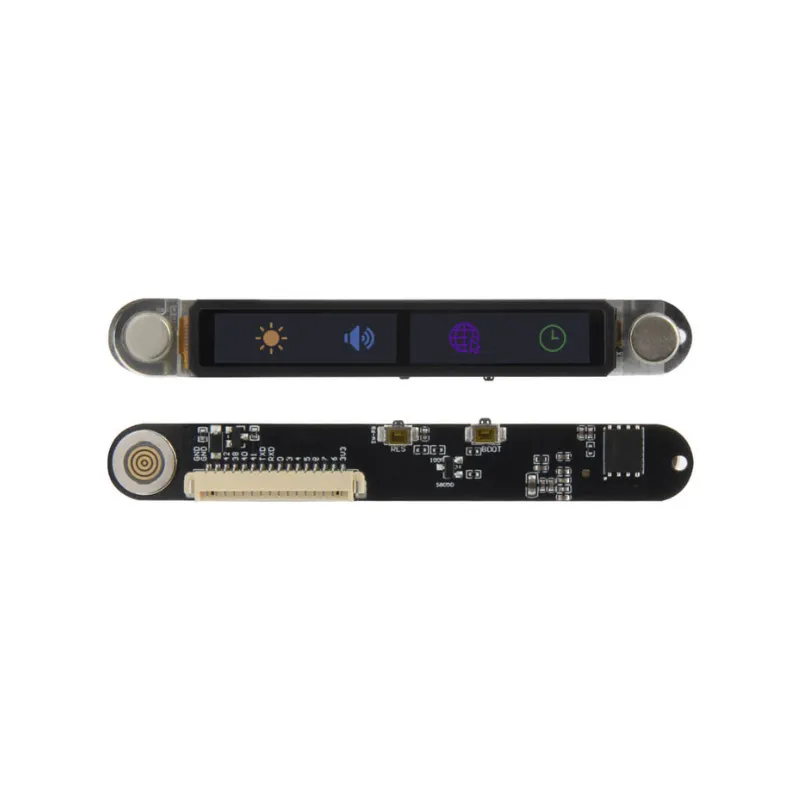

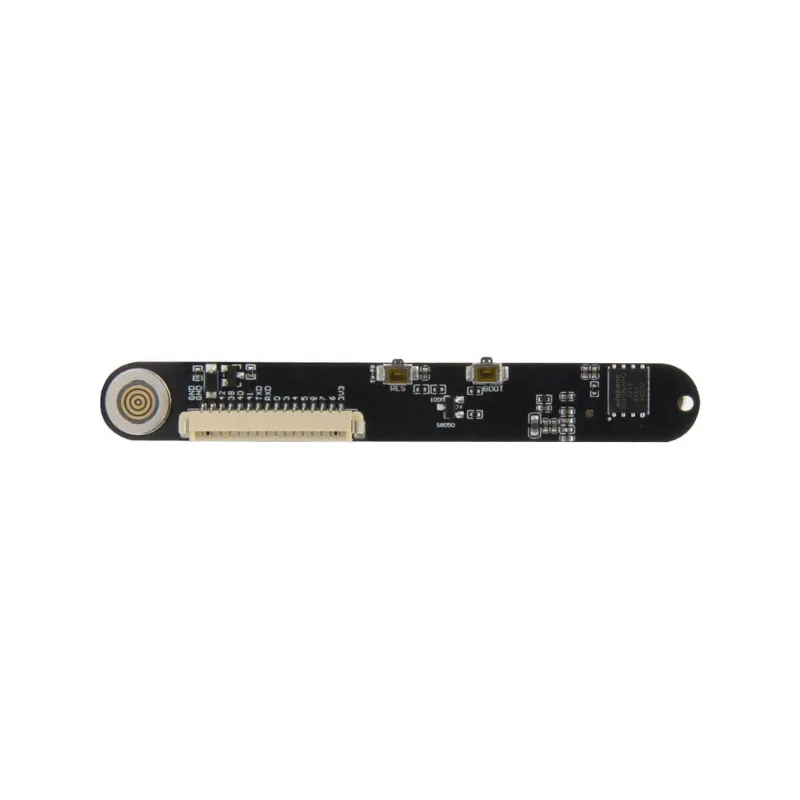

Product Display
Size
Pin Diagram
LED version
AMOLED version
More Details
