LILYGO T-Display-S3 LCD Development Board
- ESP32-S3 with 1.9-Inch LCD Screen: The T-Display-S3 features the powerful ESP32-S3 chip and a larger 1.9-inch LCD screen, perfect for IoT and interactive projects.
- Programmable Buttons & Fast Communication: It comes with two programmable buttons and uses the I8080 interface for fast and efficient communication.
- Durable & Easy to Use: Available in soldered and non-soldered versions, the T-Display-S3 is easy to integrate into projects and ideal for prototyping.
€12,50 – €39,90
The T-Display-S3 is an advanced development board featuring the powerful ESP32-S3 chip, designed for embedded system projects. Equipped with a 1.9-inch LCD color screen and two programmable buttons, this board is perfect for a variety of applications, from IoT projects to interactive displays. The I8080 interface ensures fast and efficient communication for your projects.
Retaining the same layout design as the popular T-Display, the T-Display-S3 offers easy integration with ESP32-S3 for seamless USB communication and programming, making it an excellent choice for developers looking to create cutting-edge applications with minimal setup.
The T-Display-S3 shell is available in both soldered and non-soldered versions, but is not compatible with the touch version. The soldered version of the ESP32-S3 with shell is designed for enhanced durability and functionality, perfect for prototyping and development.
Note:
- Please use USB2.0 (USB A-USB C) cable.
- Compatible With ST7789.
There are MIDI expansion boards for use with the T-Display-S3
The MIDI expansion board for the T-Display S3 allows you to connect headphones or a stereo system to play back simulated sound. It is compatible with all versions of the T-Display S3.
Note: The package only includes the MIDI board; the T-Display S3 device is not included. Please select the appropriate version of the T-Display S3 for use with the MIDI board based on your needs.
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Display-S3

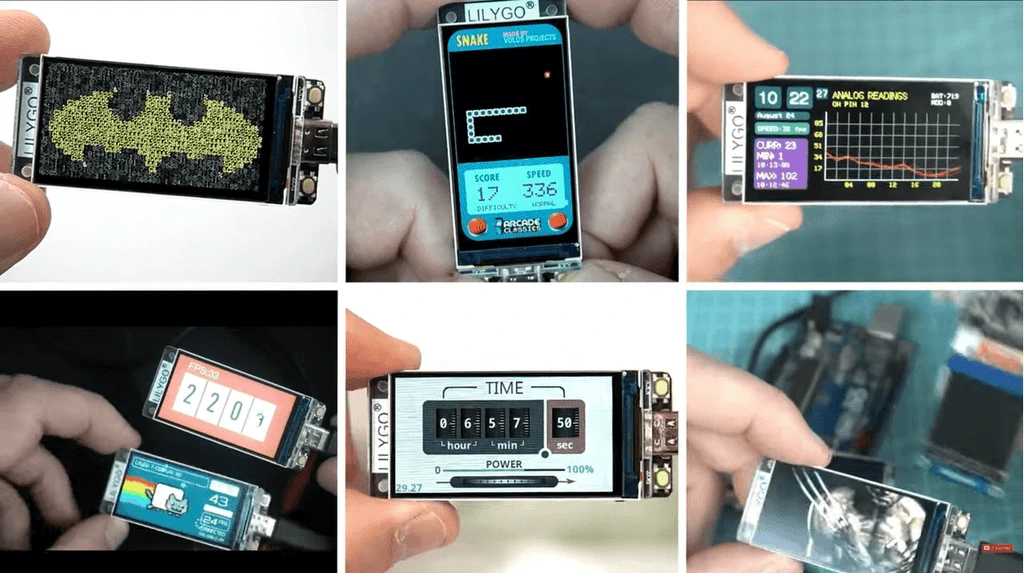

What engineers have done with T-Display-S3
Introduction of the T-Display-S3
T-Display-S3 Introduction
The T-Display series welcomes its newest member – the T-Display-S3.
Powered by the latest ESP32-S3, it supports Wi-Fi 802.11, BLE 5, and BT Mesh, providing advanced connectivity options for your projects.

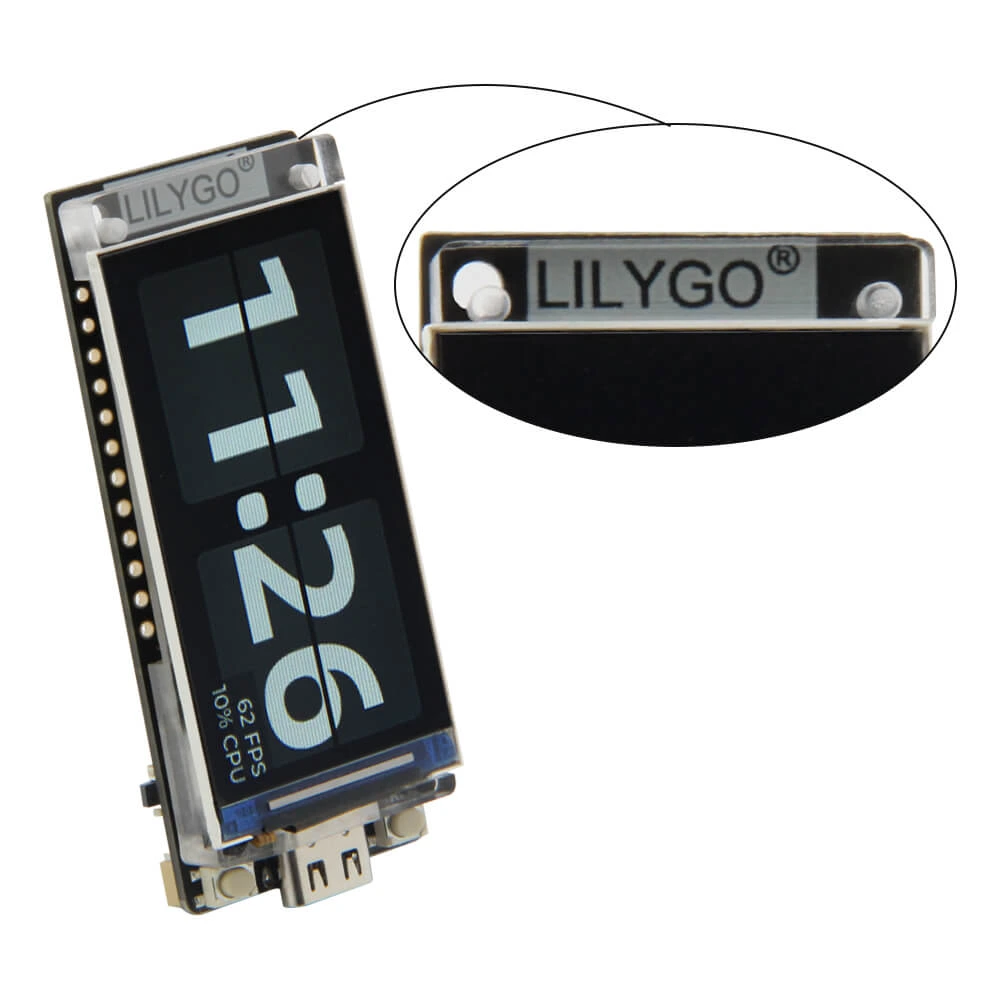

The display size has been expanded from the original 1.14 inches to a larger 1.9 inches, offering more screen real estate for your applications. Additionally, an acrylic plate has been added to securely hold the display, marking the second model in the T-Display series to feature this enhancement.
The overall design preserves the sleek and functional style that has defined the T-Display series, combining both innovation and ease of use.

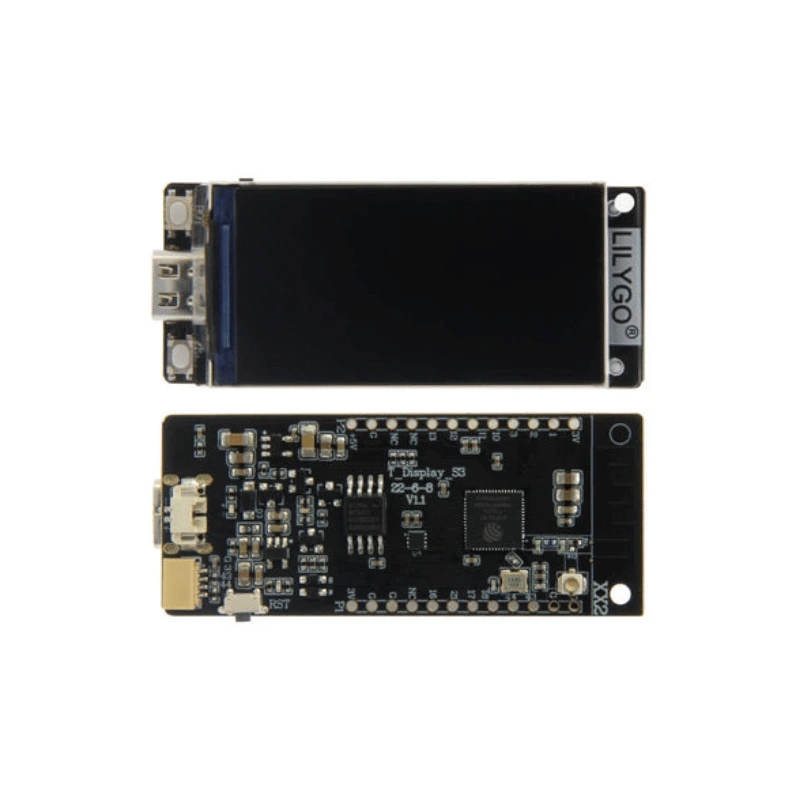

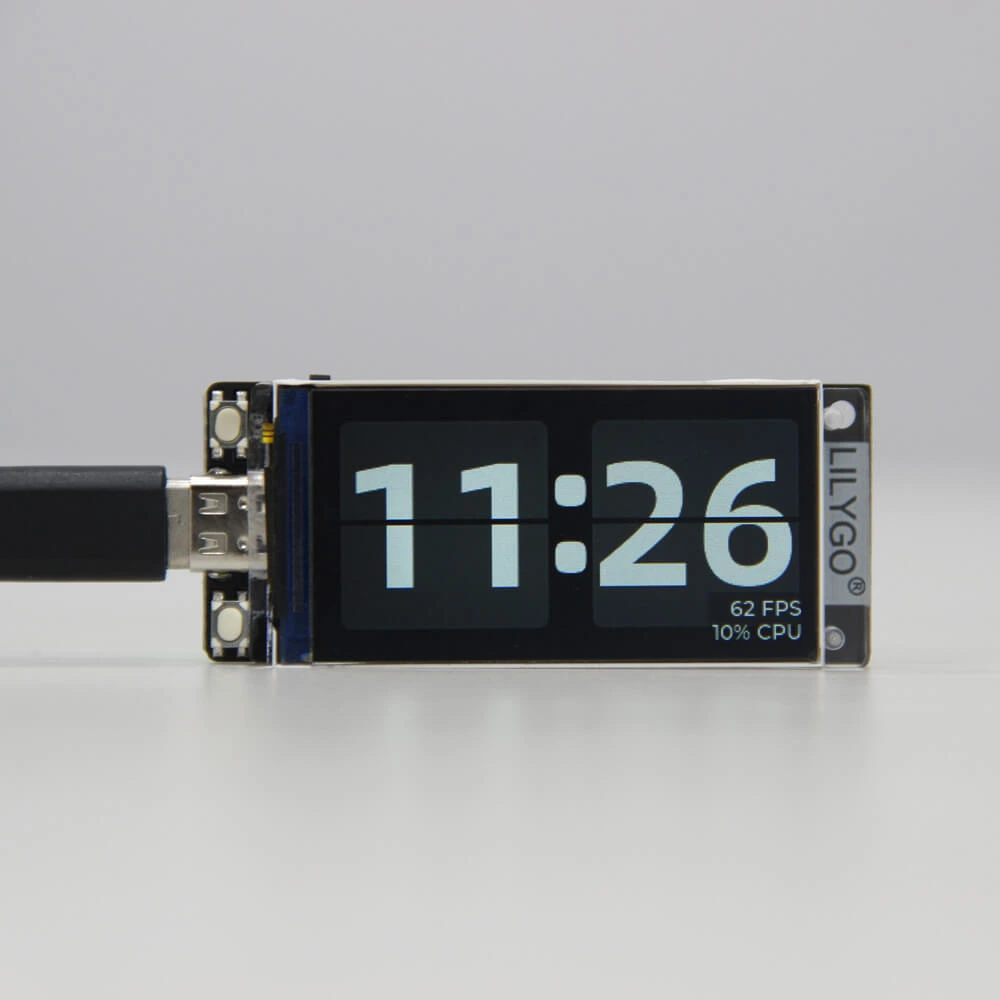

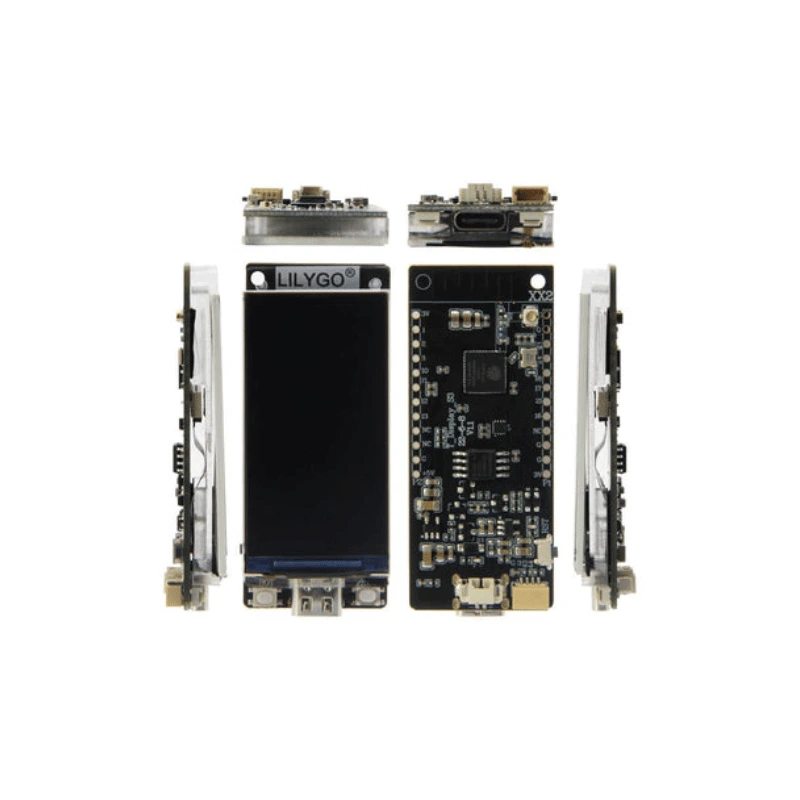

Product Display

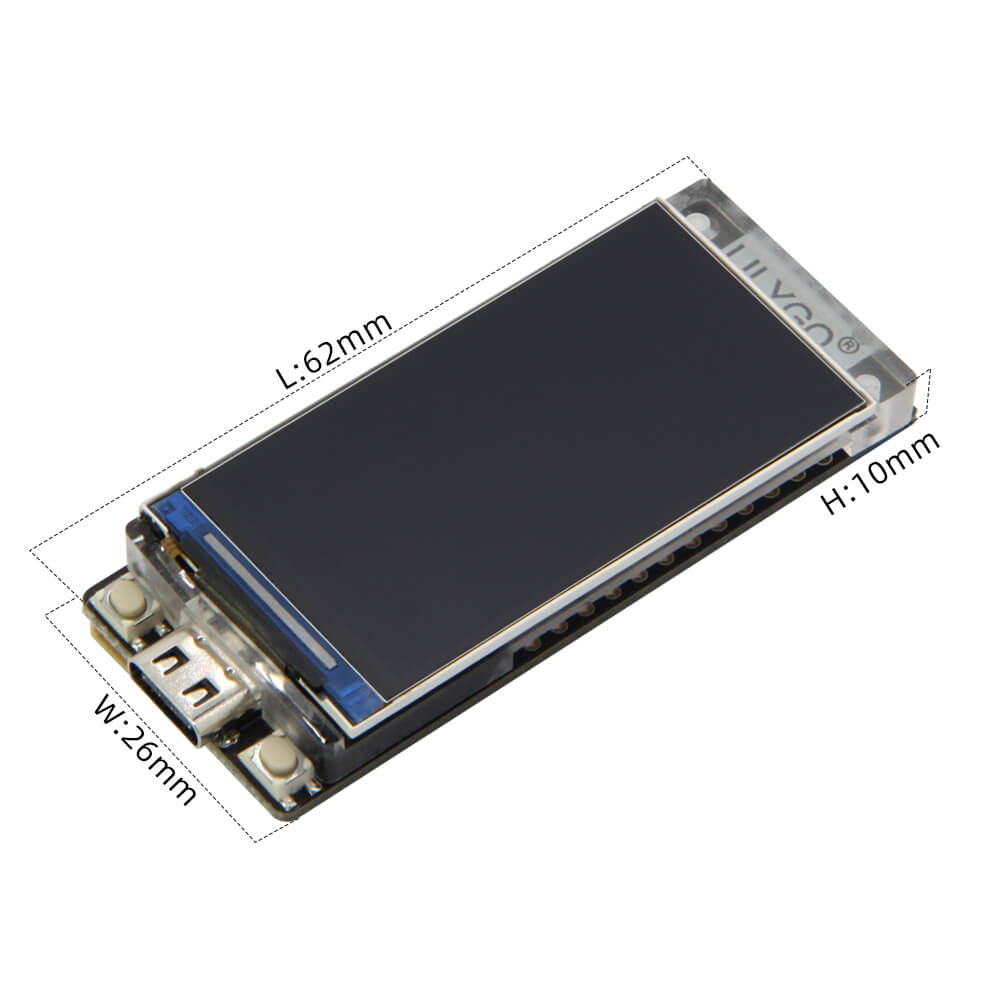

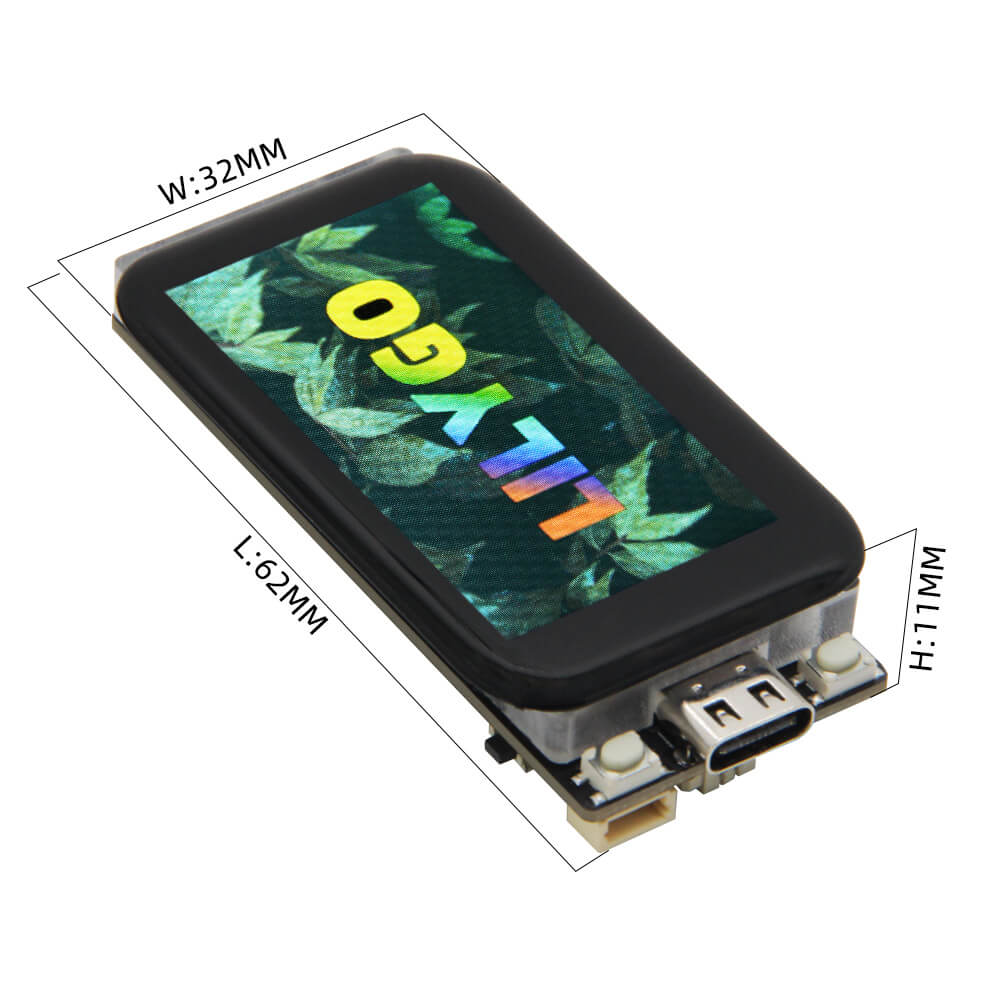

1. Size

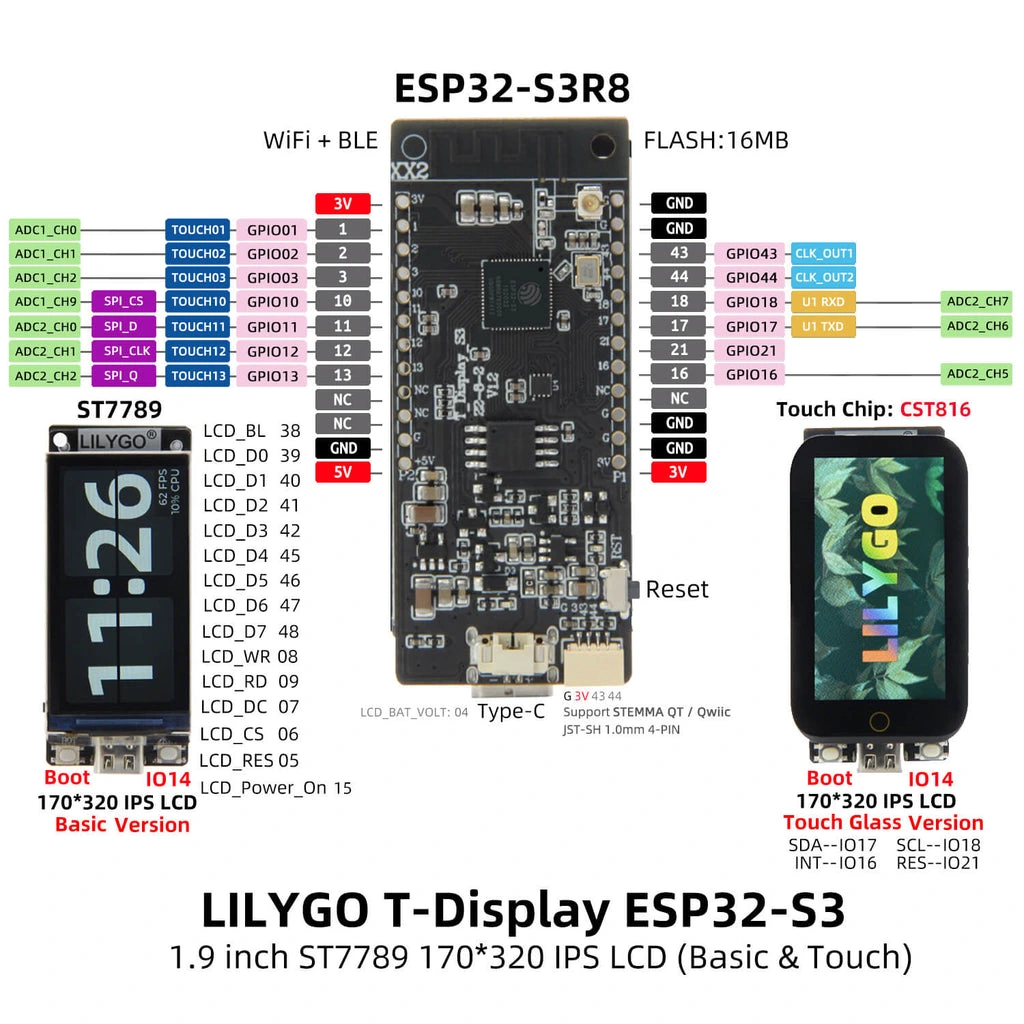

2. Pin Diagram
basic version

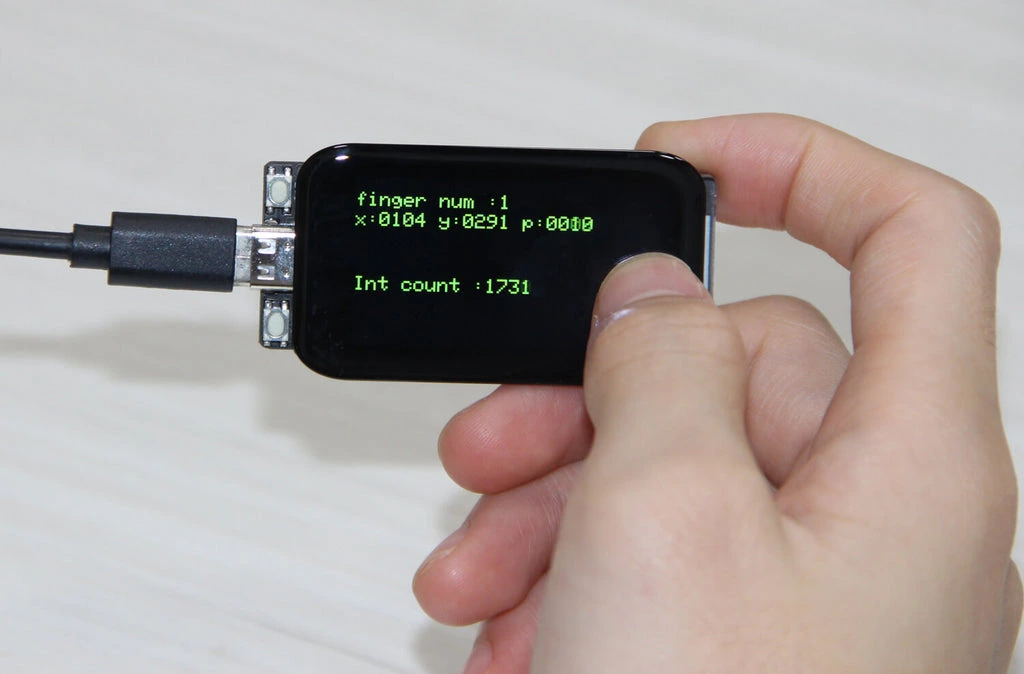

Touch Version
More details
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat voltage detection | IO04 |
| Onboard functions | Boot + Reset + IO14 Button |
| LCD | 1.9″ diagonal, Full-color TFT Display |
| Drive Chip | ST7789V |
| Resolution | 170(H)RGB x320(V) 8-Bit Parallel Interface |
| Working power supply | 3.3v |
| Support | STEMMA QT / Qwiic
JST-SH 1.0mm 4-PIN |
| Connector | JST-GH 1.25mm 2PIN |

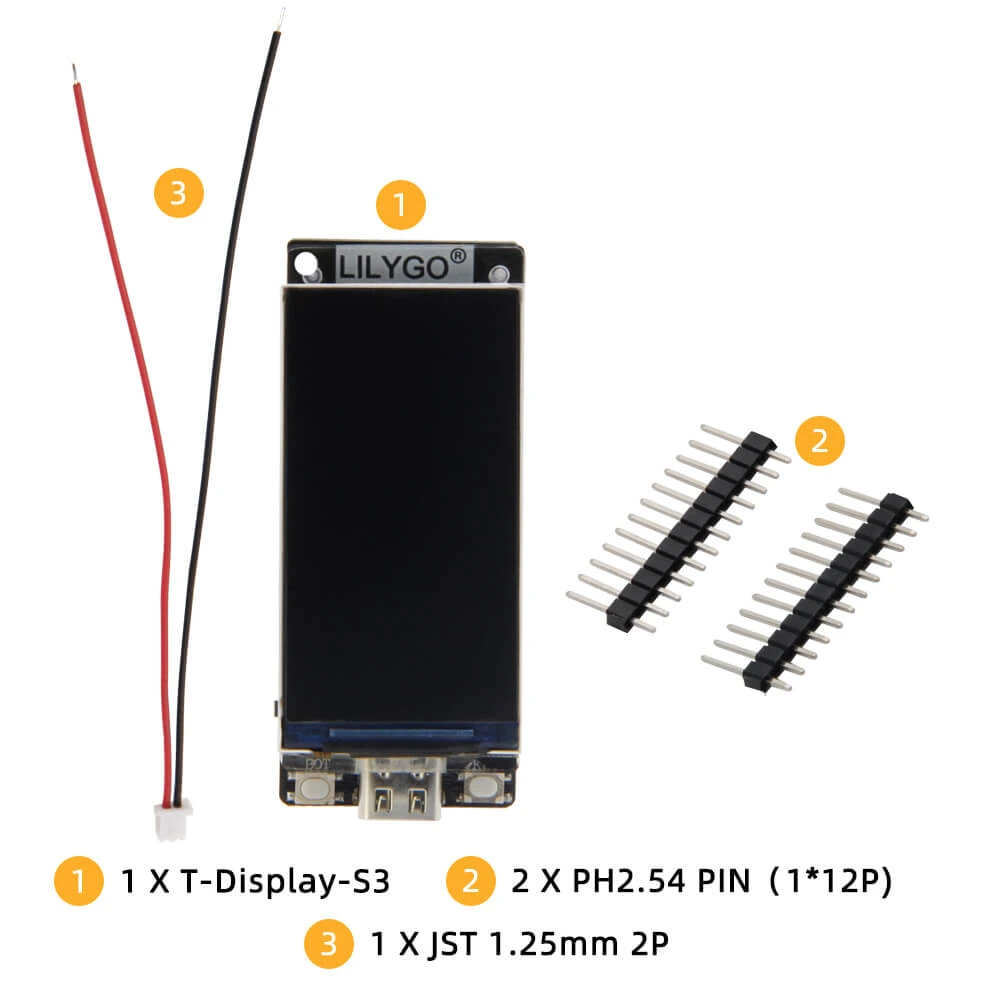

Includes

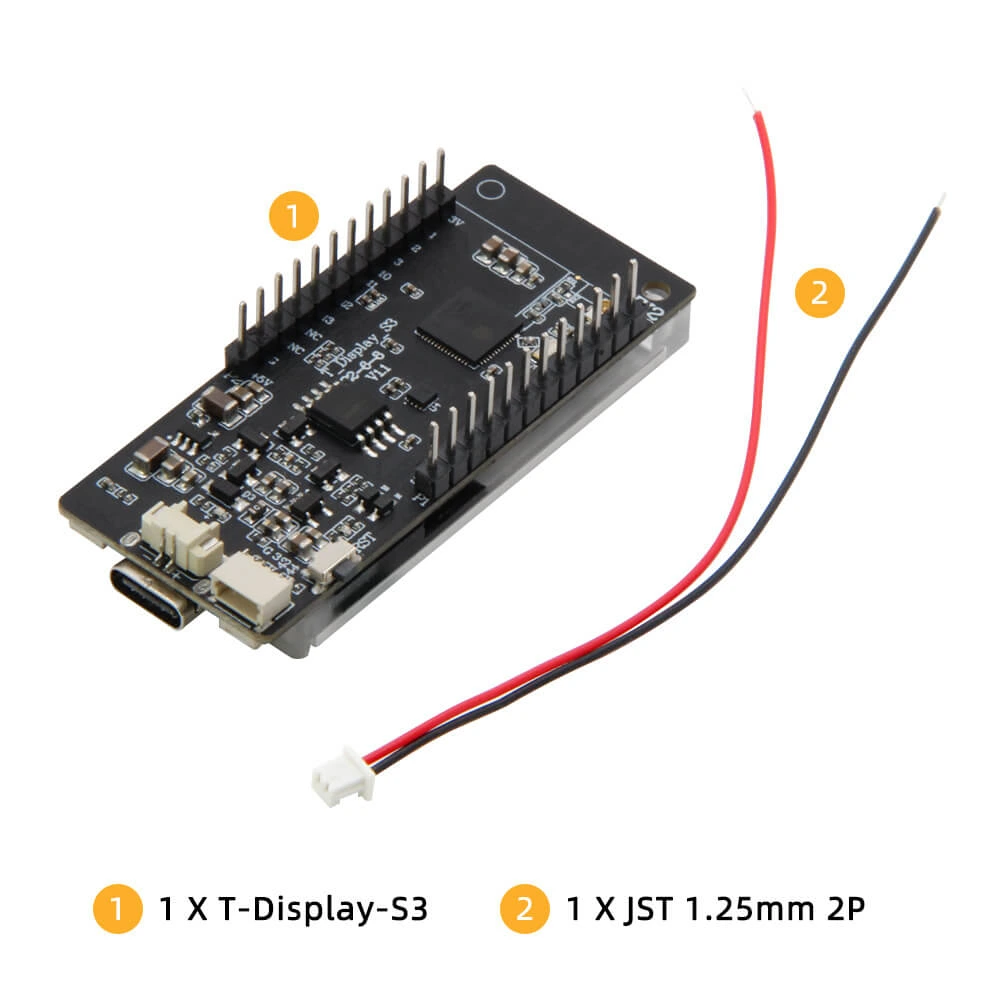

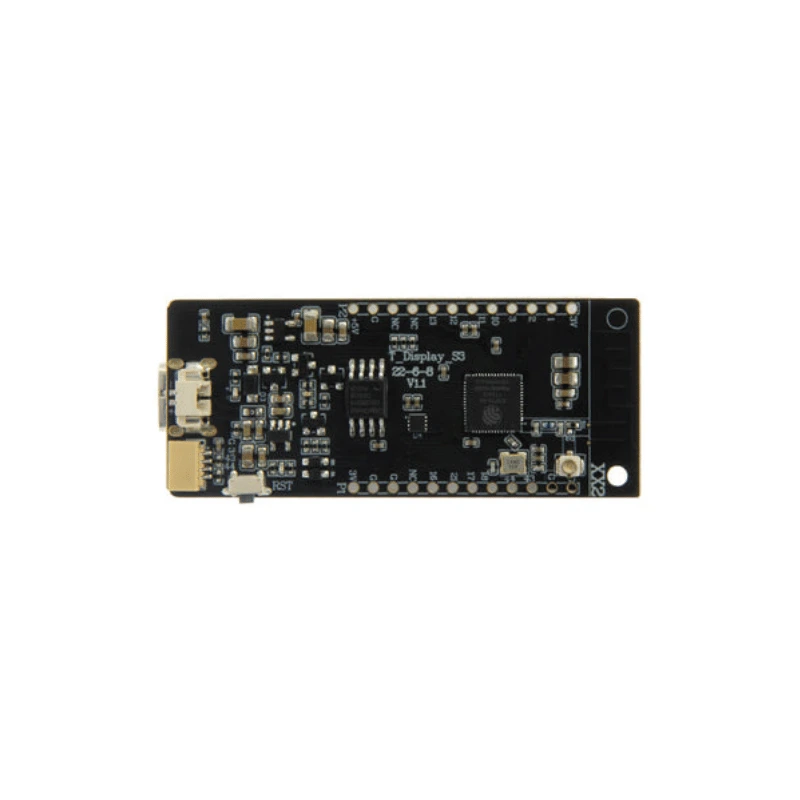

Not Solder Version

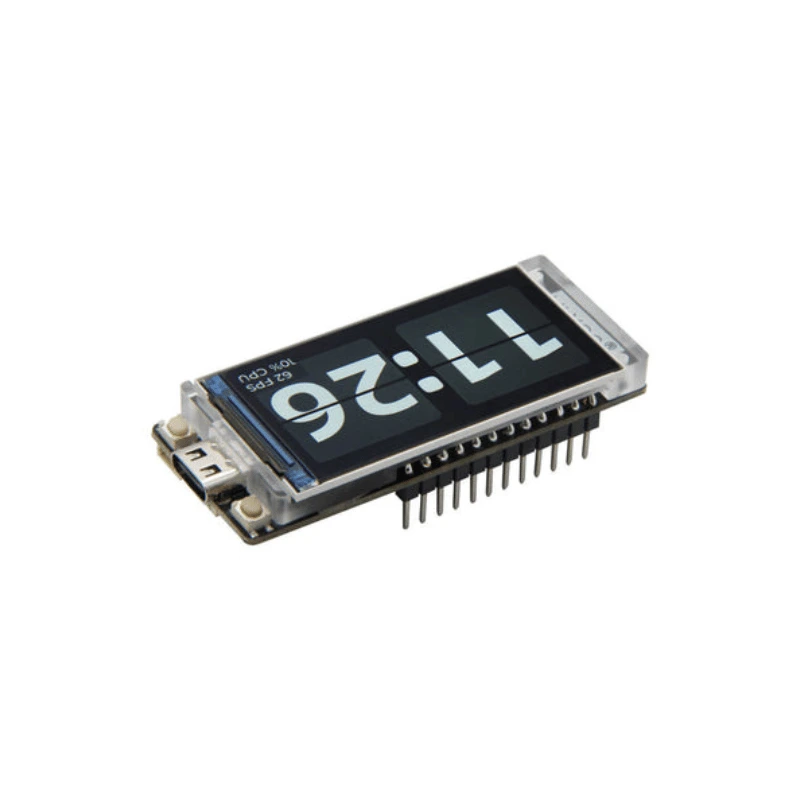

Solder Version

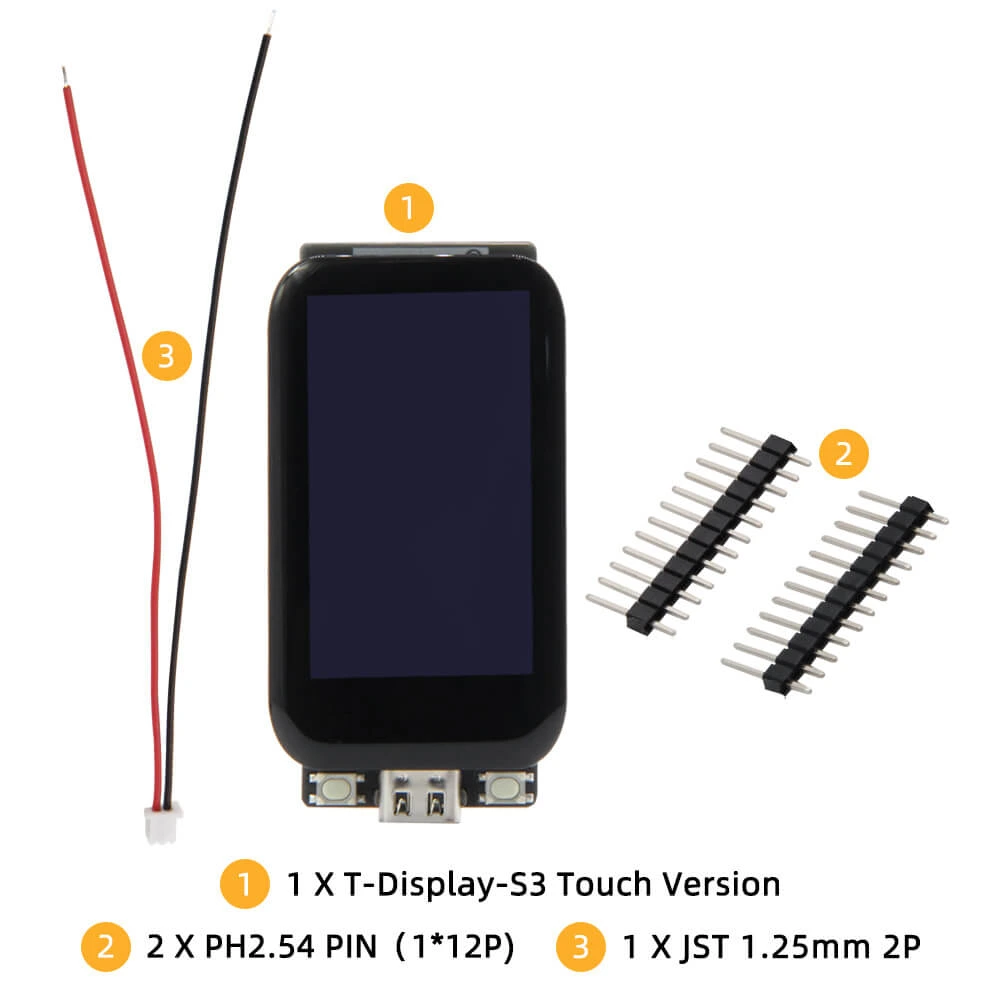

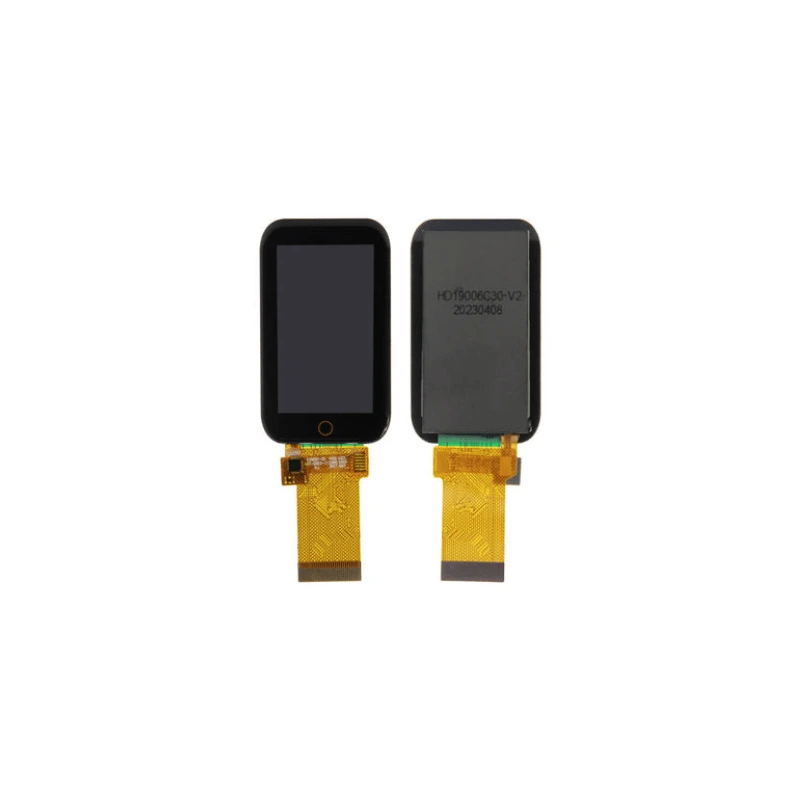

Touch Version

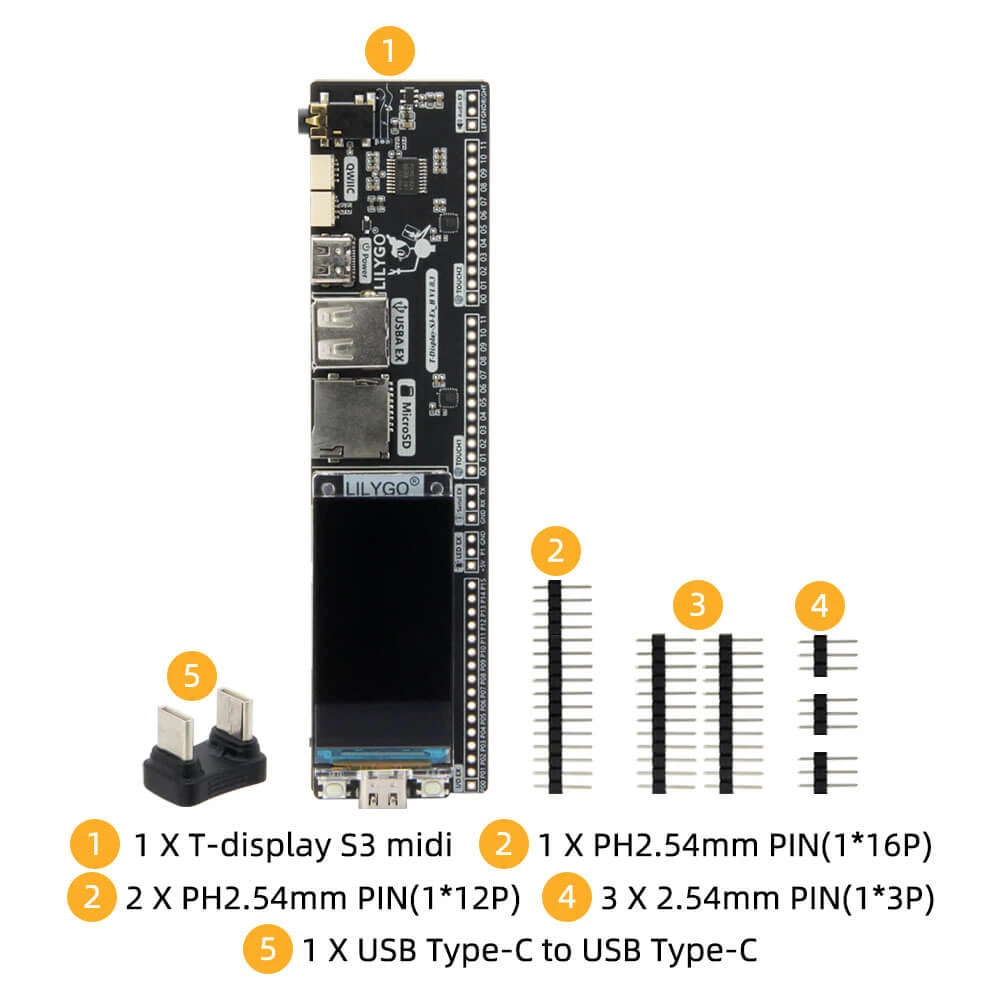

Only MIDI Board
[Please note that the package does not include the T-Display S3 device, only the MIDI Board, please select the appropriate version of the S3 to use with the MIDI Board according to your needs].
