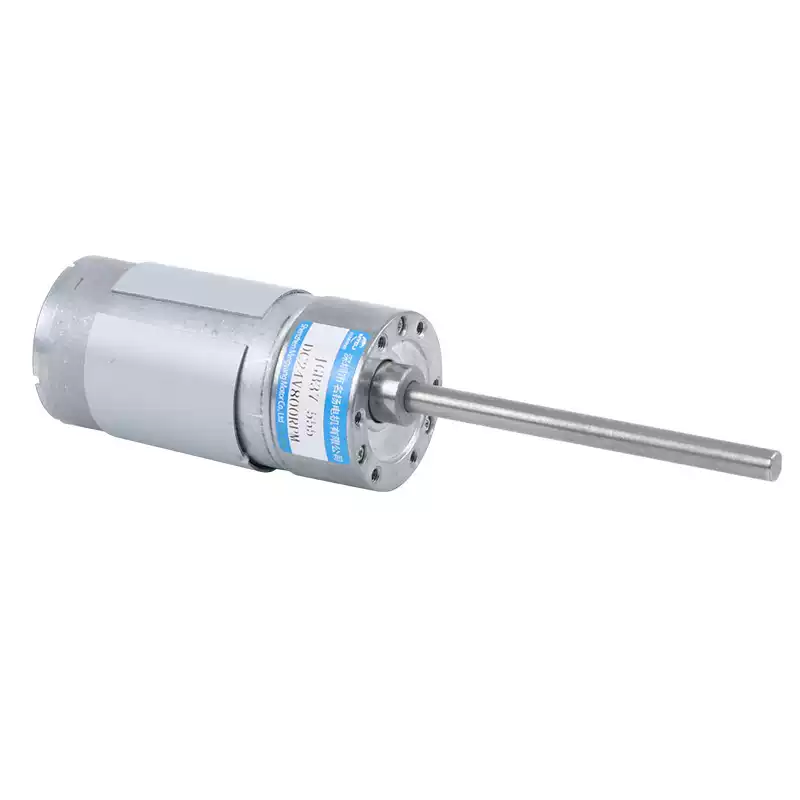

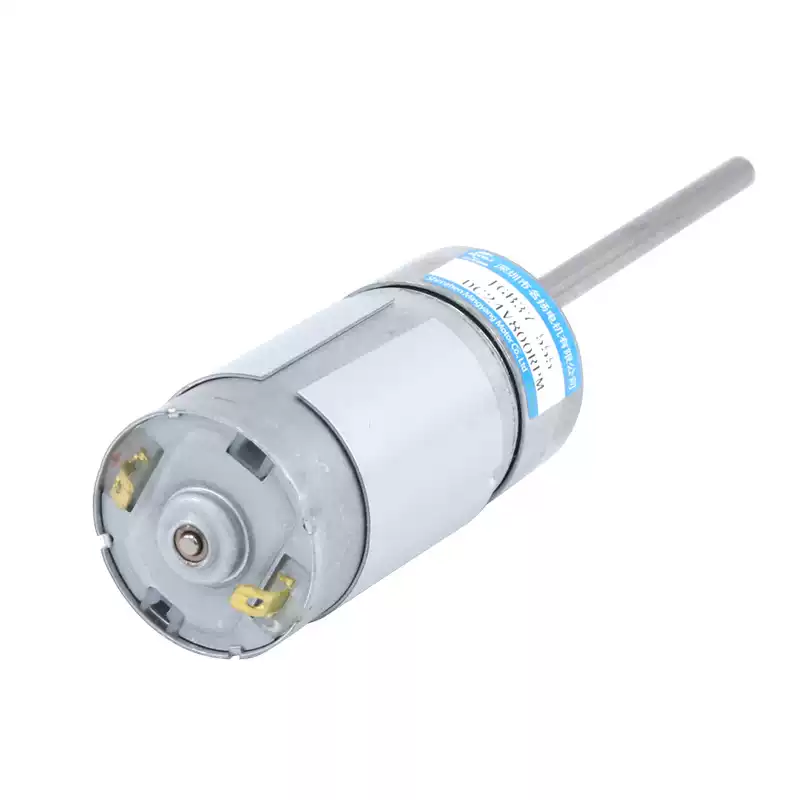

JGB37-555 DC Gear Motor , Adjustable Speed
- High Torque and Customizable Design: The JGB37-555 DC gear motor offers a rated torque of 70 lbs and features a customizable 75mm extended shaft, providing versatility for various applications.
- Full Metal Gear Construction: Built with all-metal gears, the motor ensures smooth transmission, high wear resistance, and large torque output, ensuring durability and efficiency.
- Adjustable Speed and Direction: The motor supports forward/reverse rotation and PWM speed control, allowing for precise speed adjustments and flexible operation.
- Low Noise Operation: Operating at a quiet 50dB, this motor is perfect for environments where noise control is essential.
- Durable and Efficient: With a pure copper core, strong magnets, and thickened carbon brushes, the motor provides long-lasting performance, low power consumption, and stable operation.
€10,00
The JGB37-555 DC 12V/24V DC Gear Motor features a full metal gear design and a customizable 75mm extended shaft. With a rated torque of 70 lbs, this motor offers smooth, stable operation and high durability. It supports both forward/reverse rotation and PWM speed control, making it versatile for various applications. The motor includes a high-performance lubrication system to reduce friction, improve power transfer efficiency, and maintain a low noise level (50dB). Ideal for use in environments requiring adjustable speed, high torque, and reliable performance.
Features:
- Full Metal Gear Design: All gears are made of metal for smooth transmission, high wear resistance, and high torque output.
- Rated Torque: 70 lbs, with the torque increased by a higher gear ratio.
- Adjustable Speed and Direction: Forward/reverse rotation control and PWM speed adjustment for precise operation.
- Low Noise Operation: The motor operates quietly at 50dB, making it suitable for noise-sensitive environments.
- Durable Construction: Features a pure copper core, strong magnets, and thickened carbon brushes for enhanced durability and long life.
- Compact Size: With a 37mm diameter and a micro body, the motor is ideal for space-constrained applications.
- Customizable Output Shaft: The 75mm extended shaft can be customized to meet specific needs.
- Efficient Lubrication: Special lubrication reduces friction, improves power efficiency, and ensures smooth operation.
Application:
The JGB37-555 DC gear motor is suitable for a wide range of applications, including:
- Robotics: Ideal for small robots requiring high torque and adjustable speed.
- Electric Vehicles: Perfect for powering small electric scooters, bikes, and other light electric vehicles.
- Automated Systems: Used in conveyors, automation machinery, and robotics requiring precise speed control and high torque.
- DIY Projects: Excellent for hobbyists and makers looking for a compact, powerful motor for various custom projects.
- Small Appliances: Suitable for small-scale mechanical tasks in household appliances or other electronic devices needing low noise and high efficiency.
Specifications
| Reduction ratio | 6.3 | 10 | 19 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| Maximum no – load speed RPM | 960 | 600 | 316 | 200 | 107 | 67 | 46 | 36 | 22 | 12 | 7 |
| L size mm | 19 | 22 | 24 | 26.5 | 29 | ||||||
| Weight ≈g | 295 | 300 | 305 | 310 | 315 | ||||||
| Input voltage | The following parameters are the data of the products measured with a DC 12V power supply | ||||||||||
| No – load current A | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Rated rotational speed RPM | 768 | 480 | 256 | 160 | 86 | 54 | 37 | 29 | 18 | 9.6 | 5.5 |
| Rated torque Kgf.cm | 0.4 | 0.8 | 1.6 | 3 | 3.5 | 5 | 6.5 | 8 | 15 | 28 | 35 |
| Rated current A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated input power W | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Ultimate load torque Kgf.cm | 1.8 | 4.2 | 8 | 12 | 16 | 25 | 28 | 32 | 60 | 70 | 70 |
| Ultimate load current A | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Ultimate load power W | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Input voltage | The following parameters are the data of the products measured with a DC 24V power supply | ||||||||||
| No – load current A | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
| Rated rotational speed RPM | 768 | 480 | 256 | 160 | 86 | 54 | 37 | 29 | 18 | 9.6 | 5.5 |
| Rated torque Kgf.cm | 0.5 | 1.2 | 2 | 3.5 | 5 | 7 | 9 | 12 | 18 | 30 | 35 |
| Rated current A | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Rated input power W | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Ultimate load torque Kgf.cm | 2.8 | 6 | 12 | 16 | 25 | 32 | 40 | 45 | 65 | 70 | 70 |
| Ultimate load current A | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Ultimate load power W | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 |
