The Waveshare Jetson Nano 4GB Developer Kit is a versatile AI development platform featuring NVIDIA’s Jetson Nano module. It provides 4GB of LPDDR4 memory and a powerful NVIDIA Maxwell GPU with 472 GFLOPS of performance, making it ideal for AI, robotics, and edge computing applications. The kit includes various interfaces such as HDMI, USB, GPIO, I2C, and MIPI-CSI, offering flexibility for connecting sensors and peripherals. Additionally, it supports NVIDIA JetPack SDK, facilitating easy development and deployment of AI models and applications. With its compact design and extensive capabilities, this developer kit is a great choice for innovative projects in artificial intelligence and machine learning.

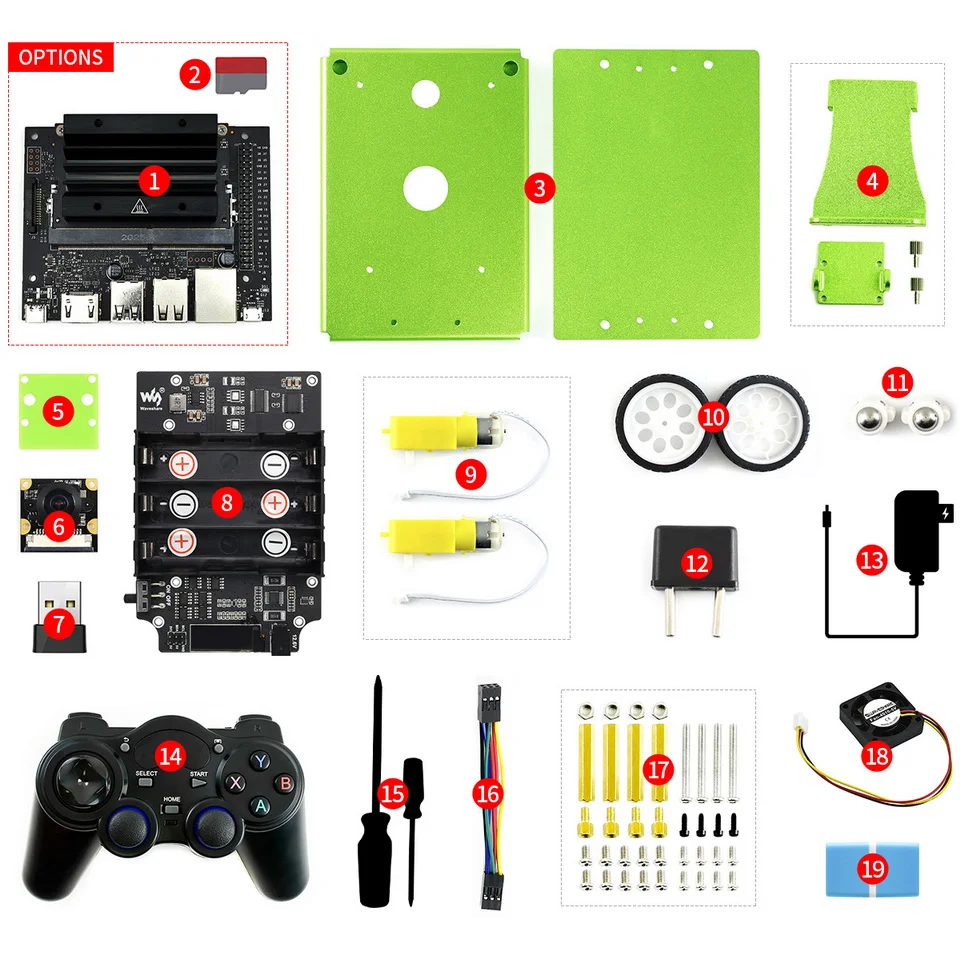

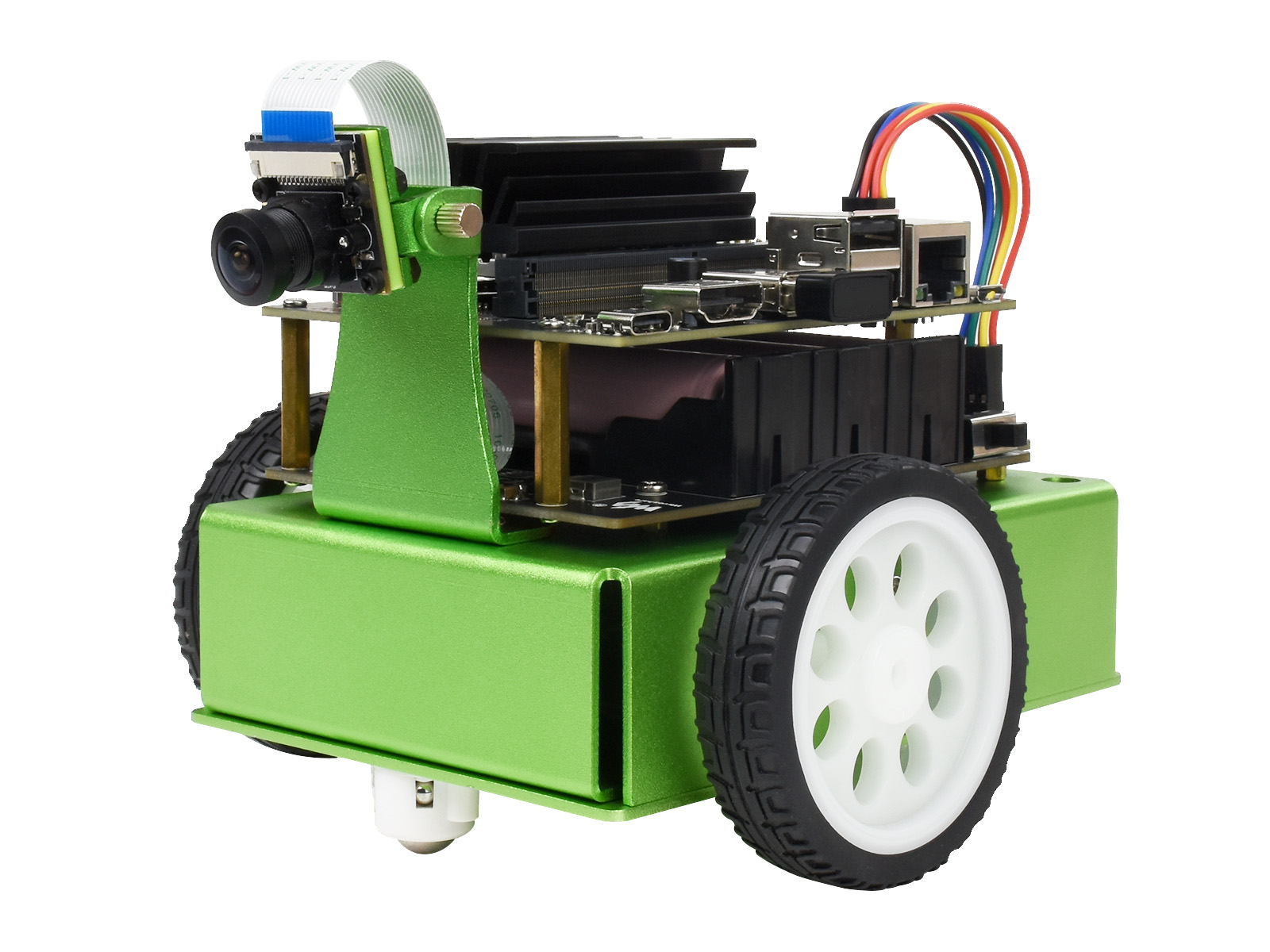

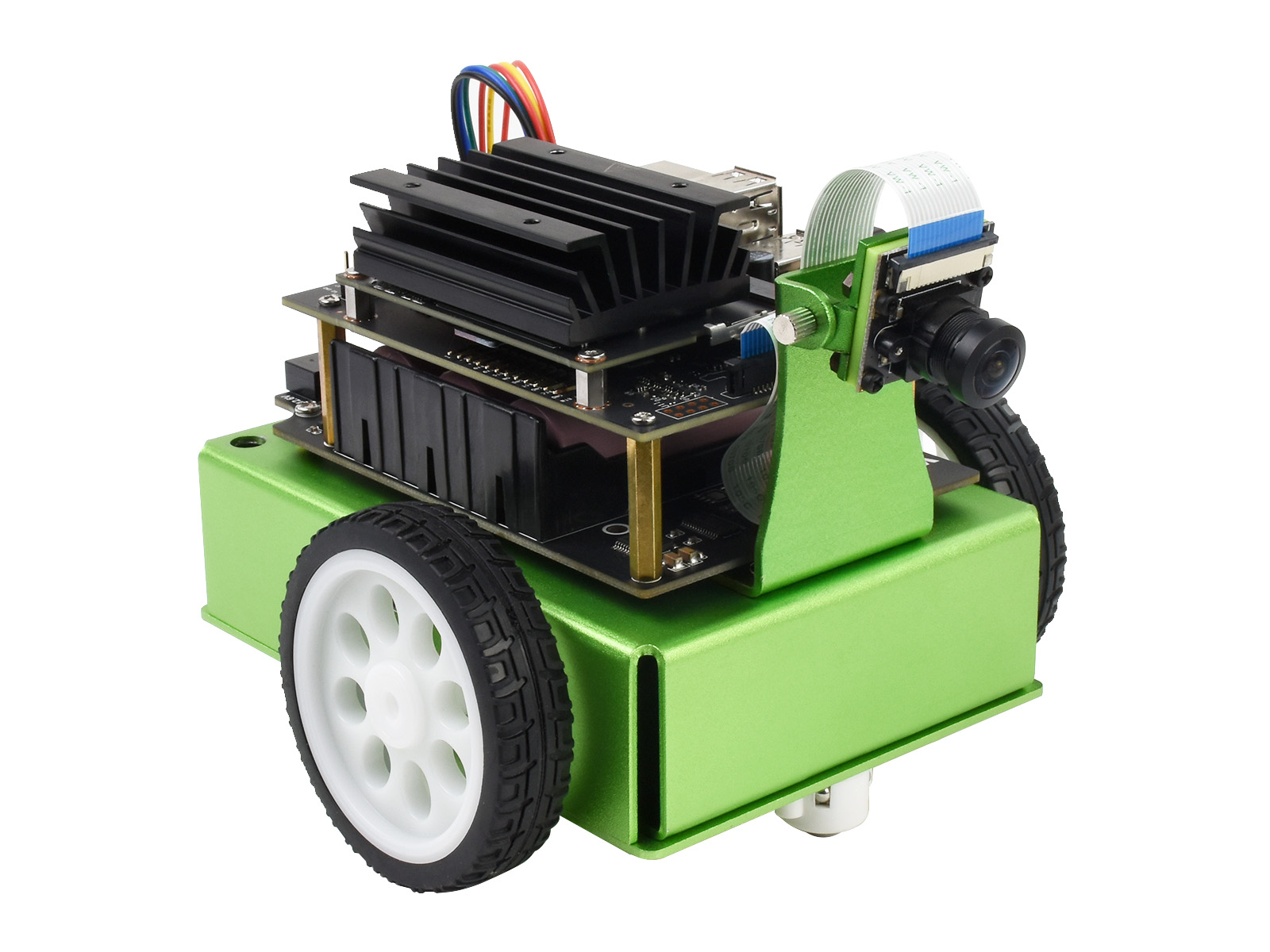

This is an AI Robot kit based on Jetson Nano Developer Kit. Supports facial recognition, object tracking, auto line following or collision avoidance and so on.

Features

• Support three 18650 batteries (not included), 7800mAh, up to 12.6V voltage output, and stronger motor power.
• Onboard S-8254AA + AO4407A lithium battery protection circuit, with anti-overcharge, anti-over-discharge, anti-over-current and short-circuit protection functions.
• The onboard APW7313 voltage regulator chip can provide a stable 5V voltage to the Jetson Nano.
• The onboard TB6612FNG dual H-bridge motor driver chip can drive the left and right motors to work.
• Onboard 0.91-inch 128 × 32 resolution OLED, real-time display of car IP address, memory, power, etc.
• The onboard ADS1115 AD acquisition chip is convenient for real-time monitoring of battery power.

Related Documents

• Jetson Nano Developer Kit User Guide
• Jetson Nano Get Start
• Jetson Nano 3D Drawing
• Jetson Nano Deverloper Kit 3D Drawing
• Jetson Download Center
• Jetson Nano Forum
• Jetson Github
