Hi-Link HLK-TX510 3D Face Recognition Module
-
High Security with Liveness Detection
Supports advanced 3D structured light and IR/RGB sensing to effectively resist spoofing attacks from photos, videos, and 3D masks. Recognition accuracy >90% with a false acceptance rate of less than 1 in 10 million. -
Offline, Ultra-Fast Performance
Operates completely offline with <30ms response time and <100ms identification time, powered by a 2 TOPS ultra-low power vision chip—perfect for real-time access control. -
Compact & Scalable Design
Stores up to 1000 facial templates, ideal for smart locks, surveillance, vending machines, and IoT applications. Compact module and development board options support flexible integration.
€39,90 – €45,00
The Hi-Link HLK-TX510 3D Face Recognition Module is a high-performance, ultra-efficient 3D face recognition module that operates offline, features liveness detection, and is powered by a low-power vision processor. It supports up to 1000 stored face features, making it ideal for secure and responsive access control in smart homes, surveillance, smart locks, vending systems, and more.
Key Features of the Hi-Link HLK-TX510 3D Face Recognition ModuleÂ
-
Offline Operation: No internet connection required
-
Liveness Detection: Resists spoofing attacks using photos, videos, or masks
-
Ultra-low Power Vision Chip: High energy efficiency with peak performance up to 2 TOPS
-
Fast & Accurate Recognition:
90% recognition rate with false acceptance rate (FAR) < 1 in 10 million
-
Response time <30ms
-
-
Supports 3D Structured Light: Enables both monocular and binocular detection using IR and RGB sensors
Technical Specifications

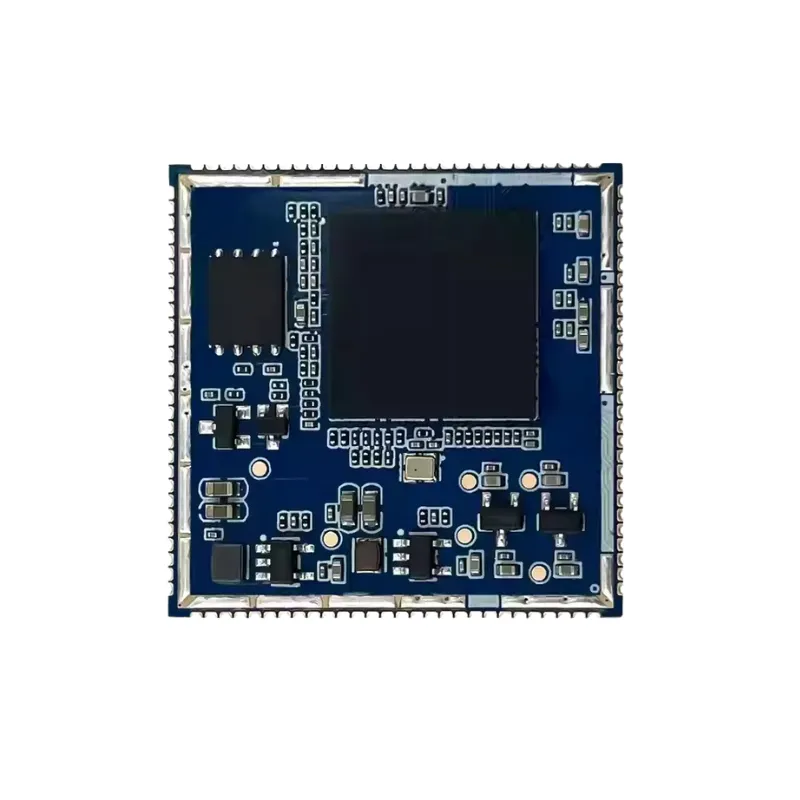

Core Module Parameters
| Parameter | Value |
|---|---|
| Product Model | HLK-TX510 |
| Processor Frequency | 400MHz (Configurable) |
| Recognition Rate | >90% (FAR < 0.00001%) |
| Recognition Speed | <100ms (Single Image) |
| Comparison Speed | <50ms (With 100,000 face database) |
| Detection Frame Rate | 30 FPS |
| Wake-Up Time | <100ms |
| Face Feature Storage | Up to 1000 faces |
| Communication | Serial (UART) |

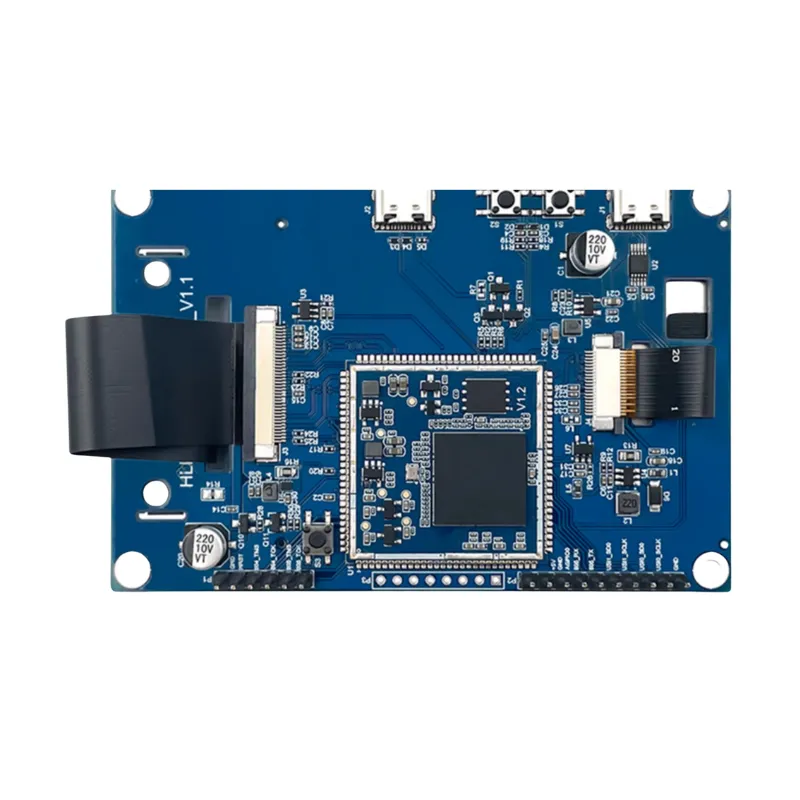

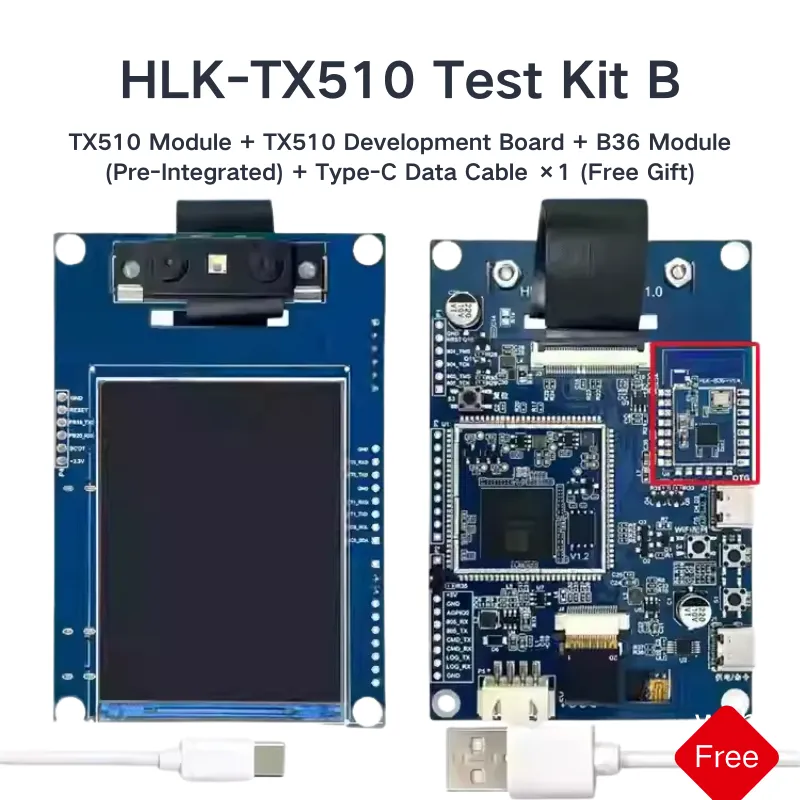

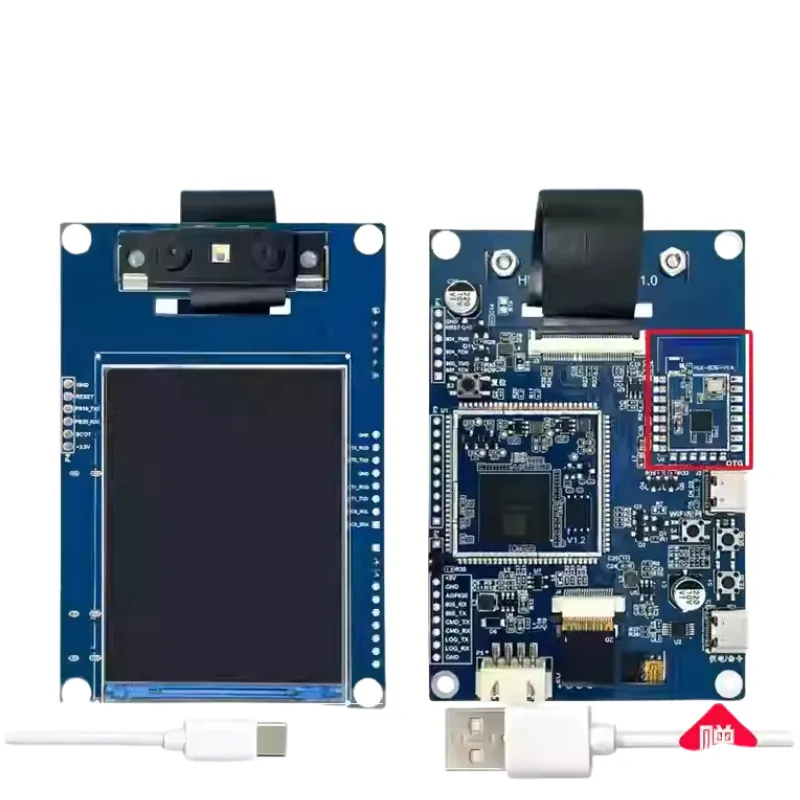

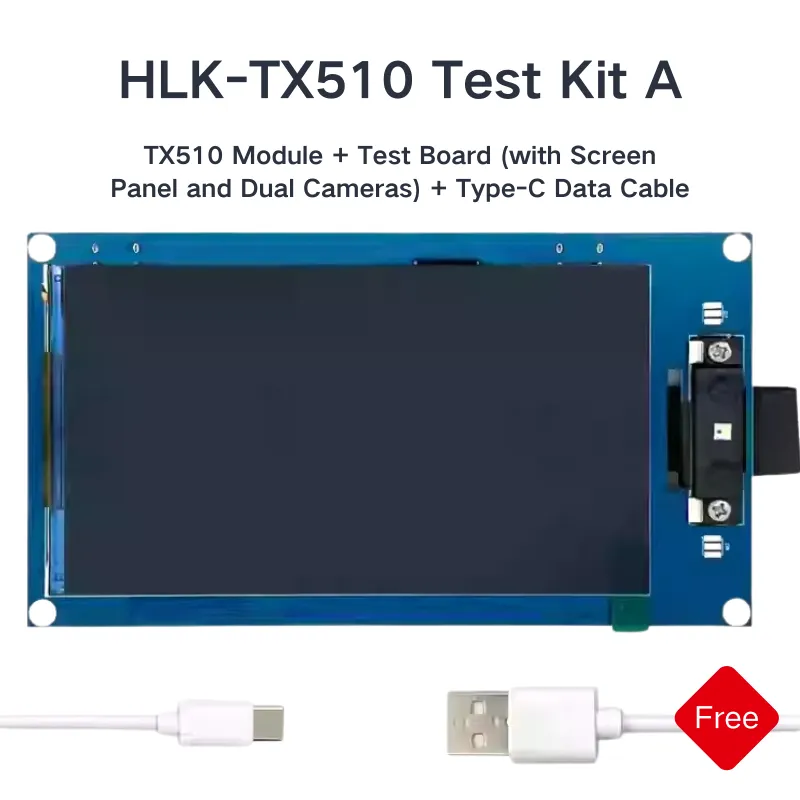

Development Board Parameters
| Parameter | Value |
|---|---|
| Power Supply | 5V / 2A |
| Display Support | 2.8″ Parallel Screen |
| Camera Support | Dual-lens (IR + RGB) |
| Interface | Type-C × 2 |
| Module Size | 31 × 31 × 2.4 mm |
| Dev Board Size | 96 × 64 × 14.5 mm |
Application Scenarios of the Hi-Link HLK-TX510 3D Face Recognition ModuleÂ
-
Smart Home Access Systems
-
Security Surveillance
-
Smart Door Locks
-
Vending and Self-Service Kiosks
