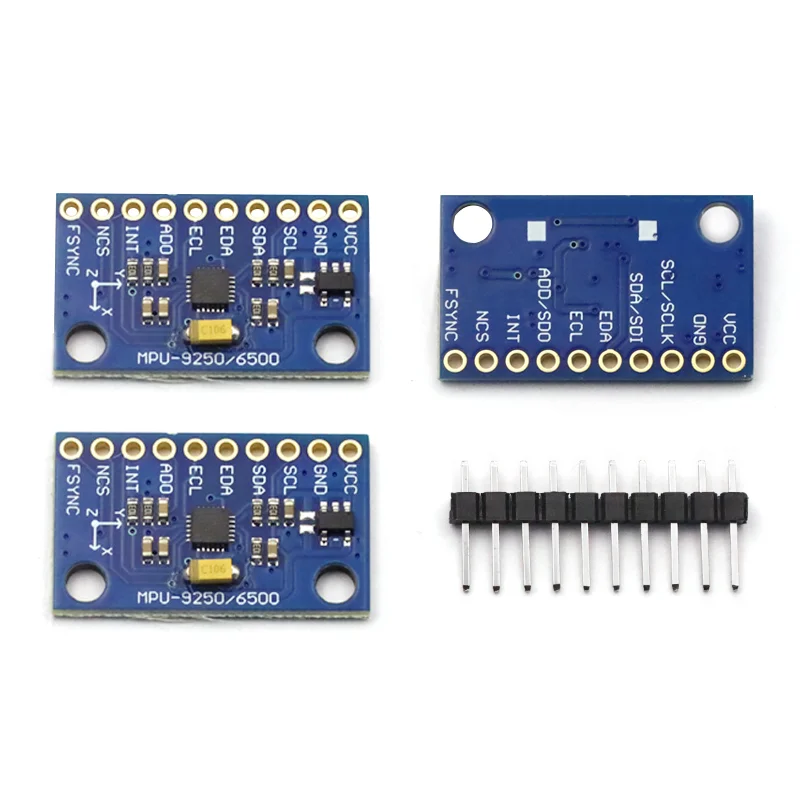

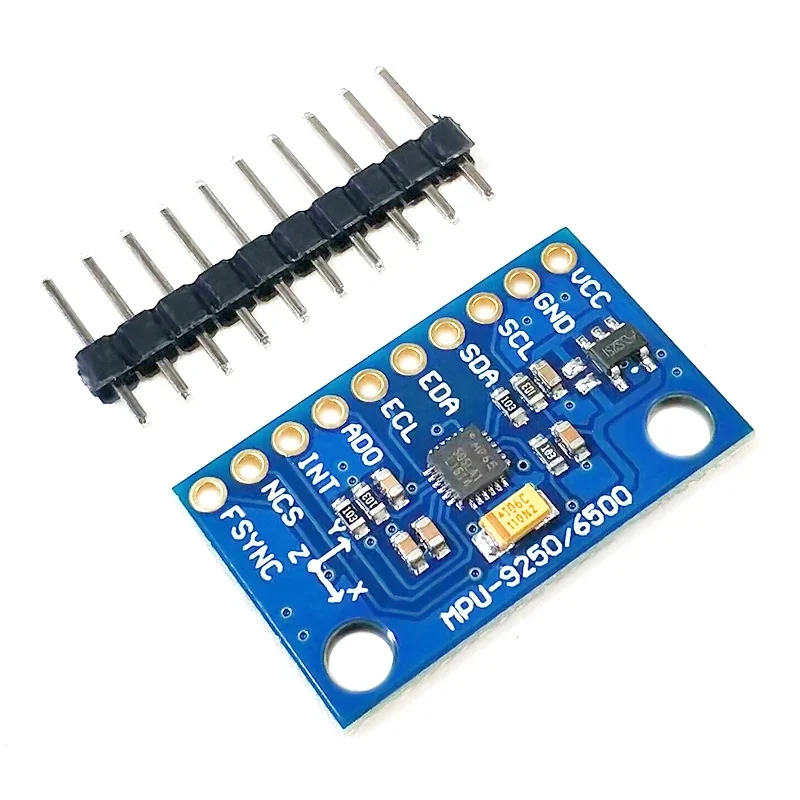

GY-9250 MPU9250 9-Axis IMU Module
SKU: SMA-019
- The GY-9250 IMU module uses the MPU-9250 chip, which combines a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into a single, compact package for precise motion and orientation sensing.
- Exquisite Quality
The module features an immersion gold PCB and integrates the AK8963 3-axis magnetometer, offering improved sensitivity of 0.15 μT/LSB and a reduced size compared to previous generations. It also includes a 16-bit ADC with 16-bit data output for accurate measurements. - Power Supply & Communication
Powered by 3-5V (with an internal low dropout voltage regulator), the MPU-9250 IMU supports standard IIC communication protocol, ensuring efficient data transmission and easy integration with various systems.
€11,30
The second-generation 9-axis IMU combination sensor integrates a 6-axis Inertial Measurement Unit (accelerometer + gyroscope) and a 3-axis magnetometer into a 3mm × 3mm QFN package, reducing the area by 45% compared to the previous generation. The reduction in package size is attributed to the redesign of the 3-axis gyroscope. In the previous generation, the gyroscope’s three sensing axes used three separate structural designs, whereas the new gyroscope adopts a unified structural design. This innovation reduces the gyroscope’s area by 40%.
Feature
- Combines gyroscope, accelerometer, and magnetometer for 9-axis motion sensing.
- Compact and lightweight, suitable for space-constrained applications.
- Supports I2C and SPI communication protocols for easy integration.
- Low power consumption, ideal for battery-powered devices.
- Built with durable and reliable components for long-term use.
Specification

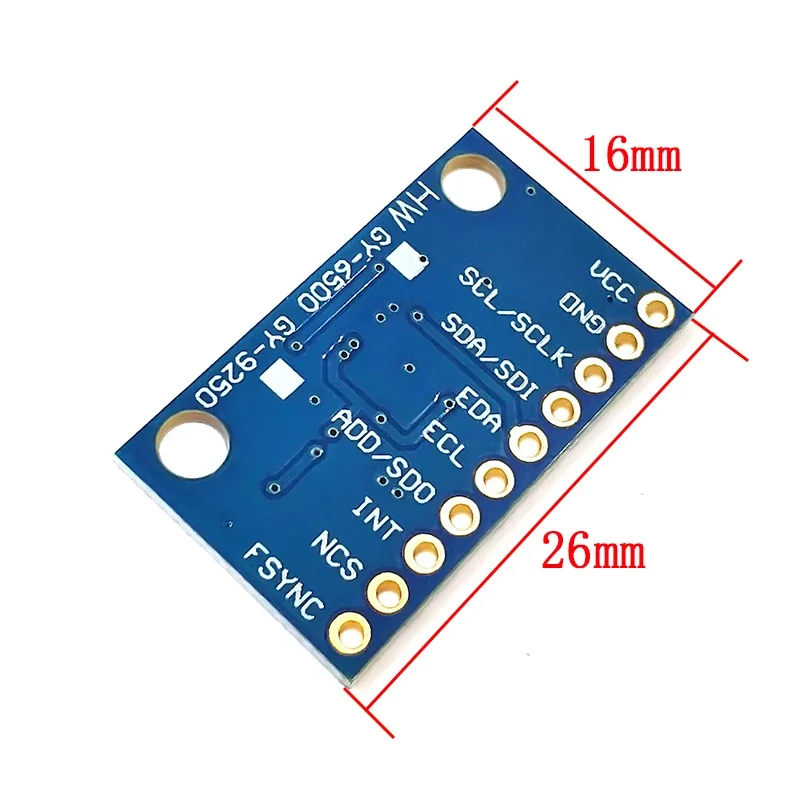

| Module Model | GY-9250 |
| Chip | MPU-9250 |
| Power Supply | 3–5V (Internal Low Voltage Regulator) |
| Communication | Standard I2C/SPI Protocol |
| ADC | 16-bit Internal Converter |
| Data Output | 16-bit |
| Gyroscope Range | ±250, ±500, ±1000, ±2000 degrees/second |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| Magnetic Field Range | ±4800 µT |
| PCB Process | Immersion Gold PCB |
| Welding Technology | Machine Soldering |
| Pin Spacing | 2.54 mm |
| Module Size | 15 mm × 25 mm |
Documents
Schematic
