EtherCAT Slave Development Based on LAN9252 & STM32F407

EtherCAT Slave Development Kit Based

EtherCAT Slave Development Kit Based on LAN9252 and STM32F407 MCU, Multiple Interfaces, Open Source Code - Image 2

EtherCAT Slave Development Kit Based on LAN9252 and STM32F407 MCU, Multiple Interfaces, Open Source Code - Image 3

EtherCAT Slave Development Kit Based on LAN9252 and STM32F407 MCU, Multiple Interfaces, Open Source Code - Image 4

EtherCAT Slave Development Kit Based on LAN9252 and STM32F407 MCU, Multiple Interfaces, Open Source Code

SKU: MI-001

EtherCAT Slave Development Board with LAN9252 + STM32F407, rich peripherals, and source code support.
LAN9252 + STM32F407 evaluation board for EtherCAT applications, featuring SPI/FSMC communication and versatile interfaces.
Compact slave controller board with OLED display, LEDs, keys, CAN, RS-485, and USB connectivity.
Ready-to-use hardware platform with schematics, firmware, and peripheral expansion for fast development.
STM32F407 + LAN9252 development kit designed for industrial communication.

€66,89

The Slave Development Board is based on the LAN9252 + STM32F407 solution. It supports both SPI serial and FSMC parallel communication modes between the MCU and LAN9252, with complete source code provided. The board integrates multiple onboard peripherals, making it convenient for evaluation, secondary development, and rapid prototyping of slave devices.

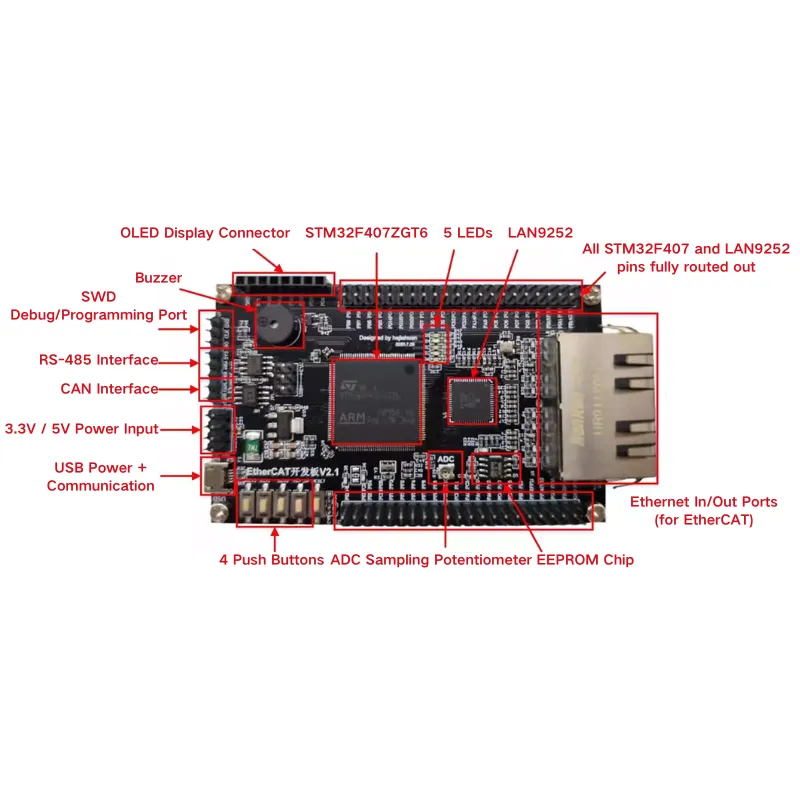

Features

MCU: STM32F407ZGT6
EtherCAT Slave Controller: LAN9252
Communication options: SPI and FSMC (parallel)
5× LED indicators
4× user buttons
OLED display connector (for parameter debugging)
Buzzer
JTAG/SWD debug port (J-Link compatible)
RS-485 interface
CAN interface
USB (power + communication)
ADC input via variable resistor (analog signal sampling)
EEPROM chip
Power supply: 3.3V / 5V
All LAN9252 and STM32F407 pins available on headers

Applications

Industrial automation controllers and modules
Motion control systems
Data acquisition and monitoring devices
Embedded communication training and education
Rapid prototyping of EtherCAT-based embedded solutions
