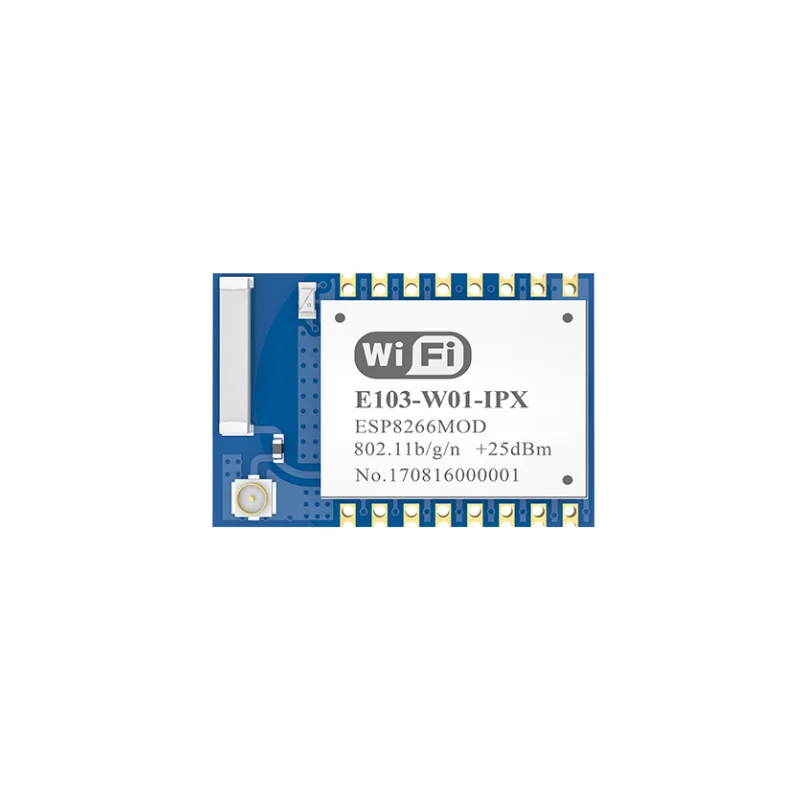

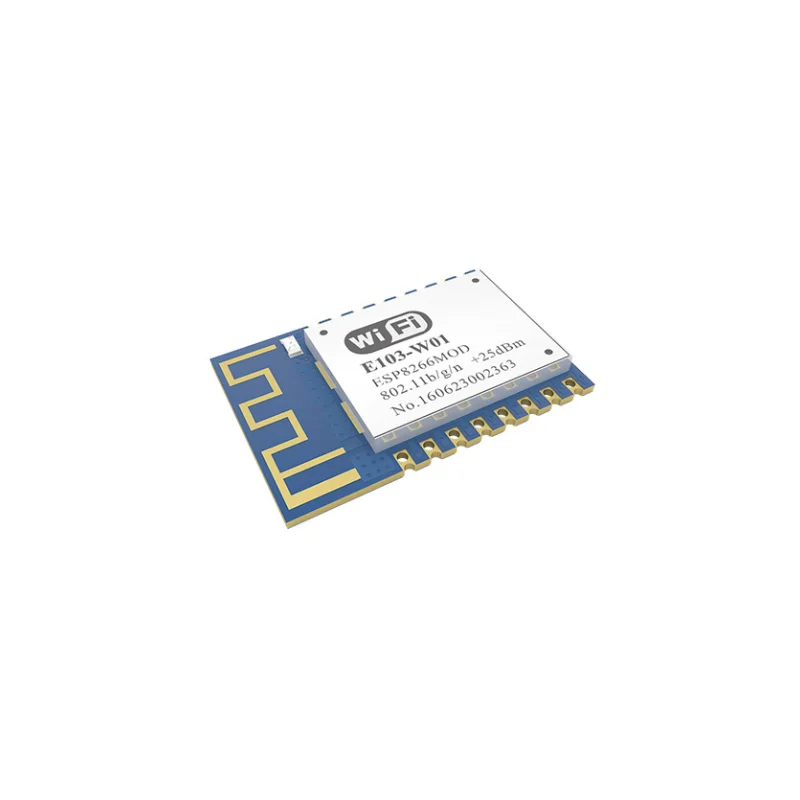

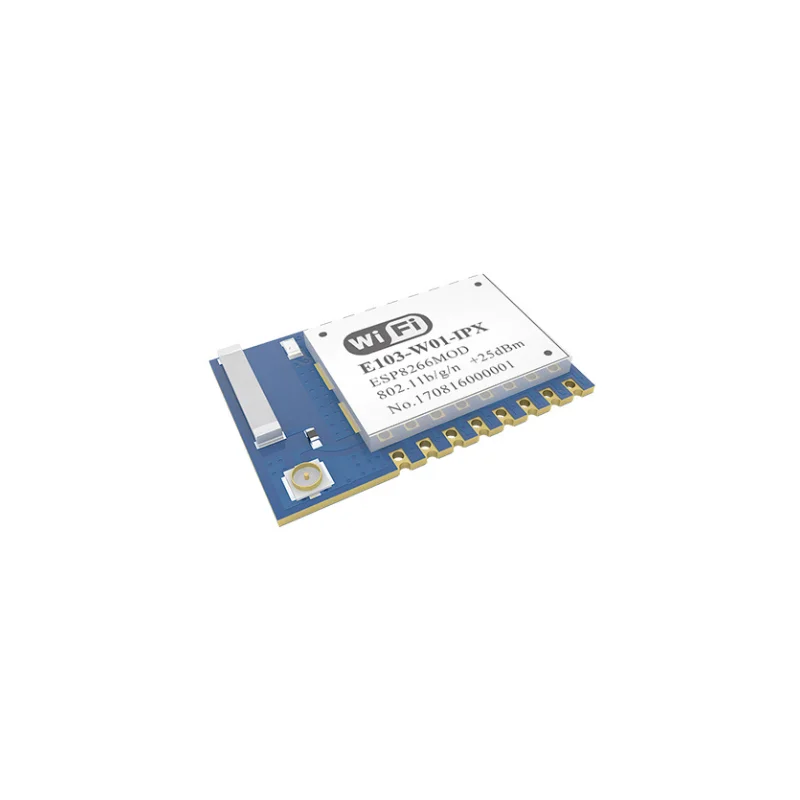

The E103-W01 Ebyte 2.4GHz Serial UART WiFi 100mW Embedded PCB Antenna ESP8266 Wireless Module is an industrial-grade Wi-Fi module based on the ESP8266EX chip, designed with a compact size, low power consumption, and multifunctionality, making it suitable for a wide range of embedded applications. It supports transparent serial transmission, Wi-Fi protocol connection, and multiple operating modes, enabling wireless communication between various devices.

The module operates with simplicity: it automatically connects to a Wi-Fi network at power-on and uses TCP Server or TCP Client protocols to exchange data. Configuration of the module is done via AT commands, and it supports SmartConfig for quick Wi-Fi network setup. Additionally, the module supports Airkiss configuration protocol, allowing for easy network setup via WeChat.

The module not only supports transparent transmission but also supports multiple communication protocols, including TCP and UDP, allowing for flexible data transmission and remote control. It can connect with up to 5 remote devices, providing strong networking capabilities. The module also features a built-in watchdog timer to ensure reliable long-term operation without crashes.

Furthermore, the module supports multiple power-saving modes, including Active Mode (for maximum performance), Low Power Deep Sleep (LPDS) Mode, Sleep Mode, and Hibernate Mode, allowing users to choose the most suitable power consumption profile depending on their needs.

This module is versatile and robust, making it an ideal choice for IoT, smart metering, and remote monitoring applications. Its ability to operate reliably in extreme temperatures (-40°C to +85°C) further enhances its suitability for industrial-grade applications.

Features

• Chip: Uses the ESP8266EX original chip, providing high performance.
• Low Power Consumption & Compact Size: The module is designed for low power consumption and has a small form factor, making it ideal for embedded applications.
• Transparent Transmission: Automatic transparent serial transmission after power-on, supporting UART communication.
• Wi-Fi Functionality: Supports Wi-Fi protocols, operating on the 2.4GHz frequency band.
• Multiple Working Modes: Supports STA (Station), AP (Access Point), and STA + AP modes to cater to different application scenarios.
• Automatic Wi-Fi Connection: Automatically connects to Wi-Fi networks at power-on and connects to target devices using protocols.
• SmartConfig: Supports the SmartConfig function for quick network configuration.
• Network Protocols: Supports TCP Server, TCP Client, and UDP protocols for real-time communication and data exchange with remote devices.
• Power Modes: Offers four power consumption modes: Active, LPDS, Sleep, and Hibernate, optimizing for different usage scenarios.
• Security: Supports various encryption modes to ensure secure data transmission.
• PWM Outputs: Supports four PWM output channels.
• Temperature Resilience: The module has passed high and low-temperature tests and can function normally in environments ranging from -40°C to +85°C.
• Airkiss Protocol: Supports WeChat Airkiss configuration mode via AT commands, simplifying Wi-Fi setup.
• Additional Features: Includes a built-in watchdog timer to prevent crashes, parameter memory for power-off configuration retention, and various power-saving modes.

Application

1. Home IoT (Internet of Things): The module allows for wireless communication between devices and cloud servers via Wi-Fi, making it ideal for smart home systems, home automation, and IoT sensors.
2. Smart Metering: It can be used in smart meters for electricity, water, or gas to collect and transmit data wirelessly to a central server for remote monitoring and management.
3. Real-Time Monitoring: Suitable for environmental monitoring, industrial equipment monitoring, and other applications where real-time data exchange with remote devices or servers is required.
4. Embedded Device Networking: With a complete TCP/IP protocol stack, the module can serve as the core component for networking embedded devices and enable remote communication with other systems.
