DX-GP10 – GPS/BD GNSS, Low Power for Drones
- Update Rate: 1Hz (default)

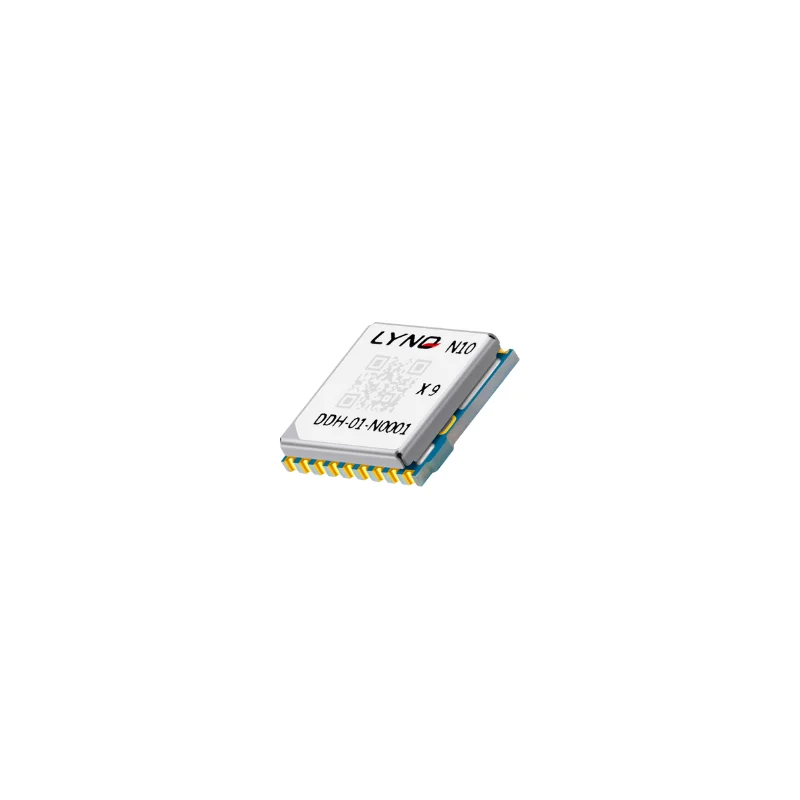

- Compact Module Size: 10.1 x 9.7 x 2.2mm
- High Positioning Accuracy: <2.0m CEP
- Multi-System Positioning: Supports GPS, BeiDou, and GLONASS
€3,77 – €5,28

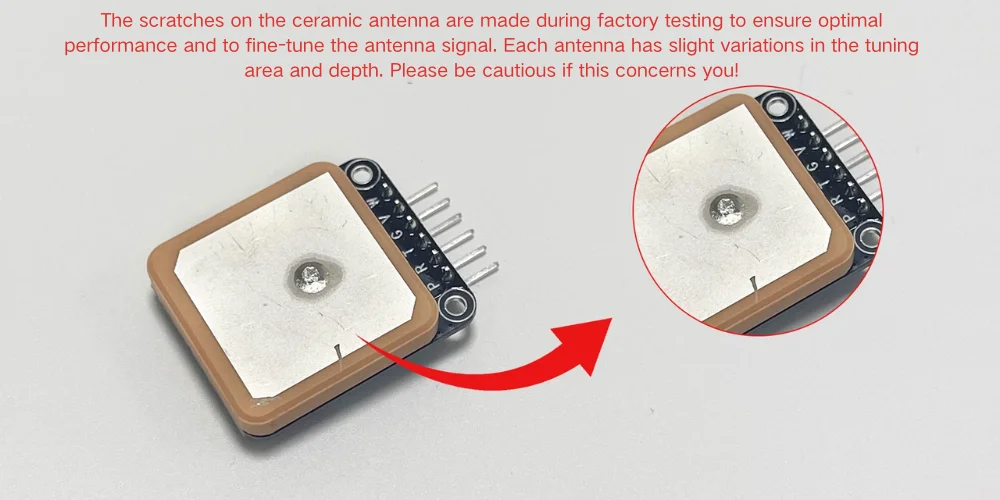

This compact and efficient GNSS positioning module is designed to deliver precise navigation with support for multi-satellite systems such as GPS, BeiDou, and GLONASS. Whether you are developing drones, wearable devices, or asset tracking solutions, this module offers an ideal solution for high-accuracy and low-power navigation, even in challenging environments. Its small size and low energy consumption make it suitable for a wide range of applications, from industrial to personal use.、
Note: Different versions have different operating voltages
| Parameter | SMD Version | With Baseboard Version |
| Operating Voltage | 3.3V | 5V |
| Positioning Accuracy | <2.0m CEP | <2.0m CEP |
| Update Rate | 1Hz (default) | 1Hz (default) |
| Hardware Interface | UART | UART |

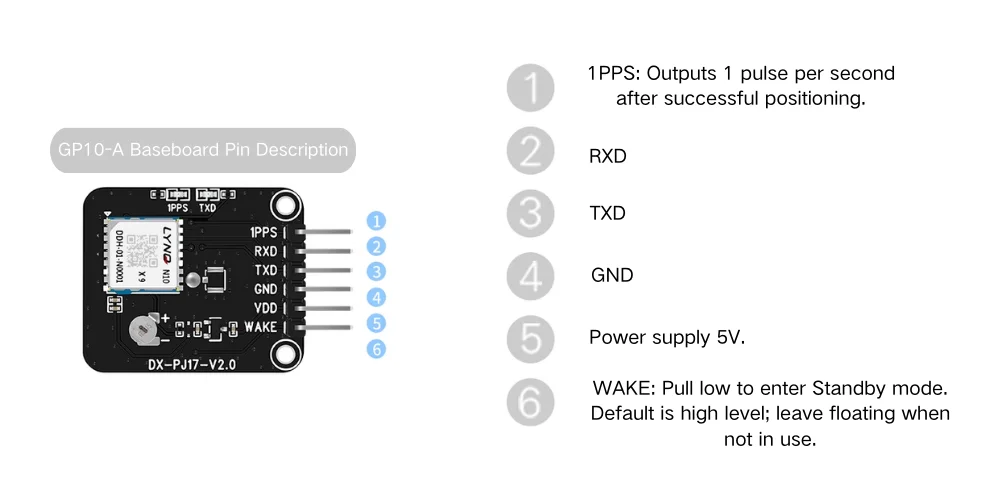

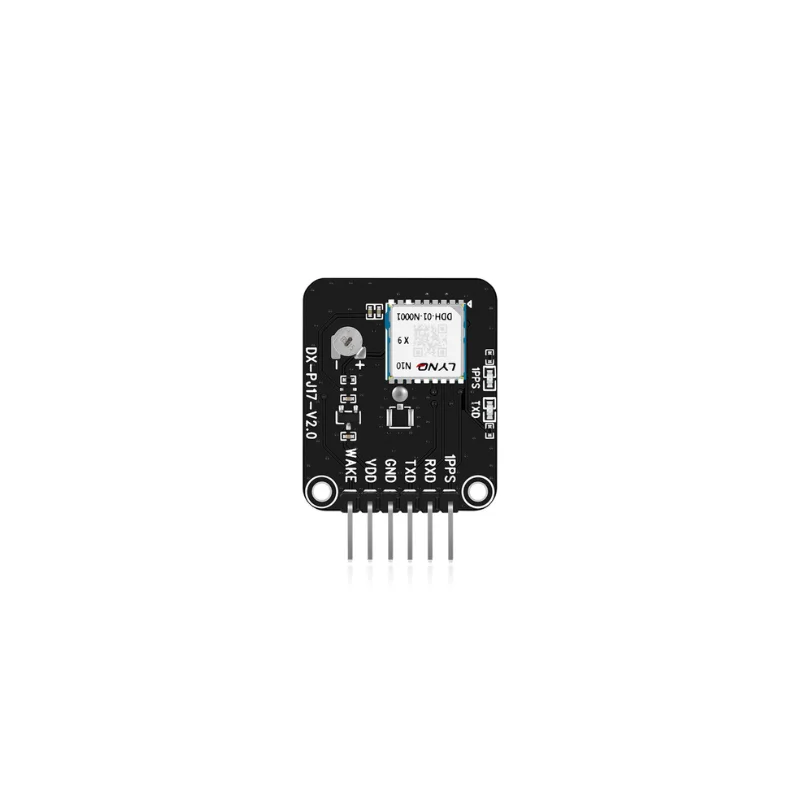

| Module Size | 10.1 x 9.7 x 2.2mm | 30 x 25 x 1.0mm |
| Operating Temperature | -40~+85°C | -40~+85°C |
| Speed | <0.1m/s | <0.1m/s |
| Certification | RoHS certified | RoHS certified |
Features:
- Multi-System Compatibility
- The module integrates GPS, BeiDou, and GLONASS positioning systems to provide excellent coverage and enhanced reliability. This multi-system support ensures superior signal stability and accuracy, even in environments where some satellite signals may be weaker or obstructed.
- Compact Design
- With dimensions of just 10.1 x 9.7 x 2.2mm, this GNSS module is incredibly compact, allowing for seamless integration into devices with strict size limitations. It is ideal for applications that require precise location tracking without compromising on size or weight.
- High Positioning Accuracy
- Offering a positioning accuracy of <2.0m CEP, this module provides the precision needed for reliable navigation, making it suitable for applications requiring accurate location data such as surveying, mapping, and asset tracking.
- Low Power Consumption
- Designed with power efficiency in mind, this module consumes minimal energy while maintaining excellent performance, making it perfect for battery-powered applications. Its low power requirements help extend the lifespan of portable devices, making it ideal for wearables, drones, and remote sensing applications.
- Wide Operating Temperature Range
- Built to operate in harsh environmental conditions, this module can function in temperatures ranging from -40°C to +85°C, ensuring reliable performance in both cold and hot climates. Whether used in outdoor, industrial, or automotive applications, the module can handle demanding environments.
- RoHS Certification
- This GNSS module is fully compliant with RoHS (Restriction of Hazardous Substances) standards, ensuring it is lead-free and meets environmental safety regulations. This makes it a responsible choice for eco-conscious manufacturers and customers.
Application:
- Drones: Provides accurate and reliable positioning for navigation and flight control.
- Pet Tracking: Enables precise location tracking for pets, ensuring their safety.
- Smart Wearables: Integrates seamlessly with wearable devices for location-based services.
- Agricultural Machinery Navigation: Assists in guiding farming equipment for precision agriculture.
- Robotics: Enhances the navigation and positioning capabilities of autonomous robots.
- Smart Traffic Systems: Facilitates real-time location tracking for intelligent traffic management.
- Trajectory Logging: Records and tracks movement over time for data analysis and planning.
- Vehicle Tracking: Offers real-time monitoring and location tracking for fleet management.
Specification
| Update Rate | 1Hz (default) |
| Module Size | 10.1×9.7×2.2mm |
| Positioning Accuracy | <2.0m CEP |
| Certification | RoHS, Lead-Free |
| Operating Temp. | -40~+85°C |
| Multi-system Positioning | GPS, BeiDou, GLONASS |
Base
| Parameter Name | Description | Performance | Min | Standard | Max | Unit | |
| Horizontal Position Accuracy (CEP) ① | – | – | – | <2.0 | – | m | |
| Test Speed | – | – | – | <1.0 | – | m/s | |
| Dynamic Performance | Maximum Altitude | – | – | 18000 | – | m | |
| Maximum Speed | – | – | 515 | – | m/s | ||
| Maximum Acceleration | – | – | 4 | – | G | ||
| GPS/GPS+BeiDou/GPS+GLONASS (TTFF) | Hot Start | – | – | <1 | – | s | |
| Cold Start | – | – | <32 | – | s | ||
| GPS Sensitivity | Cold Start Reacquisition | – | – | -148 | – | dBm | |
| Reacquisition | – | – | -160 | – | dBm | ||
| Tracking | – | – | -162 | – | dBm | ||
| GPS+BeiDou Sensitivity | Cold Start Reacquisition | – | – | -148 | – | dBm | |
| Reacquisition | – | – | -160 | – | dBm | ||
| Tracking | – | – | -162 | – | dBm | ||
| GPS+GLONASS Sensitivity | Cold Start Reacquisition | – | – | -148 | – | dBm | |
| Reacquisition | – | – | -160 | – | dBm | ||
| Tracking | – | – | -162 | – | dBm | ||
| Receiver | Update Rate | – | – | 1 | 5 | Hz | |
| Power Consumption ② | GPS | Acquisition | – | – | 22.8 | – | mA |
| Continuous Tracking | – | – | 22.5 | – | mA | ||
| GPS+BeiDou | Acquisition | – | – | 24.7 | – | mA | |
| Continuous Tracking | – | – | 24.4 | – | mA | ||
| GPS+GLONASS | Acquisition | – | – | 22.5 | – | mA | |
| Continuous Tracking | – | – | 24.4 | – | mA | ||
| GPS/GPS+BeiDou/GPS+GLONASS | Sleep Mode Current | – | – | 20 | – | uA | |
| Standby Current | – | – | 9 | – | uA | ||
HardWare Overview
PinMap
| Pin | Pin Name | I/O | Function Description | Notes |
| Power | ||||
| 8 | VCC_MAIN | PI | Main power input 2.7V~3.4V, recommended 3.3V. Recommend using LDO to supply VCC_MAIN. Ripple suppression: >60dB @ 1kHz. | Add a 10uF capacitor near the module pin for filtering. |
| 6 | VCC_BACKUP | PI | RTC backup power, input range 1.4V~3.6V, recommended 3.3V. | Leave unconnected if unused, retains configuration. |
| Interface | ||||
| 2 | TXD | DO | NMEA serial data output | – |
| 3 | RXD | DI | Receive serial data input | – |
| 5 | WAKE_UP | I | Used to enter or exit Standby mode. | Keep low to enter Standby mode. Default high, no need for pull-up. |
| 4 | 1PPS | O | Default 1PPS output, configurable pulse width output. | When positioning is successful, 1 pulse per second. |
| 18 | SET | DI/O | GNSS mode configuration: High level = BeiDou + GPS mode; Low level = GPS + GLONASS mode. | Default high level. Leave unconnected for default. |
| Reset | ||||
| 8 | RESET | DI | Reset input, low active, internal pull-up. | Leave unconnected if unused. |
| RF Interface | ||||
| 11 | GNSS_ANT | ANT | GNSS antenna interface. | RF impedance controlled at 50Ω. |
| 13 | ANT_ON | PO | Controls powered antenna external LNA enable or power off. | ANT_ON internally connects to VCC_RF when enabled. External GPIO control not allowed. Leave unconnected if unused. |
| 14 | VCC_RF | PO | Provides power to the powered antenna or external LNA and includes antenna power detection functionality. | Leave unconnected if unused. Normal working current range: 2.5~50mA. |
| GND | ||||
| 1,10,12 | GND | G | Ground | – |
| Others | ||||
| 7,15,16,17 | RESERVED | – | Reserved | – |
| Pin | Description | Pin | Description |
| PI | POWER INPUT | PO | POWER OUTPUT |
| I | INPUT | O | OUTPUT |
| DI | DIGITAL INPUT | DO | DIGITAL OUTPUT |
| DI/O | DIGITAL INPUT/OUTPUT | ANT | ANTENNA |
| G | GROUND |
