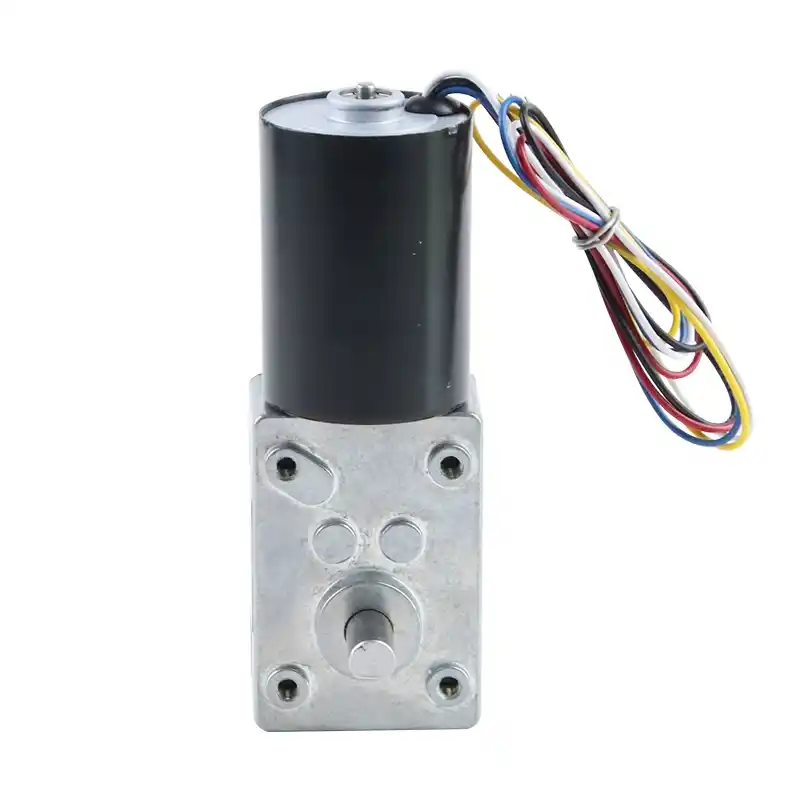

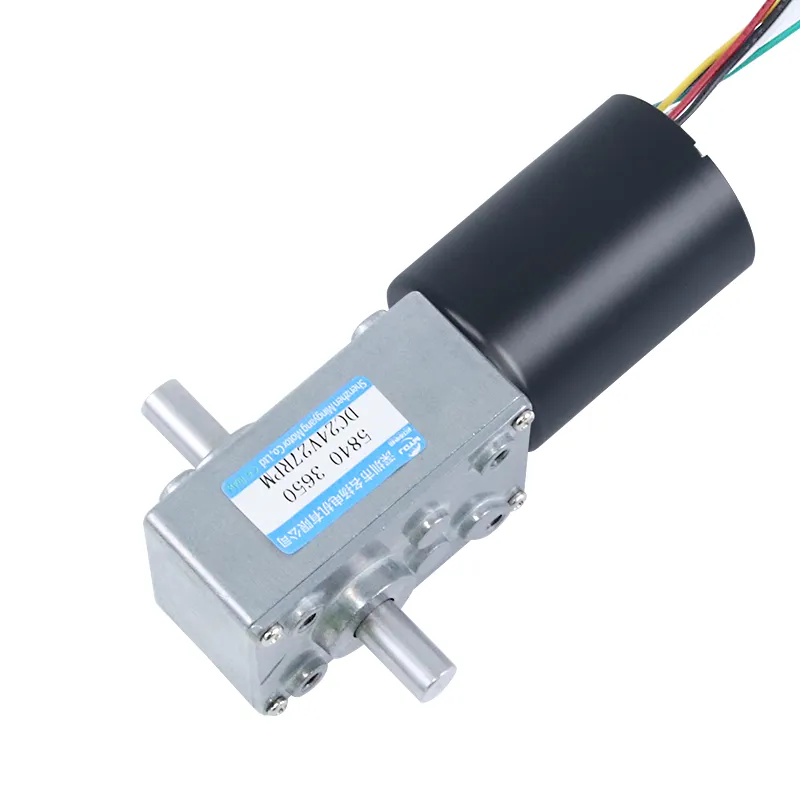

DC Gear Motor Worm Gear 5840-3650 Dual Shaft
- The 5840-3650 DC Gear Motor features a brushless design with full metal gears, offering a long lifespan of up to 30,000 hours.
- With a high torque rating of 140 lbs and a maximum load torque of 220 lbs, it delivers powerful and stable performance.
- The motor’s worm gear reduction ensures smooth operation with low noise and high efficiency.
- It supports adjustable speed via PWM control and reversible rotation by simply switching the polarity.
- The built-in self-locking mechanism enhances safety by preventing reverse rotation when the power is off.
€31,40
The 5840-3650 DC Gear Motor is a powerful, high-performance worm gear motor designed for 12V and 24V applications. It features a durable, brushless DC motor, full metal gears, and a self-locking mechanism for secure operation. With adjustable speed via PWM control and reversible rotation, this motor provides high torque, stability, and long-lasting performance.
Features:
- Brushless DC Motor: Offers a long lifespan of up to 30,000 hours, with less wear and tear compared to brushed motors.
- High Torque: Rated torque of 140 lbs and a maximum load torque of 220 lbs, providing powerful performance.
- Worm Gear Reduction: Smooth and efficient operation with a high reduction ratio for increased torque and low noise.
- Self-locking Mechanism: Prevents reverse rotation when power is off, ensuring safety and stability.
- Adjustable Speed: PWM speed control for smooth and variable speed adjustments.
- Reversible Rotation: Easy forward and reverse direction switching by reversing polarity.
Applications:
- Robotics: Ideal for use in robotics requiring precise motion control and high torque.
- Automation Systems: Suitable for automation equipment needing reliable, low-speed, high-torque motors.
- Industrial Machinery: Used in conveyors, small machines, and devices where precise and adjustable speed control is essential.
- DIY Projects: Perfect for hobbyists and engineers working on small motors and gear systems.
Specifications
| Reduction Ratio | 17 | 31 | 50 | 100 | 200 | 290 | 505 | 670 |
| The reduction ratio determines the output torque! The larger the reduction ratio, the greater the torque, and the lower the rotational speed! (It’s not the speed adjustment that determines this. Reducing the rotational speed will cause the torque to decrease accordingly.) | ||||||||
| Maximum No – load Rotational Speed (RPM) | 471 | 258 | 160 | 80 | 40 | 28 | 16 | 12 |
| Weight ≈g | 360 | 360 | 360 | 360 | 360 | 366 | 366 | 366 |
| The following parameters are for speed – measuring products using a DC 12V power supply | ||||||||
| No – load Current (A) | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 |
| Rated Rotational Speed (RPM) | 376 | 208 | 128 | 64 | 32 | 22 | 13 | 9.6 |
| Rated Torque (Kgf.cm) | 1 | 2.2 | 4 | 6 | 12 | 25 | 45 | 65 |
| Rated Current (A) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Rated Input Power (W) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Ultimate Load Torque (Kgf.cm) | 5 | 8 | 12 | 18 | 37 | 50 | 70 | 100 |
| Ultimate Load Current (A) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Ultimate Load Power (W) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| The following parameters are for speed – measuring products using a DC 24V power supply | ||||||||
| No – load Current (A) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Rated Rotational Speed (RPM) | 376 | 208 | 128 | 64 | 32 | 22 | 13 | 9.6 |
| Rated Torque (Kgf.cm) | 2 | 5 | 10 | 15 | 28 | 55 | 60 | 70 |
| Rated Current (A) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated Input Power (W) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Ultimate Load Torque (Kgf.cm) | 9 | 16 | 30 | 39 | 50 | 60 | 80 | 110 |
| Ultimate Load Current (A) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Ultimate Load Power (W) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
