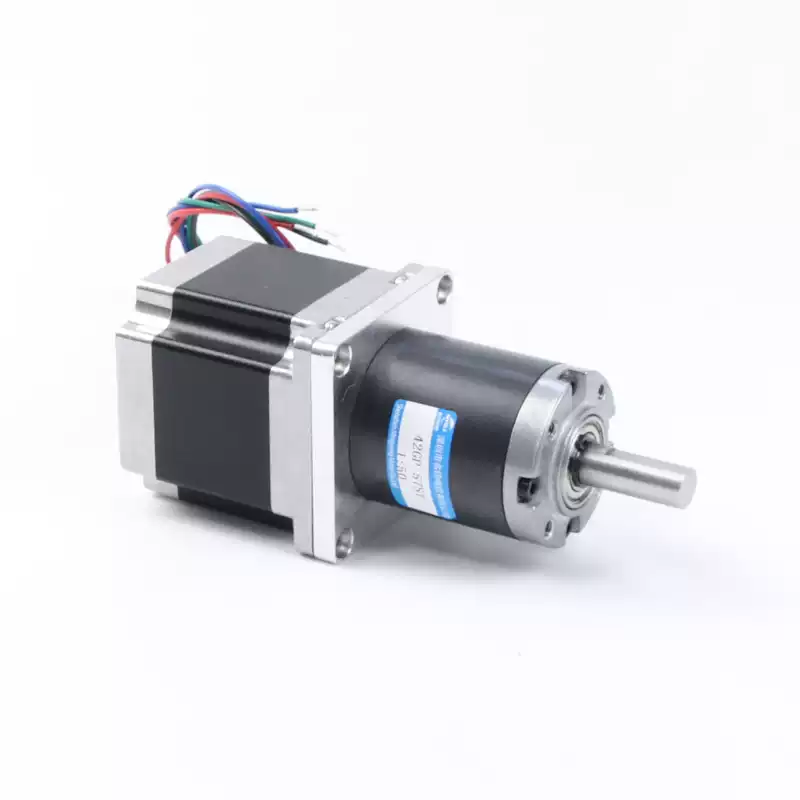

42GP-57ST Stepper Motor Worm Gear High Torque
42GP-57ST Stepper Motor Worm Gear High Torque - Image 2

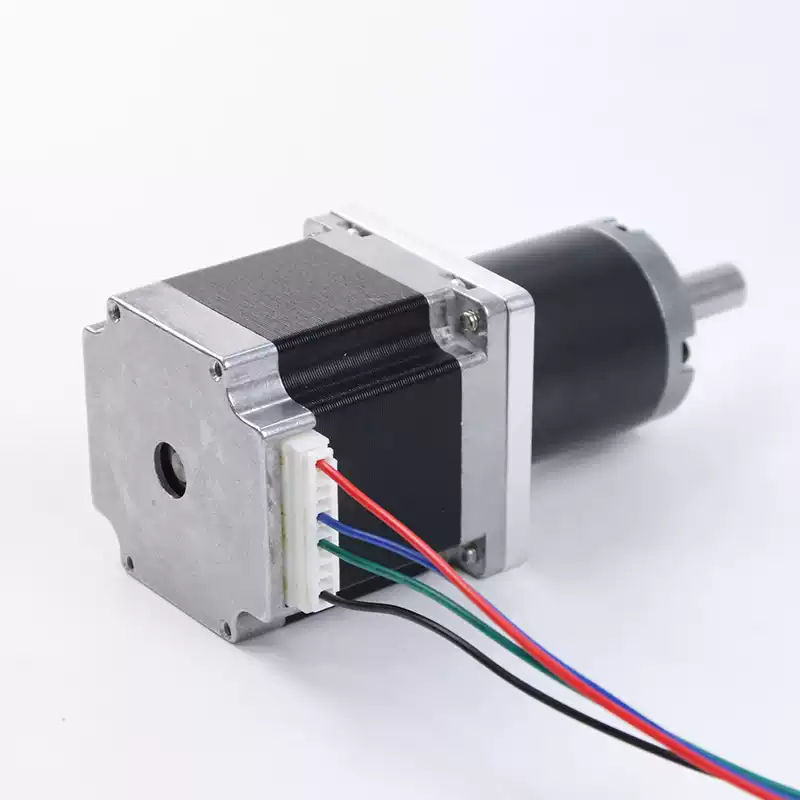

42GP-57ST Stepper Motor Worm Gear High Torque - Image 3

42GP-57ST Stepper Motor Worm Gear High Torque

  • The 57 stepper motor kit offers high precision, large power, and high torque while ensuring low noise operation.
  • It features adjustable speed and bidirectional rotation, making it ideal for various applications requiring smooth performance and high reliability.
  • The motor is built with nickel-plated steel for corrosion resistance and durability, ensuring long-term performance.
  • The full steel gear and planetary design ensure high efficiency, low noise (<58 dB), and high transmission efficiency (up to 96%).
  • With a pure copper winding and high-quality carbon steel shaft, the motor delivers low temperature rise and stable operation.

€40,20 – €54,02

The 57 Stepper Motor Kit offers high precision, large power, high torque, and low noise, with adjustable speed and bidirectional rotation. This motor is ideal for applications requiring smooth, reliable, and high-torque performance with low noise levels.

Features:

  • High Precision & Torque – Provides up to 4x higher precision and 2x greater torque compared to standard motors.
  • Corrosion Resistance & Durability – Nickel-plated with full steel material for enhanced durability and corrosion resistance.
  • Low Noise Operation – Noise levels under 50-58 dB, thanks to precision manufacturing and integrated flange and internal teeth design.
  • High Efficiency & Longevity – 96% transmission efficiency, with integrated planetary structure for increased torque and lifespan.
  • Full Steel Gear & Planetary Design – Compact, robust gear structure offering even force distribution, high reliability, and long lifespan.
  • Premium Materials – Features pure copper windings, CNC-machined D-shaft for smooth transmission, and customizability in shaft length and shape.

Application: Perfect for precision machinery, robotics, automation systems, CNC machines, and any application requiring precise control, high torque, and minimal noise. Ideal for use in high-performance industrial and mechanical systems.

Specifications

ModelReduction RatioActual Reduction RatioStagesGearbox L – lengthGear Rated LoadGear Allowable Instantaneous LoadOutput Rated Speed RPM (Revolutions per Minute)Overall Machine WeightMachine Body Length (Excluding Output Shaft)
42GP3.7 – 57STH563.73.7134mm30Kgf.cm80Kgf.cm0 – 260.00.990
42GP14 – 57STH561413.69244mm50Kgf.cm80Kgf.cm0 – 70.01100
42GP19 – 57STH561919.16650Kgf.cm100Kgf.cm0 – 50.0
42GP50 – 57STH565050.653354mm60Kgf.cm150Kgf.cm0 – 19.01.1110
42GP71 – 57STH567170.914260Kgf.cm150Kgf.cm0 – 12.0
42GP99 – 57STH569999.2798860Kgf.cm150Kgf.cm0 – 9.0
42GP187 – 57STH56187187.4161463mm120Kgf.cm180Kgf.cm0 – 4.51.2119
42GP262 – 57STH56262262.3825160Kgf.cm180Kgf.cm0 – 3.5
42GP368 – 57STH56368367.3359180Kgf.cm260Kgf.cm0 – 3.0
42GP514 – 57STH56514514.27180Kgf.cm260Kgf.cm0 – 1.8
