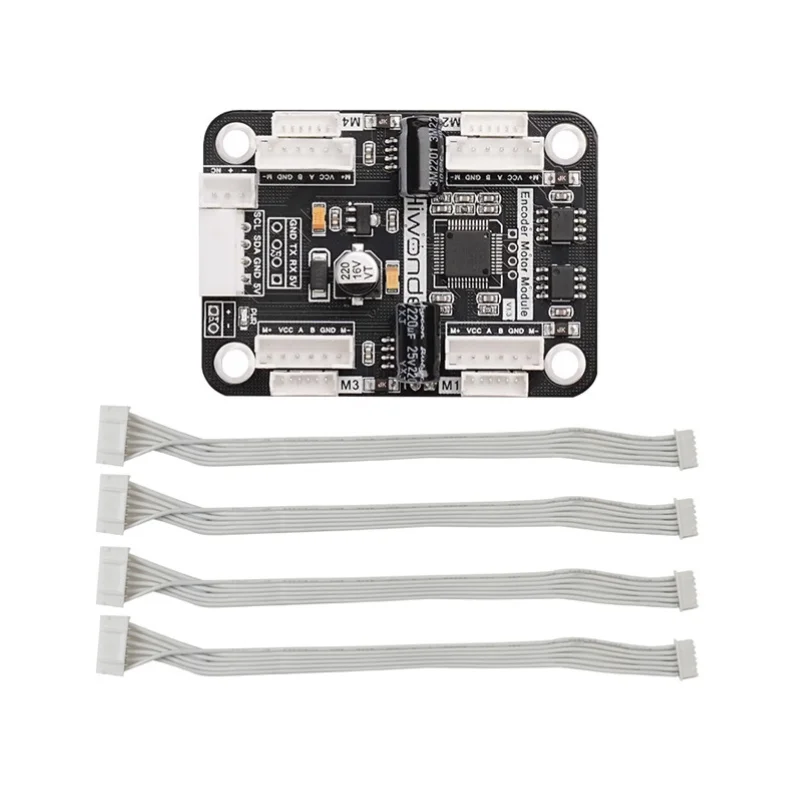

4-Channel Encoder Motor Driver Module
Drive Multiple Motors: This 4-channel encoder motor driver supports a wide range of Hall encoder TT motors and 520/310 DC gear motors commonly available in the market.
Compatible with Various Controllers: The driver works seamlessly with STM32, Arduino, Raspberry Pi 5/4B, Jetson Nano, and other popular microcontrollers.
High-Performance Driver Chip: Equipped with the SA8339 motor driver chip, this module ensures excellent performance, making it a perfect choice for electronic competitions and DIY robotic vehicles.
€12,46
The 4-channel encoder motor driver features the SA8339 high-performance motor driver chip and is compatible with STM32 microcontrollers, Raspberry Pi, Jetson Nano, and other controllers. Moreover, it supports a variety of Hall encoder TT motors and 520/310 DC gear motors available in the market. Ideal for electronic competitions and DIY robot cars, it offers versatility and reliability.

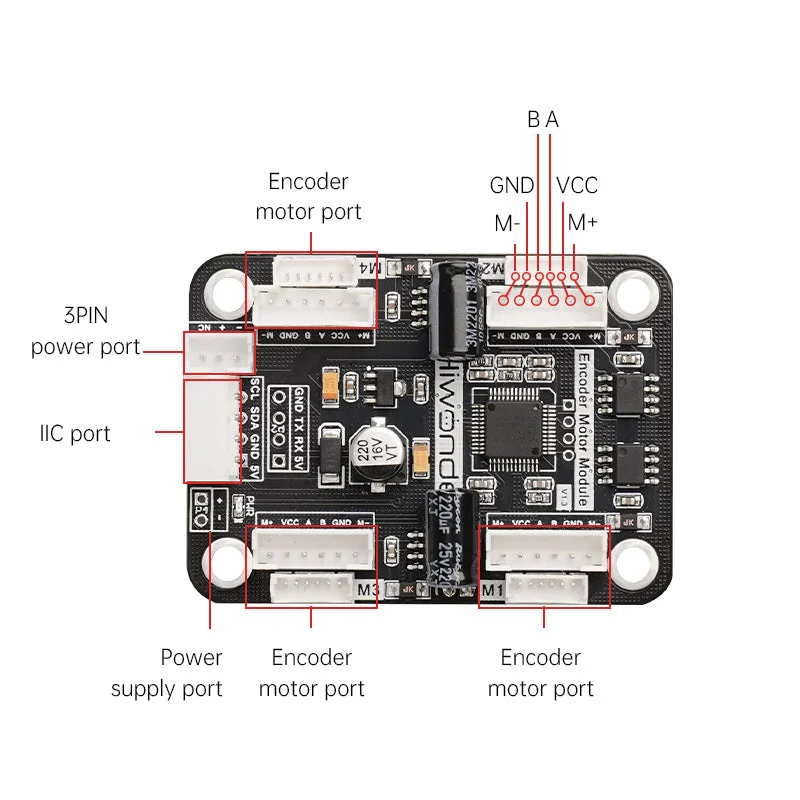

PIN Function
| Port type | Symbol | Function | Port Type | Symbol | Function |
| Encoder | GND | Hall power supply negative electrode | IIC port | SCL | Clock line |
| A | A-phase pulse signal output terminal | SDA | Bidirectional data cable | ||
| B | B-phase pulse signal output terminal | GND | Power ground wire | ||
| VCC | Hall power positive electrode | 5V | 5V DC output | ||
| M+ | Motor power positive electrode | 3PIN power port | – | Power negative electrode | |
| M- | Motor power negative electrode | + | Power positive electrode | ||
| Power supply port | + | Power positive electrode | nc | Empty | |
| – | Power negative electrode |
Specification
| Motor driver chip | SA8339 | VM power supply range | 5-15V |
| Power output | VM, 5V, 3.3V | 5V output current | 1A |
| Hall signal logic output voltage | 3.3V, 5V | Expansion board protection function | Input reverse connection protection |
| Single channel rated drive current | 2A | Single channel maximum peak | 2.5A |
