2.8 inch IPS Capacitive Touch Screen LCD Display
- Upgraded to use IPS full-viewing panel, 240×320 resolution, 280cd/m2 brightness and up to 262K RGB colors to ensure excellent display effects.
- On-board level conversion circuit, compatible with 5V and 3.3V MCUs. Adopt 4-wire SPI serial bus to save I/O pins.

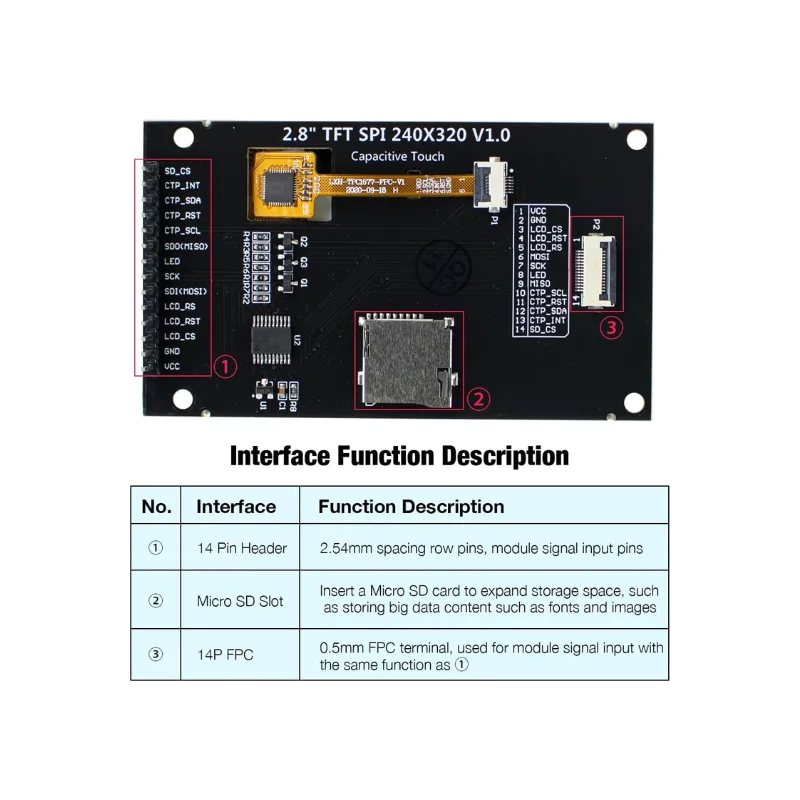

- The input supports 2.54 pin header interface and FPC extension interface, and comes with a micro TF card slot for easy storage expansion.
- Provide rich sample learning programs (ESP32/STM32/Arduino R3&Mega2560/C51/CH32), provide underlying driver technical support, and update the information online.
€11,90

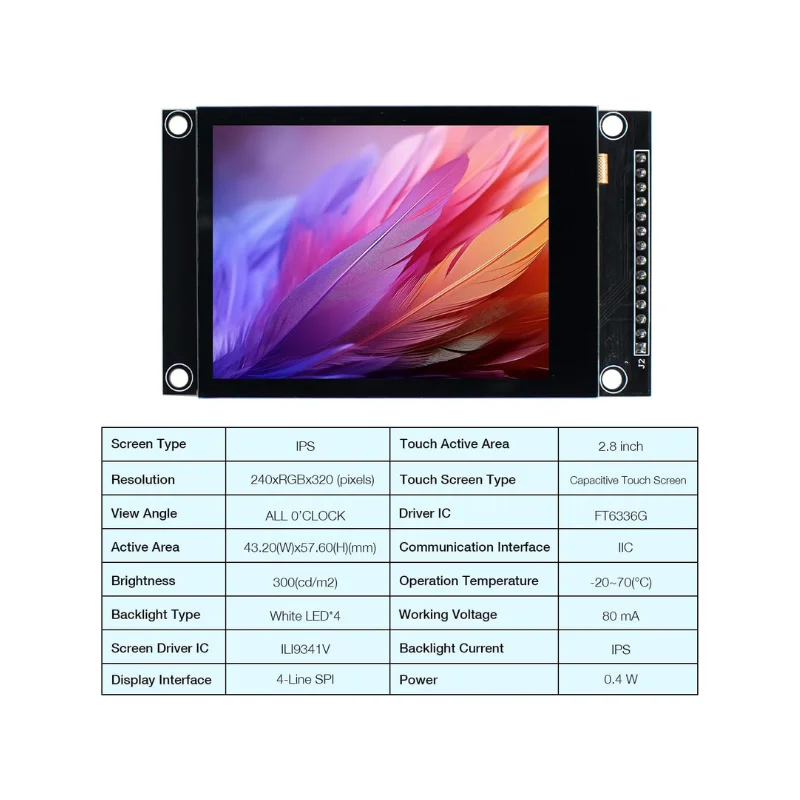

Screen Size：2.8 inch
Screen Type：IPS
Resolution：240xRGBx320 (pixels)
Active Area (AA area)：43.20(W)x57.60(H)(mm)
Number of Colors(Max)：262K
Driver IC：ILI9341V
Display Interface：4-Line SPI
Pixel Size：0.153(H)x0.153(V)(mm)
View Angle：ALL 0’CLOCK
Brightness(TYP)：280(cd/m2)
Backlight Type：White LED*6
Operation Temperature：-10~50(℃)
Storage Temperature：-20~60(℃)
LCD Touch Screen Parameters
Touch Active Area：2.8 inch
Touch Screen Type：Capacitive Touch Screen
Touch Screen Resolution：240×320(pixels)
Driver IC：FT6336G
Touch Screen Visual Area：43.60±0.15(W)x58.05±0.15(H)(mm)
Communication Interface：IIC
Operation Temperature：-20~70(℃)
Storage Temperature：-30~80(℃)
Electrical Parameters
Working Voltage：5.0 V
Backlight Current：80 mA
Power：0.4 W
Interface：14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Size Parameters：50.0(W)x86.0(H)x14.28(D)(mm)(including Pin Header)
Weight(including package)：67g
