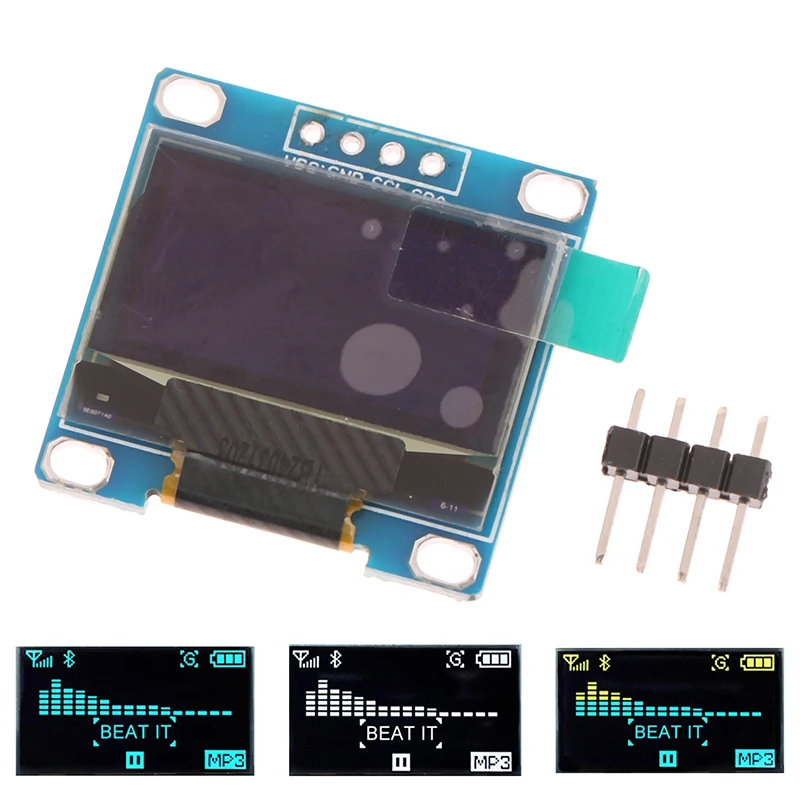

0.96″ inch IIC Serial OLED
SKU: OLED-009
- Compatibility: blue and yellow, 0.96 inch OLED module is designed to display graphic information and text information directly on your microcontroller project; Compatible with Mega, Raspberry pi, 51 MCU, STIM 32, etc.
- Product information: resolution is 128 x 64; View angle is more than 160 degrees; Supporting voltage is from 3.3V to 5V DC; Power consumption during normal operation is 0.04W, full screen lit is 0.08W
- Driver and communication: embedded driver IC; Communication is IIC/ I2C interface, only needs 2 I/O ports; Compatible with MMDVM, Pi-Star, and compatible with Raspberry pi
- Self-luminous design: the OLED display module is self-luminous, so that no backlight is required; It features high contrast, bright and crisp dots, which is convenient for you to read tiny fonts
- Create fonts: there are no fonts embedded in the OLED controller, so users can use the font generation software to create the fonts
€2,01
Driver IC: SSD1315
High resolution: 128 * 64

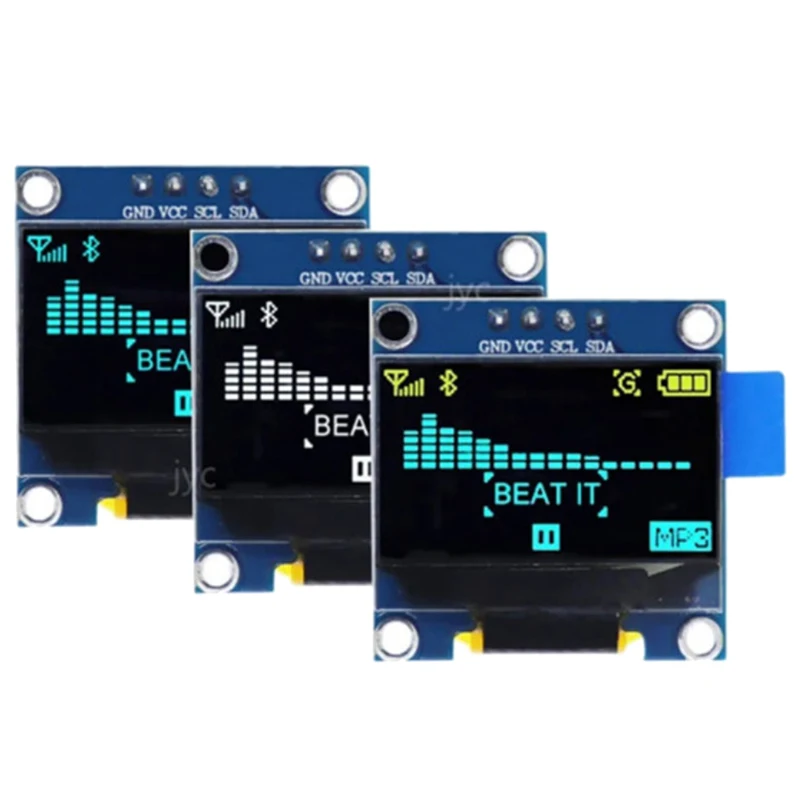

Character Colors: Blue, white, yellow blue dual color
Working Temperature: -40 ° ~ 85 °
Supported voltage: 3.3V/5.0V
Pins: 4 pins
Pin Definition: GND, VCC ,SCL, SDA
Interface type is IIC
With embedded driver/controller
Super high brightness and contrast are adjustable
128*64 LED display module for Arduino, supports many control chip.
Note:
Due to manual measurement, please allow an error of 1-3mm. Please ensure that you do not mind before bidding.
Due to the differences between different monitors, the images may not reflect the actual color of the item. Please refer to the actual image received. Thank you very much.
| Weight | 1 lbs |
|---|---|
| Color | White, Blue, Yellow-Blue |
