LILYGO T-A7670E R2 Wireless Module is a powerful, compact development board designed for Internet of Things (IoT) applications that require reliable 4G LTE communication along with Wi-Fi and Bluetooth support. By combining the ESP32-WROVER-E chip and the SIMCOM A7670E modem, this module is ideal for developers looking to build remote monitoring systems, smart trackers, and connected devices.

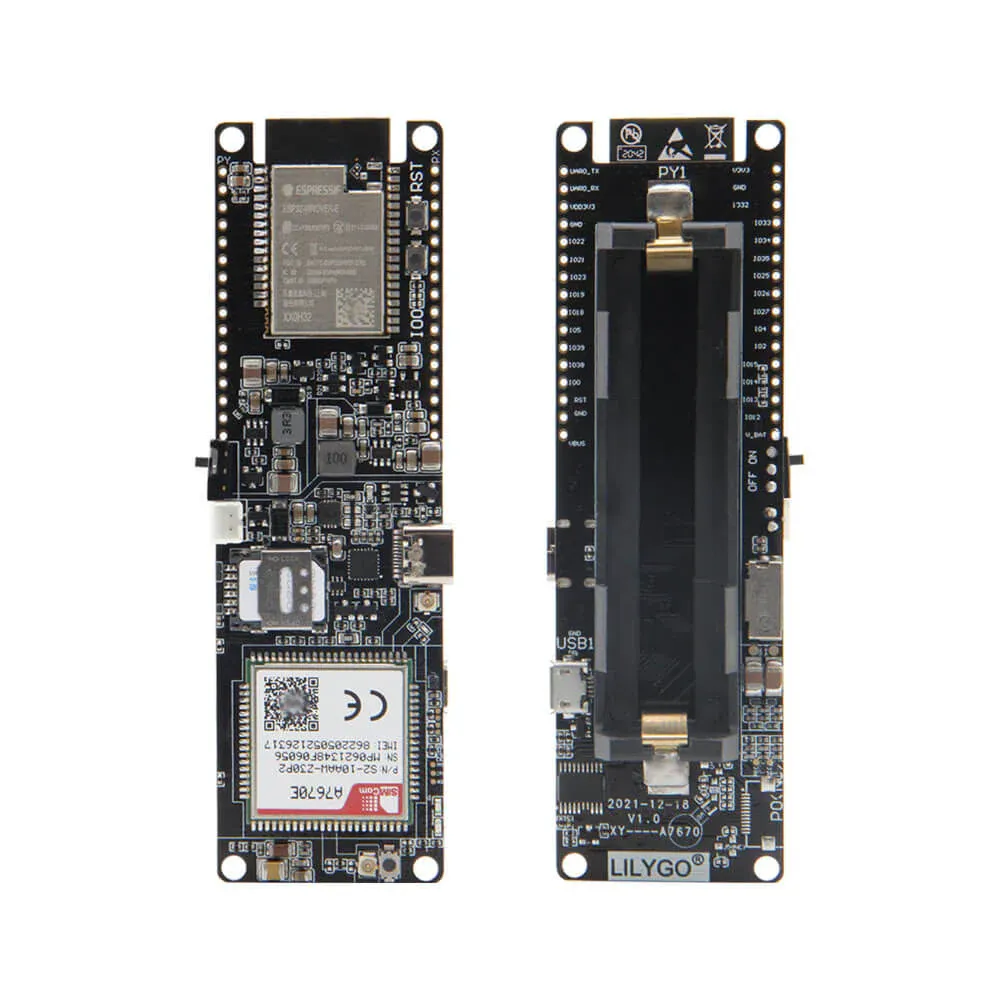

LILYGO T-A7670E R2 Wireless Module

LILYGO T-A7670E R2 Wireless Module

Let’s explore what this module is, where you can use it, and how to set it up and start building real-world applications.


What Is the LILYGO T-A7670E R2 Wireless Module?

The LILYGO T-A7670E R2 Wireless Module integrates the ESP32-WROVER-E microcontroller with a SIMCOM A7670E 4G LTE Cat1 modem, supporting GSM/GPRS fallback and GPS positioning. It also includes:
  • Nano SIM card slot
  • TF card slot (for local data storage)
  • LTE and GNSS antenna interfaces
  • USB Type-C for power and programming
  • Multiple GPIO pins for sensors and actuators
This board is suitable for developers who need a versatile wireless communication platform that supports multiple networks and integrates seamlessly with ESP32 development environments.


What Are the Main Features of the LILYGO T-A7670E R2?

  • 4G LTE Cat1 Support: Stable cellular data transmission in Asia and Europe
  • ESP32 Dual-Core Processor: With built-in Wi-Fi and Bluetooth v4.2 (BLE)
  • GNSS Support: Supports GPS, Beidou, GLONASS (GNSS antenna required)
  • USB Type-C Interface: For programming and power supply
  • Nano SIM and TF Card Slots: For network access and local storage
  • Low Power Consumption: Ideal for battery-powered IoT devices
  • Rich I/O Ports: Easily connect sensors, actuators, or external modules


Where Can You Use the LILYGO T-A7670E R2?

The LILYGO T-A7670E R2 is suitable for a wide range of IoT projects:
  • Vehicle and Asset Tracking: Use GPS and LTE to monitor locations in real time
  • Smart Agriculture: Transmit environmental sensor data from remote fields
  • Industrial Monitoring: Send equipment data to the cloud even in isolated areas
  • Smart Cities: Enable smart lighting, air quality monitoring, and parking sensors
  • Security Systems: Use 4G to ensure connectivity even when Wi-Fi is unavailable
  • Smart Homes: Add LTE backup to Wi-Fi-dependent devices for reliability


How Do You Set the LILYGO T-A7670E R2 Up?

Setting up the LILYGO T-A7670E R2 Wireless Module involves both hardware preparation and software configuration. Here’s a detailed guide based on official resources from LILYGO’s GitHub repository:

  1. Hardware Preparation

You’ll need:
  • LILYGO T-A7670E R2 Wireless Module
  • USB Type-C cable
  • Nano SIM card (with data plan)
  • LTE antenna (included or compatible)
  • GNSS antenna (for GPS functionality)
  • Computer (Windows, macOS, or Linux)
  • Optionally, a TF card for local data logging
Steps:
  1. Insert the Nano SIM card into the SIM slot.
  2. Connect the LTE antenna to the MAIN port and the GNSS antenna to the GNSS port (if required).
  3. Plug the board into your PC using the USB Type-C cable.
  4. (Optional) Insert a TF card into the slot next to the SIM card for additional storage.

  1. Install Required Tools and Libraries

  • Install CP210x USB to UART drivers if needed.
  • Add ESP32 board support to Arduino using:

					https://dl.espressif.com/dl/package_esp32_index.json
  • Set board type to ESP32 Wrover Module.
Clone or download the example projects from the official GitHub repository. Inside you’ll find working examples like:
  • examples/TinyGSM/TinyGSM_Client
  • examples/MQTT/MQTTClient
  • examples/GPS/TTGO-T-A7670-GPS

  1. Wiring and Pin Configuration

The board communicates with the A7670E modem using UART2. Here’s the typical pin mapping:

					#define MODEM_RXD 27
#define MODEM_TXD 26
#define MODEM_PWRKEY 4
#define MODEM_RST 5
#define MODEM_POWER_ON 23
A basic AT test example using Arduino:

					#include <HardwareSerial.h>

HardwareSerial SerialAT(1);

void setup() {
  Serial.begin(115200);
  SerialAT.begin(115200, SERIAL_8N1, MODEM_RXD, MODEM_TXD);
  delay(3000);
  SerialAT.println("AT");  // Send AT command to test
}

void loop() {
  if (SerialAT.available()) {
    Serial.write(SerialAT.read());
  }
}

  1. Using TinyGSM for LTE Connections

The board works well with the TinyGSM library for LTE data:

					#include <TinyGsmClient.h>
#include <SoftwareSerial.h>

TinyGsm modem(SerialAT);

void setup() {
  // Power on the modem
  pinMode(MODEM_POWER_ON, OUTPUT);
  digitalWrite(MODEM_POWER_ON, HIGH);

  SerialAT.begin(115200, SERIAL_8N1, MODEM_RXD, MODEM_TXD);
  delay(3000);

  modem.restart();
  modem.gprsConnect("yourAPN", "user", "pass");
}
More examples for MQTT, HTTPS, and GPS parsing can be found directly in the GitHub examples folder.

  1. Powering Your Project

The board supports multiple power options:
  • USB Type-C (5V)
  • External battery via VBAT or 5V pins
  • Sleep modes via ESP32 and modem AT commands for energy efficiency


Is It Beginner-Friendly?

Absolutely. The LILYGO T-A7670E R2 is designed with accessibility in mind:
  • Pre-soldered headers and labeled pins
  • USB Type-C simplifies power and programming
  • Active community and code support
  • Rich, officially maintained examples on GitHub
  • Documentation and wiki resources: LILYGO Wiki
Whether you are a beginner or an experienced developer, the board offers the flexibility and documentation you need to get started fast.


Why Choose LILYGO T-A7670E R2?

This module stands out thanks to its:
  • All-in-one connectivity: LTE, Wi-Fi, Bluetooth, GPS
  • Compact, efficient design
  • Low-power operation options
  • Reliable SIMCOM A7670E Cat1 modem
  • ESP32 dual-core performance
  • Open-source ecosystem with official support and examples
If your IoT project demands stability, connectivity, and flexibility, the LILYGO T-A7670E R2 Wireless Module is a robust choice.

The LILYGO T-A7670E R2 Wireless Module is a versatile, developer-friendly solution for modern IoT applications. Whether you’re creating smart trackers, remote sensing platforms, or industrial monitors, this board makes it easy to connect your devices to the cloud using both Wi-Fi and cellular networks.
With its built-in LTE and GPS features, it’s a smart investment for hobbyists, engineers, and IoT startups alike.


Ready to Start Building with the LILYGO T-A7670E R2?

Whether you’re prototyping a GPS tracker, building a smart agriculture device, or launching a connected industrial monitor, the LILYGO T-A7670E R2 Wireless Module offers the flexibility and power to bring your ideas to life. With built-in 4G LTE, Wi-Fi, Bluetooth, and GNSS support, it’s a one-stop solution for a wide range of IoT applications.
👉 Get yours now and start developing smarter, more connected devices today! 🔗 Buy the LILYGO T-A7670E R2 Wireless Module
